MICROWAVE-ASSISTED SYNTHESIS OF 1,3-DIMESITYLIMIDAZOLINIUM CHLORIDE
Submitted by Morgan Hans and Lionel Delaude1.
Checked by Somenath Chowdhury and Jonathan A. Ellman.
1. Procedure
A. N,N'-Dimesitylethylenediimine. A 500-mL, one-necked, round-bottomed flask equipped with a magnetic stirring bar and a stopper is charged with 2,4,6-trimethylaniline (40.56 g, 0.300 mol, 2.0 equiv) and isopropyl alcohol (150 mL) (Notes 1, 2). Glyoxal (21.76 g of a 40% aqueous solution, 0.150 mol, 1.0 equiv) is weighed in a 250-mL Erlenmeyer flask (Note 3) and further diluted with deionized water (50 mL) and isopropyl alcohol (50 mL) (Note 2). This colorless mixture is briefly swirled. It is then poured into the aniline solution. The resulting solution is stirred for 24 h at room temperature. A bright yellow precipitate appears within a few minutes and progressively builds up. After 24 h, the suspension is filtered through a Büchner funnel, and the precipitate is washed with deionized water (2 × 100 mL) (Note 4). It is spread out in a 20-cm diameter evaporating dish and dried in an oven at 40 °C under 30 mmHg vacuum until constant weight (Note 5) to afford 40.09 g (91%) of N,N'-dimesitylethylenediimine as a bright yellow solid (Note 6).
B. N,N'-Dimesitylethylenediamine Dihydrochloride. A 500-mL, two-necked, round-bottomed flask equipped with a magnetic stirring bar, a thermometer, and a solid addition funnel is charged with N,N'-dimesitylethylenediimine (36.55 g, 0.125 mol, 1.0 equiv) and tetrahydrofuran (300 mL) (Note 7). The bright yellow suspension is cooled to 0 °C internal temperature using an ice-water bath before sodium borohydride (18.92 g, 0.500 mol, 4.0 equiv) is added in one portion (Notes 8, 9). Next, concentrated hydrochloric acid (21 mL, 0.25 mol, 2.0 equiv) is added dropwise at a rate such that the internal temperature remains between 12-15 ºC, which took 40 min (Notes 10, 11). The resulting white suspension is further stirred for 30 min at 0 °C. It is then transferred into a 2-L, two-necked, round-bottomed flask before 1 L of cold 3 M aqueous hydrochloric acid is added dropwise over a 30 min period of time (Note 12). The cooling bath is removed, and the off-white suspension is stirred for 1 h at room temperature. It is then filtered through a Büchner funnel. The white precipitate is washed with deionized water (3 × 200 mL) (Note 13). It is spread out in a 20-cm diameter evaporating dish and dried in an oven at 40 °C under 30 mmHg vacuum until constant weight (Note 5) to afford 37.4 g (81%) of N,N'-dimesitylethylenediamine dihydrochloride as a white powder (Note 14).
C. 1,3-Dimesitylimidazolinium Chloride. Four 20-mL pressure vials each equipped with a magnetic stirring bar are individually charged with N,N'-dimesitylethylenediamine dihydrochloride (4.62 g, 0.0125 mol, 1.0 equiv) and triethyl orthoformate (6.25 mL, 0.0375 mol, 3.0 equiv) (Note 15). The mixtures are mixed with a spatula until a homogeneous thick white paste is obtained. The vials are closed with screw caps equipped with a pressure sensor and a glass inlet tube ended by a sapphire window containing an optical fiber temperature sensor. The reaction mixtures are heated for 5 min at 145 °C in a monomodal microwave reactor (Note 16). After cooling to room temperature, the resulting beige-yellow suspensions are combined in a 250-mL beaker placed in an ice bath and each reaction vessel is rinsed with diethyl ether (2 × 12.5 mL), which is also added to the beaker (Note 17). The beige suspension is filtered through a Büchner funnel. The white precipitate is washed with diethyl ether (3 × 50 mL) (Note 17). The white precipitate is further purified by dissolution into hot acetonitrile (50 mL) (Note 18). The solution is allowed to cool to room temperature and then diethyl ether is added (200 mL) (Note 17). The resulting pale yellow suspension is filtered through a Büchner funnel. The white precipitate is washed with diethyl ether (50 mL) (Note 17). The precipitate is spread out in a 20-cm diameter evaporating dish and dried in an oven at 40 °C under 30 mmHg vacuum until constant weight (Note 5) to afford 13.5 g (79%) of 1,3-dimesitylimidazolinium chloride as white microcrystals (Note 19).
2. Notes
1. 2,4,6-Trimethylaniline (≥98%) was purchased from Aldrich and used as received.
2. Reagent grade isopropyl alcohol was obtained from EMD Chemical Inc. and used without any further purification.
3. Glyoxal (ca. 40% aqueous solution) was purchased from Aldrich and stored in a refrigerator at + 6 °C.
4. A second crop of yellow precipitate formed in the filtrate upon standing at room temperature for a few hours. It was filtered through a Büchner funnel and washed with deionized water (2 × 50 mL) to afford ca. 0.75 g of N,N'-dimesitylethylenediimine (mp 156-157 °C) that was added to the first crop. Upon resting overnight under the fume cupboard, the filtrate afforded a third crop of dark yellow solid (ca. 2.3 g, mp 149-152 °C) that was discarded.
5. A vacuum oven (NAPCO, Model 5831 from Cascade TEK, Oregon) was used at 40 ºC under 30 mmHg vacuum. The submitters dried the product in open air under an IR lamp.
6. Spectral and analytical data for N,N'-dimesitylethylenediimine are as follows: mp 157 °C; IR (ATR) 2911, 1723, 1615, 1475, 1373, 1201, 1139, 1031, 1012, 928, 850 cm-1; 1H NMR pdf (400 MHz, CDCl3) δ: 2.16 (s, 12 H), 2.29 (s, 6 H), 6.91 (s, 4 H), 8.10 (s, 2 H); 13C NMR pdf (100 MHz, CDCl3) δ: 18.3, 20.8, 126.6, 129.0, 134.3, 147.5, 163.5; HRMS (ESI) m/z calcd. for C20H25N2+ ([M+H]+) 293.2012; found 293.2018; Anal. calcd for C20H24N2: C, 82.15; H, 8.27; N, 9.58; found: C, 81.98; H, 8.07; N, 9.54.
7. Tetrahydrofuran (99+%, stabilized) was purchased from Acros and used without any further purification.
8. Sodium borohydride (powder, 98%) was purchased from Aldrich and used as received.
9. The submitters note that the use of a smaller excess of sodium borohydride compared to N,N'-dimesitylethylenediimine led to significantly lower yields of N,N'-dimesitylethylenediamine dihydrochloride tainted with colored impurities.
10. Hydrochloric acid for analysis (ca. 37% solution in water) was purchased from Acros and used as received.
11. A strongly exothermic reaction takes place. During the addition of HCl, the reaction temperature slowly increases to 15 ºC within 5 min and then is maintained between 12-15 ºC by controlling the addition rate.
12. The 3 M hydrochloric acid was cooled in an ice bath to 0 ºC. The cold hydrochloric acid solution was then transferred to the dropping funnel in 50 mL batches and was added dropwise at such a rate that the temperature is maintained between 8-10 ºC. During the addition, hydrogen is evolved and frothing occurs.
13. A second crop of white precipitate formed in the filtrate upon standing at room temperature for a few hours. It was filtered through a Büchner funnel and washed with deionized water (2 × 50 mL) to afford ca. 0.6 g of N,N'-dimesitylethylenediamine dihydrochoride (mp 224-225 °C (dec)) that was added to the first crop.
14. Spectral and analytical data for N,N'-dimesitylethylenediamine dihydrochloride are as follows: mp 224-225 °C (dec); IR (ATR) 3424, 3254, 2961, 2917, 2660, 2470, 2355, 1668, 1607, 1563, 1470, 1388, 1304, 1219, 1200, 1190, 1136, 1034, 980, 900, 875, 851 cm-1; 1H NMR pdf (400 MHz, DMSO-d6) δ: 2.25 (s, 6 H), 2.48 (s, 12 H), 3.71 (s, 4 H), 6.99 (s, 4 H); 13C NMR pdf (100 MHz, DMSO-d6) δ: 17.9, 20.1, 45.8, 130.1, 131.4, 132.5, 137.0; HRMS (ESI) m/z calcd. for C20H29N2+ ([M-H-2Cl]+) 297.2325; found 297.2331; Anal. calcd. for C20H30Cl2N2: C, 65.03; H, 8.19; N, 7.58; found: C, 65.94; H, 8.69; N, 7.63.
15. Triethyl orthoformate (98%) was purchased from Aldrich and used as received.
16. An INITIATOR @Biotage, Serial No. 10662-17U Microwave reactor was employed. The maximum microwave power was set at 120 W and the pressure limit at 250 psi (17 bar). No ramp and no simultaneous cooling were applied. The submitters performed the microwave reaction in a single 80-mL pressure vial equipped with a magnetic stirring bar using a Discover(r) LabMate instrument (CEM Corp., Matthews, NC). The maximum microwave power was set at 120 W and the pressure limit at 250 psi (17 bar). No ramp and no simultaneous cooling were applied.
17. Reagent grade diethyl ether was obtained from Fisher Chemical and used without any further purification.
18. HPLC grade acetonitrile was obtained from EMD Chemicals Inc. and used without any further purification.
19. Spectral and analytical data for 1,3-dimesitylimidazolinium chloride: mp 279-281 °C (dec); IR (ATR) 3642, 3348, 3213, 2848, 1623, 1484, 1448, 1383, 1274, 1216, 1038, 869, 846 cm-1; 1H NMR pdf (400 MHz, CDCl3) δ: 2.24 (s, 6 H), 2.32 (s, 12 H), 4.47 (s, 4 H), 6.86 (s, 4 H), 9.69 (s, 1 H); 13C NMR pdf (100 MHz, CDCl3) δ: 17.9, 20.9, 51.7, 129.7, 130.3, 134.9, 139.9, 160.1; HRMS (ESI) m/z calcd. for C21H27N2+ ([M-Cl]+) 307.2169; found 307.2177; Anal. calcd. for C21H27ClN2: C, 73.56; H, 7.94; N, 8.17; found: C, 71.68; H, 8.19; N, 7.92.
Handling and Disposal of Hazardous Chemicals
The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
Imidazolinium salts are the most common synthetic precursors for generating saturated N-heterocyclic carbenes (NHCs), a new class of stable divalent carbon species that has already afforded a wealth of nucleophilic reagents, organocatalysts, and organometallic complexes, including optically active compounds.2 In particular, deprotonation of 1,3-dimesitylimidazolinium chloride with a non-nucleophilic strong base gives direct access to the important NHC nicknamed SIMes or H2IMes that serves as an ancillary ligand in the second generation Grubbs and Hoveyda-Grubbs metathesis catalysts, among other uses.3
The preparation of imidazolinium salts is usually achieved via condensation of an N,N'-disubstituted ethane-1,2-diamine and an inorganic ammonium salt with a triethyl orthoester in the presence of a catalytic amount of formic acid.4 Alternatively, a suitable ethane-1,2-diammonium salt may be used as a single starting material for the heterocyclic cation and its counteranion. In all cases, the orthoester serves both as a solvent and a reagent. Numerous variations of this experimental procedure have been reported in the literature.5 All of these reactions require prolonged heating under reflux conditions in order to reach satisfactory conversions. Thus, reaction times ranging between a few hours and a few days are commonly encountered, unless ethanol is distilled off the reaction medium to drive the cyclization more rapidly to completion.6
Microwave-assisted organic synthesis (MAOS) has received increasing attention in recent years as a valuable technique for accelerating chemical reactions.7 The development of safe and reliable mono- or multimodal microwave reactors specifically designed for chemical applications has significantly reinvigorated time-honored laboratory practices. Condensation reactions leading to heterocyclic products are particularly effective under microwave irradiation conditions.8
In 2006, we disclosed a very simple and efficient procedure for the microwave-assisted synthesis of 1,3-diarylimidazolinium chlorides by cyclocondensation of N,N'-diarylethane-1,2-diamine dihydrochlorides with triethyl orthoformate (Table 1).9 The methodology was further extended to prepare a wide range of imidazolinium and tetrahydropyrimidinium salts bearing diverse aromatic and aliphatic substituents on the nitrogen and carbon atoms of the cyclic amidinium function. In these experiments, recourse to an amine free base together with an inorganic ammonium salt as starting materials provided an easy way to vary the nature of the counterion (Table 2).10 Indeed, bulky polyatomic anions such as BF4-, PF6-, TfO-, or Tf2N- could be introduced directly using readily available ammonium salts, thereby eliminating the need for subsequent ion exchange.

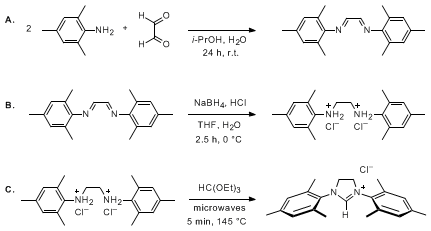

The procedure described above is a preparative-scale application of our methodology starting from simple, commercially available reagents. Prior to the microwave-assisted cyclization, it involves the formation of N,N'-dimesitylethane-1,2-diamine dihydrochloride via condensation of glyoxal with two equivalents of mesitylamine, followed by reduction of the intermediate Schiff base with sodium borohydride under acidic conditions. All three steps proceed readily under normal atmosphere. Laboratory grade solvents and reagents taken straight from the bottles do not require any additional purification. The two intermediates and the final product are isolated in high yield and purity by simple filtration and washing and may be used without any further purification for most applications.
Table 1. Microwave-assisted synthesis of 1,3-diarylimidazolinium chlorides.9
Table 1. Microwave-assisted synthesis of 1,3-diarylimidazolinium chlorides.

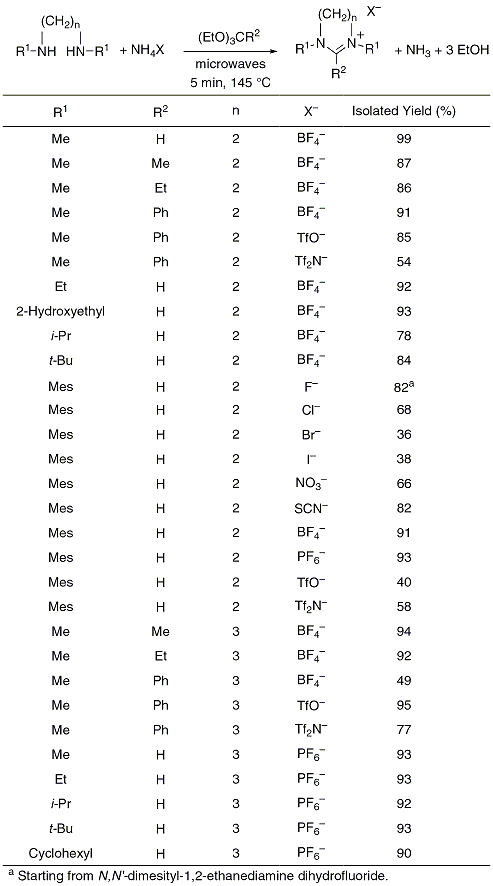

Table 2. Microwave-assisted synthesis of cyclic amidinium salts.10
Table 2. Microwave-assisted synthesis of cyclic amidinium salts.
References and Notes
  1. Department of Chemistry, University of Liège, Sart-Tilman par 4000 Liège, Belgium (email: ).
  2. (a) Carbene Chemistry: From Fleeting Intermediates to Powerful Reagents; Bertrand, G., Ed.; Marcel Dekker: New York, 2002. (b) N-Heterocyclic Carbenes in Synthesis; Nolan, S. P., Ed.; Wiley-VCH: Weinheim, 2006. (c) N-Heterocyclic Carbenes in Transition Metal Catalysis; Topics in Organometallic Chemistry, Vol. 21; Glorius, F., Ed.; Springer: Berlin, 2007.
  3. (a) Scholl, M.; Ding, S.; Lee, C. W.; Grubbs, R. H. Org. Lett. 1999, 1, 953-956. (b) Garber, S. B.; Kingsbury, J. S.; Gray, B. L.; Hoveyda, A. H. J. Am. Chem. Soc. 2000, 122, 8168-8179.
  4. Saba, S.; Brescia, A.; Kaloustian, M. S. Tetrahedron Lett. 1991, 32, 5031-5034.
  5. See, for example: (a) Arduengo, A. J., III; Krafczyk, R.; Schmutzler, R.; Craig, H. A.; Goerlich, J. R.; Marshall, W. J.; Unverzagt, M. Tetrahedron 1999, 55, 14523-14534. (b) Delaude, L.; Szypa, M.; Demonceau, A.; Noels, A. F. Adv. Synth. Catal. 2002, 344, 749-759. (c) Ma, Y.; Song, C.; Jiang, W.; Wu, Q.; Wang, Y.; Liu, X.; Andrus, M. B. Org. Lett. 2003, 5, 3317-3319. (d) Funk, T. W.; Berlin, J. M.; Grubbs, R. H. J. Am. Chem. Soc. 2006, 128, 1840-1846.
  6. See, for example: (a) Alder, R. W.; Blake, M. E.; Bufali, S.; Butts, C. P.; Orpen, A. G.; Schütz, J.; Williams, S. J. J. Chem. Soc., Perkin Trans. 1 2001, 1586-1593. (b) Van Veldhuizen, J. J.; Gillingham, D. G.; Garber, S. B.; Kataoka, O.; Hoveyda, A. H. J. Am. Chem. Soc. 2003, 125, 12502-12508.
  7. (a) Microwaves in Organic and Medicinal Chemistry; Kappe, C. O.; Stadler, A., Eds.; Methods and Principles in Medicinal Chemistry, Vol. 25; Wiley-VCH: Weinheim, 2005. (b) Microwave Assisted Organic Synthesis; Tierney, J. P.; Lidström, P., Eds.; Blackwell: Oxford, 2005. (c) Microwaves in Organic Synthesis; 2nd ed.; Loupy, A., Ed.; Wiley-VCH: Weinheim, 2006.
  8. For a review, see: Xu, Y.; Guo, Q.-X. Heterocycles 2004, 63, 903-974.
  9. Aidouni, A.; Demonceau, A.; Delaude, L. Synlett 2006, 493-495.
  10. Aidouni, A.; Bendahou, S.; Demonceau, A.; Delaude, L. J. Comb. Chem. 2008, 10, 886-892.

Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)

Mesitylamine: Benzenamine, 2,4,6-trimethyl-; (88-05-1)

Glyoxal: Ethanedial; (107-22-2)

N,N'-Dimesitylethylenediimine: Benzenamine, N,N'-1,2-ethanediylidenebis[2,4,6-trimethyl-; (56222-36-7)

Sodium borohydride: Borate(1-), tetrahydro-, sodium; (16940-66-2)

N,N'-dimesitylethylenediamine dihydrochloride: 1,2-Ethanediamine, N,N'-bis(2,4,6-trimethylphenyl)-, dihydrochloride; (258278-23-8)

Triethyl orthoformate: Ethane, 1,1',1''-[methylidynetris(oxy)]tris- ; (122-51-0)

1,3-Dimesitylimidazolinium Chloride: 1H-Imidazolium, 4,5-dihydro-1,3-bis(2,4,6-trimethylphenyl)-, chloride (1:1); (173035-10-4)

Lionel Delaude was born in 1966 in Huy, Belgium. He received his Ph.D. from the University of Liège, Belgium under the supervision of Pierre Laszlo. After postdoctoral research at the University of Ottawa, Canada with Howard Alper and at Columbia University in the City of New York with Ronald Breslow, he returned to Liège where he is presently appointed as a Senior Lecturer within the Center for Education and Research on Macromolecules (CERM). His current research interests focus on the design of new ruthenium-N-heterocyclic carbene complexes for catalytic applications.
Morgan Hans was born in 1985 in Malmedy, Belgium. He received his M.Sc. degree in chemistry in 2009 from the University of Liège and is currently pursuing a Ph.D. in organometallic chemistry at the University of Liège under the supervision of Lionel Delaude, working on the synthesis and catalytic applications of new zwitterions derived from N-heterocyclic carbenes.
Somenath Chowdhury grew up in Majirdanga, India. He obtained his M.Sc. degree in Chemistry from the Indian Institute of Technology, Kharagpur, India and his Ph.D. degree from the University of Saskatchewan, Canada. In his Ph.D. research he worked on the design and synthesis of peptide beta sheet mimics under the supervision of Professor Heinz-Bernhard Kraatz. After finishing his Ph.D. he carried out research with Professor Giuseppe Melacini's group at McMaster University, Canada for one and a half years where he studied protein ligand interactions by NMR spectroscopy. He then joined Professor Jonathan Ellman's lab at the University of California, Berkeley in Sept 2008 as an NSERC postdoctoral fellow. His current research focuses on developing small molecule protease inhibitors.
