Org. Synth. 2010, 87, 350
DOI: 10.15227/orgsyn.087.0350
PREPARATION OF CHIRAL AND ACHIRAL TRIAZOLIUM SALTS: CARBENE PRECURSORS WITH DEMONSTRATED SYNTHETIC UTILITY
Submitted by Harit U. Vora, Stephen P. Lathrop, Nathan T. Reynolds, Mark S. Kerr, Javier Read de Alaniz, and Tomislav Rovis
1.
Checked by Spandan Chennamadhavuni and Huw M. L. Davies.
1. Procedure

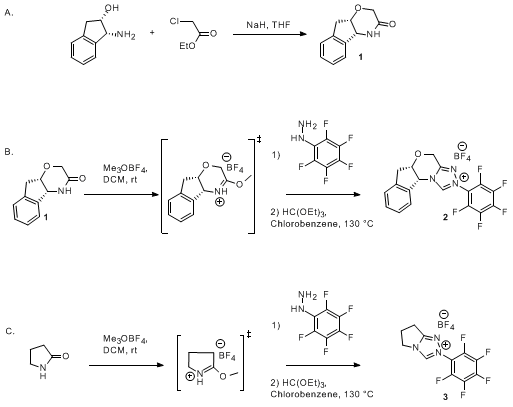

A. 4,4a,9,9a-Tetrahydro-1-oxa-4-aza-fluoren-3-one (1). A 2.0 L, single-necked, round-bottom flask fitted with a magnetic stir bar (1 1/4 inch × 5/8 inch egg shaped), and a rubber septum with a needle inlet is flame dried and then cooled under an argon atmosphere. The septum is removed and the flask is charged with sodium hydride (3.48 g, 60% in mineral oil, 87.15 mmol, 1.3 equiv) (Note 1) via a powder funnel, followed by n-pentane (300
mL) (Note 2). The septum is then replaced and the heterogeneous mixture is subjected to an argon atmosphere by means of a needle in the septum followed by agitation for 20 min. Agitation is stopped and the sodium hydride is allowed to settle out of solution for 30 min. n-Pentane is removed via cannula by increasing the positive pressure of argon in the flask. Residual mineral oil present in sodium hydride is removed by washing with an additional 100 mL of pentane as above. The combined pentane solutions containing residual sodium hydride are quenched with isopropanol (Note 3). The septum is briefly removed to add anhydrous tetrahydrofuran (1.0 L) (Note 4) by means of an addition funnel followed by replacement of the septum and refilling the reaction flask with argon. The reaction flask is placed in a -10 °C ice-brine bath (Note 5) with agitation and allowed to cool for 30 min. The septum is then replaced with a powder funnel and (1R,2S)-(-)-cis-1-amino-2-indanol (5 g, 33.52 mmol) (Note 6) is added followed by refilling of the reaction flask with argon. Within 10 min, the reaction mixture turns heterogeneous and the color changes to light purple. The septum is then replaced with a powder funnel and a further batch of (1R,2S)-(-)-cis-1-amino-2-indanol (5 g, 33.52 mmol) (Note 6) is added followed by refilling of the reaction flask with argon. The flask is then fitted with a reflux condenser and the stirred reaction mixture is heated in a 70 °C oil bath for 40 min under an argon atmosphere. The solution is then placed into a -10 °C ice-brine bath and allowed to cool for 1 h while stirring. Ethyl chloroacetate (8.38 g, 7.32 mL, 68.37 mmol, 1.02 equiv) (Note 7) is added via syringe over 5 min. The reaction flask is removed from the ice-brine bath and the mixture is stirred for 30 min at room temperature. The solution is then placed in an oil bath heated to 70 °C and stirred for 1 h under argon. After cooling to room temperature, brine (30
mL) is slowly added to the reaction flask to quench the reaction, and then THF is removed under reduced pressure using a rotarory evaporator. The homogeneous deep purple reaction mixture is then poured into a 2.0-L separatory funnel and brine (200
mL) is added. The reaction mixture is extracted using ethyl acetate (2 × 200 mL) (Note 8). The combined organic layers are then dried using anhydrous MgSO4 (50 g) (Note 9) followed by vacuum filtration through a coarse fritted funnel. The resultant purple solution is transferred into a 1.0-L round-bottomed flask in approx. 500 mL portions and concentrated in vacuo to dryness. To the 1.0-L round bottom flask containing the crude light brown solid is added a stir bar and hexanes (300
mL) (Note 10). The sides of the round-bottomed flask are scraped with a metal spatula to ensure that all of the crude solid material rests at the bottom of the flask. The flask is fitted with a reflux condenser left open to the atmosphere and the heterogeneous mixture is stirred vigorously in an oil bath heated to 70 °C for a period of 2 h. After cooling to room temperature, vacuum filtration affords an off-white solid which is transferred into a 100-mL round-bottomed flask by means of a powder funnel and dried under vacuum (2 mmHg) in an oil bath heated to 70 °C for 1 h, affording 10.21-10.95 g (80-86%) of 1 (Note 11).
B. 2-Pentafluorophenyl-6,10b-dihydro-4H,5aH-5-oxa-3,10c-diaza-2-azonia-cyclopenta[c]fluorene; tetrafluoroborate (2). To a flame-dried 1.0-L single-necked, round-bottomed flask with magnetic stir bar (1 1/4 inch × 5/8 inch egg shaped) is added morpholinone 1 (10.00 g, 52.85 mmol, 1.0 equiv) by means of a powder funnel. The flask is then evacuated and back-filled with argon. Methylene chloride (300
mL) (Note 12) and trimethyloxonium tetrafluoroborate (7.82 g, 52.85 mmol, 1.0 equiv) (Note 13) are then added via powder funnel and the flask is fitted with a septum and a needle connected to an argon line. The heterogeneous mixture is stirred at room temperature until the reaction is homogeneous (Note 14). Pentafluorophenylhydrazine (10.47 g, 52.85 mmol, 1.0 equiv) (Note 15) is added in a single portion by means of a powder funnel followed by replacement of the powder funnel with a septum and a needle connected to an argon line, and then the reaction mixture is stirred for 4 h (Note 16). The magnetic stir bar (Note 17) is removed followed by removal of the solvent in vacuo. The 1.0-L flask is then placed in an oil bath heated to 100 °C for 1 h under vacuum (2 mmHg). A magnetic stir bar, chlorobenzene (300
mL) (Note 18) and triethyl orthoformate (19.58 g, 21.97 mL, 132.13 mmol, 2.5 equiv) (Note 19) are then added using a syringe, and the flask is fitted with a reflux condenser, placed in an oil bath heated to 130 °C and stirred for 24 h open to the atmosphere. Triethyl orthoformate (19.58 g, 21.97 mL, 132.13 mmol, 2.5 equiv) (Note 18) is then added via syringe followed by continued agitation for 24 h. A third portion of triethyl orthoformate (19.58 g, 21.97 mL, 132.13 mmol, 2.5 equiv) (Note 19) is added via syringe followed by continued agitation for 24 h. After removal of the reaction flask from the oil bath and cooling to room temperature, the solution is added to a 1.0-L round-bottomed flask containing toluene (300
mL) (Note 20) that is agitated with a magnetic stir bar. The reaction flask is then rinsed with toluene (50
mL) (Note 20) followed by addition of the heterogeneous mixture to the 1-L flask containing the crude product. The slurry is stirred for 10 min followed by vacuum filtration. The filtrate is rinsed with toluene (200
mL) (Note 20) and hexane (200
mL) (Note 10). The solid is then transferred to a 125-mL Erlenmeyer flask containing a stir bar by means of a powder funnel, triturated with ethyl acetate (20
mL) (Note 8) and methanol (5
mL) (Note 21) and stirred vigorously for 30 min. The slurry is then filtered through a medium frit funnel and the filter cake is washed with cold ethyl acetate (15
mL) (Note 8) via a glass pipette to yield 2 as an off-white solid. The off-white solid is transferred to a 100-mL round-bottomed flask by means of a powder funnel, placed in an oil bath heated to 100 °C and subjected to vacuum (2 mmHg) for 1 h, affording 15.06-15.79 g (61-64%) of 2 (Note 22).
C. 2-Pentafluorophenyl-6,7-dihydro-5H-pyrrolo[2,1-c][1,2,4]triazol-2-ium; tetrafluoroborate (3). Into a flame-dried 1.0-L flask equipped with a magnetic stir bar is added 2-pyrrolidinone (5.00 g, 58.75 mmol, 1.0 equiv) (Note 23). The flask is then evacuated and back-filled with argon. Methylene chloride (300
mL) (Note 12) and trimethyloxonium tetrafluoroborate (8.69 g, 58.75 mmol, 1.0 equiv) (Note 13) are added by means of a powder funnel and the flask is then fitted with a septum and a needle connected to an argon line. The heterogeneous mixture is stirred at room temperature until the solution is homogeneous (Note 14). Pentafluorophenylhydrazine (11.64 g, 58.75 mmol, 1.0 equiv) (Note 15) is added in a single portion by means of a powder funnel followed by replacement of the powder funnel with a septum and a needle connected to an argon line. The reaction mixture is stirred for 4 h (Note 16). The magnetic stir bar is removed (Note 17) followed by removal of the solvent in vacuo. The 1.0-L flask is then placed in an oil bath heated to 100 °C for 1 h under vacuum (2 mmHg). A magnetic stirring bar, chlorobenzene (300
mL) (Note 18) and triethyl orthoformate (17.41 g, 19.54 mL, 117.5 mmol, 2.0 equiv) (Note 19) are then added via syringe and the flask is fitted with a reflux condenser, placed in an oil bath heated to 130 °C and stirred for 24 h open to the atmosphere. Triethyl orthoformate (17.41 g, 19.54 mL, 117.5 mmol, 2.0 equiv) (Note 19) is then added via syringe followed by continued agitation for 24 h. After removal of the reaction vessel from the oil bath and cooling to room temperature, the reaction mixture is added to a 1.0-L round-bottomed flask containing toluene (300
mL) (Note 20) that is agitated with a magnetic stir bar for 1 h. The reaction flask is then rinsed with toluene (50
mL) (Note 20) followed by addition of the heterogeneous mixture to the 1-L round-bottomed flask containing the crude product. The slurry is stirred for 10 min followed by vacuum filtration. The filtrate is rinsed with toluene (200
mL) (Note 20) and hexanes (200
mL) (Note 10). The crude brown solid is then transferred to a 125-mL Erlenmeyer flask containing a magnetic stir bar by means of a powder funnel. The solid is triturated with ethyl acetate (20
mL) (Note 8) and methanol (3
mL) (Note 20) and stirred vigorously for 30 min. The heterogeneous mixture is then filtered through a medium fritted funnel under vacuum (120 mmHg). The filter cake is then washed with cold ethyl acetate (15
mL) via a glass pipette to yield 3 (15.91-16.13 g) as an off-white powder. The off-white solid is transferred to a 100-mL round-bottomed flask by means of a powder funnel, placed in an oil bath heated to 100 °C and subjected to vacuum (2 mmHg) for 1 h, affording 15.91-16.13 g (74-76%) of 3(Note 24).
2. Notes
1.
Sodium hydride (60% dispersion in mineral oil) was purchased from Aldrich. It was determined that removal of the mineral oil in the reaction resulted in higher yields of the desired product.
2.
Pentane (99.0%) was purchased from Fisher Scientific and used as received.
3.
Isopropanol was purchased from Aldrich Chemical Co., and used without further purification.
4.
THF (HPLC grade, H
2O = 0.003%) was purchased from Fisher Scientific Company and purified by pressure filtration under argon through activated alumina. The checkers found that the reaction gave similar results with freshly distilled THF over sodium benzophenone ketyl.
5.
It was observed that cooling the reaction with an ice-brine bath resulted in an increase in chemoselectivity for the
N-acylation product to give a higher yield of the desired regioisomer. It is crucial to maintain the reaction temperature between -10 °C and -15 °C in order to obtain a single regioisomer of the product. The checkers monitored the internal temperature of the reaction mixture using a digital thermometer.
6.
(1
R,2
S)-(+)-
cis-1-Amino-2-indanol (99%) was purchased from Aldrich and used without further purification.
7.
Ethyl chloroacetate (99%) was purchased from Aldrich and used without further purification.
8.
Ethyl acetate (99.9%) was purchased from Fischer Scientific and used without further purification.
9.
Anhydrous magnesium sulfate was purchased from Fischer Scientific.
10.
Hexanes (HPLC grade, H
2O = 0.0005%) was purchased from Aldrich and used as received.
11.
The spectral data for 4,4a,9,9a-tetrahydro-1-oxa-4-aza-fluoren-3-one (
1)
are as follows: R
f = 0.18 (EtOAc); Mp 180-183 °C (dec.); [α]
D23 −17.3 (
c 1.08, MeOH); IR (neat) 3179, 3050, 2910, 1681, 1646, 1484, 1417 cm
-1;
1H NMR
pdf (400 MHz, acetone-d
6) δ: 2.97 (d,
J = 16.8 Hz, 1 H), 3.23 (dd,
J = 16.6, 4.9 Hz, 1 H), 3.89 (d,
J = 16.2 Hz, 1 H), 4.05 (d,
J = 16.2 Hz, 1 H), 4.57 (t,
J = 4.6 Hz, 1 H), 4.82 (t,
J = 4.0 Hz, 1 H), 7.23-7.29 (m, 3 H), 7.46-7.49 (m, 1 H), 8.21 (br s, 1 H);
13C NMR
pdf (101 MHz, acetone-d
6) δ: 38.2, 59.4, 67.1, 77.1, 124.7, 125.7, 127.6, 128.4, 140.8, 143.1, 168.5; HRMS (APCI+)
m/z calcd. for C
11H
12NO
2 (M
+) 190.0863; found 190.0862; Anal. calcd. for C
11H
11NO
2: C, 69.83; H, 5.86; N, 7.40; found: C, 69.68; H, 5.83; N, 7.33.
12.
Methylene chloride (99.9%) was purchased from Fischer Scientific and purified by pressure filtration under argon through activated alumina. A Karl-Fisher Titrator was used to determine the water content in methylene chloride (<20 ppm/mL).
13.
Trimethyloxonium tetrafluoroborate (95%) was purchased from Aldrich Chemical Co. The bottles were stored in the refrigerator at -15 °C and a freshly opened bottle was used for each reaction. Direct contact of trimethyloxonium tetrafluoroborate with skin must be avoided because of its caustic nature and alkylating properties. It is absolutely critical to add only one equivalent of trimethyloxonium tetrafluoroborate. Excess of this reagent will result in lower yields and the product may not precipitate out. The checker also found that it is essential to add trimethyloxonium tetrafluoroborate under an argon atmosphere because of its highly hygroscopic nature.
14.
Upon complete dissolution of the trimethyloxonium tetrafluoroborate an aliquot is removed from the reaction vessel and concentrated in vacuo. The oil is then dissolved in acetone-d
6 and
1H NMR is used to verify the consumption of morpholinone. It usually takes 1-2 h for the reaction mixture to turn completely homogeneous.
15.
Pentafluorophenylhydrazine (97%) was purchased from Aldrich Chemical Co. and used without further purification.
16.
Disappearance of activated amidate (typically ~4 h) could also be observed by measuring the
1H NMR of an aliquot.
17.
The magnetic stir bar was removed, because otherwise it will stick firmly to the bottom of the flask and will not stir during the next sequence of the procedure.
18.
Chlorobenzene (99%) was purchased from Aldrich Chemical Co. and used without further purification.
19.
Triethylorthoformate (98%) was purchased from Acros Organics, and used without further purification.
20.
Toluene (99.9%) reagent grade was purchased from Fisher Scientific and used without further purification.
21.
Methanol (99.9%) was purchased from Fischer Scientific and used without further purification.
22.
The spectral data for 2-pentafluorophenyl-6,10b-dihydro-4
H,5a
H-5-oxa-3,10c-diaza-2-azoniacyclopenta[
c]fluorine, tetrafluoroborate (
2) are as follows: R
f = 0.22 (3:1; CH
2Cl
2:acetone); Mp 223-226 °C; [α]
D23 -130.80 (
c 1.28, MeCN); IR(neat) 3147, 3106, 3028, 2967, 1595, 1530, 1517, 1487, 1461, 1056, 1046, 998 cm
-1;
1H NMR
pdf (400 MHz, acetone-d
6) δ: 3.28 (d,
J = 17.2 Hz, 1 H), 3.55 (dd,
J = 17.1, 4.9 Hz, 1 H), 5.19 (t,
J = 4.5 Hz, 1 H), 5.25 (d,
J = 16.4 Hz, 1 H), 5.39 (d,
J = 16.4 Hz, 1 H), 6.33 (d,
J = 4.0 Hz, 1 H), 7.34 (t,
J = 7.3 Hz, 1 H), 7.43 (q,
J = 7.4 Hz, 2 H), 7.63 (d,
J = 7.6 Hz, 1 H), 11.09 (br s, 1 H);
13C NMR
pdf (101 MHz, acetone-d
6) δ: 37.9, 60.8, 63.5, 78.2, 125.2, 126.4, 128.1, 130.4, 136.2, 141.7, 147.1, 152.5; HRMS (APCI+)
m/z calcd. for C
18H
11N
3OF
5 (M
+) 380.0817; found 380.0816; Anal. calcd. for C
18H
11BF
9N
3O: C, 46.28; H, 2.37; N, 9.00; found: C, 45.95; H, 2.23; N, 9.03. Based on the observed analytical results we propose the salt to be between anhydrous and a half-hydrate. Anal. calcd. for C
18H
11BF
9N
3O1/2H
2O: C, 45.41; H, 2.54; N, 8.83. The checker's efforts to get an elemental analysis of an anhydrous sample were unsuccessful.
23.
2-Pyrrolidinone (≥ 99%) was purchased from Aldrich Chemical Co, and used without further purification.
24.
The spectral data for 2-pentafluorophenyl-6,7-dihydro-5
H-pyrrolo[2,1-
c][1,2,4]triazol-2-ium; tetrafluoroborate (
3) are as follows: R
f = 0.13 (3:1; CH
2Cl
2:acetone); Mp 242-245 °C; IR (neat) 3145, 3097, 2983, 1655, 1604, 1524, 1499, 1028, 994, 875 cm
-1;
1H NMR
pdf (400 MHz, acetone-d
6) δ: 3.00 (ddd,
J = 15.0, 7.7, 7.7 Hz, 2 H), 3.42 (t,
J = 8.0 Hz, 2 H), 4.76 (t,
J = 8.0 Hz, 2 H), 10.19 (s, 1 H);
13C NMR
pdf (101 MHz, acetone-d
6) δ: 22.6, 27.6, 49.5, 137.8, 140.4, 142.9, 143.3, 144.5, 145.6, 145.8, 165.8; HRMS (APCI+)
m/z calcd. for C
11H
7N
3F
5(M
+) 276.0555; found 276.0556; Anal. calcd. for C
11H
7BF
9N
3: C, 36.40; H, 1.94; N, 11.58; found: C, 36.45; H, 1.76; N, 11.54.
Safety and Waste Disposal Information All hazardous materials should be handled and disposed of in accordance with "Prudent Practices in the Laboratory"; National Academy Press; Washington, DC, 1998.
3. Discussion
In recent years,
N-heterocyclic carbenes have attracted significant attention as catalysts in facilitating umpolung reactivity.
2 Ukai's utilization of a thiazolium salt as a carbene precursor in the benzoin reaction
3 and Breslow's elucidation of the mechanism
4 of this reaction displayed the potential use of these nucleophilic carbene precatalysts. These early reports led to the subsequent development of carbene precatalysts to facilitate a multitude of Umpolung reactions. In 1996, Enders and coworkers demonstrated the asymmetric benzoin reaction with a triazolium salt as the carbene precursor in moderate yield and enantioselectivity.
5 Bicyclic triazolium carbene precursors were next studied to see if greater asymmetric induction could be obtained in various Umpolung reactions.
The aminoindanol-derived carbene scaffold introduced by us in 2002 has proven to be one of the most general for these carbene precursors.
6 In subsequent work, we noted that the electronic nature of the N-aryl substituent has a profound effect on reactivity and control of enantioselectivity in the Stetter reaction. This led to the development of triazolium precatalyst
2. Application of triazolium
2in the asymmetric Stetter reaction generates quaternary stereocenters in high enantiomeric excess and very good chemical yields.
7 The umpolung reactivity with triazolium precatalyst
2 can also be extended towards the desymmetrization of cyclohexadienones to yield hydrobenzofuranones in excellent enantioselectivities and chemical yields.
8 Extension of this work to vinylphosphine oxides and vinylphosphonates as the Michael acceptor can be achieved to generate keto phosphonates and keto phospine oxides in excellent enantioselectivities and yields.
9 The application of precatalyst
2 towards the rapid assembly of the tetracyclic core of natural product FD-838 was accomplished.
10 The asymmetric synthesis of α-chloro esters via an acyl anion redox reaction was also accomplished with precatalyst
2 to yield the respective enantioenriched aryl esters.
11
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
4,4a,9,9a-Tetrahydro-1-oxa-4-azafluoren-3-one: Indeno[2,1-b]-1,4-oxazin-3(2H)-one, 4,4a,9,9a-tetrahydro-, (4aR,9aS)-; (862095-79-2)
(1R, 2S)-(+)-cis-1-Amino-2-indanol; (136030-00-7)
Ethyl chloroacetate; (105-39-5)
2-Pentafluorophenyl-6,10b-dihydro-4H,5aH-5-oxa-3,10c-diaza-2-azoniacyclopenta[c]fluorene; tetrafluoroborate; (740816-14-2)
Trimethyloxonium tetrafluoroborate; (420-37-1)
Pentafluorophenylhydrazine; (828-73-9)
Triethyl orthoformate: Ethane, 1,1',1''-[methylidynetris(oxy)]tris-; (122-51-0)
2-Pentafluorophenyl-6,7-dihydro-5H-pyrrolo[2,1-c][1,2,4]triazol-2-ium; tetrafluoroborate; (862095-91-8)
2-Pyrrolidinone; (616- 45-5)
|
