Org. Synth. 2011, 88, 152-161
DOI: 10.15227/orgsyn.088.0152
PREPARATION OF HORNER-WADSWORTH-EMMONS REAGENT: METHYL 2-BENZYLOXYCARBONYLAMINO-2- (DIMETHOXY- PHOSPHINYL)ACETATE
Submitted by Hiroki Azuma1, Kentaro Okano1, Tohru Fukuyama2, and Hidetoshi Tokuyama1.
Checked by Alistair Boyer and Mark Lautens.
1. Procedure
A. α-Hydroxy-N-benzyloxycarbonylglycine. A 500-mL three-necked round-bottomed flask equipped with an overhead mechanical stirrer (teflon paddle, 75 × 20 mm), a glass stopper, and a reflux condenser fitted with an inert gas inlet (Note 1) is charged with benzyl carbamate (30.23 g, 200 mmol, 1.0 equiv) (Note 2) and glyoxylic acid monohydrate (20.25 g, 220 mmol, 1.1 equiv) (Note 3). The flask is evacuated and backfilled with inert gas, the glass stopper is removed under a stream of inert gas and the flask is charged with anhydrous Et2O (200 mL) (Note 4). The resulting translucent solution is heated under reflux for 12 h (Note 5) with stirring at a rate of 200 rpm. Over this time, the product precipitates to give a white suspension. The white precipitate is collected by filtration, washed with hexanes-Et2O (1:1) (6 × 10 mL) (Note 6), and dried in vacuo to yield α-hydroxy-N-benzyloxycarbonylglycine as fine white crystals (32.80-35.37 g, 73-79%) (Note 7).
B. Methyl α-methoxy-N-benzyloxycarbonylglycinate. A 1-L one-necked, round-bottomed flask equipped with a Teflon-coated magnetic stir bar (octagonal, 38 mm) is charged with α-hydroxy-N-benzyloxycarbonylglycine (22.52 g, 100 mmol, 1.0 equiv) and anhydrous MeOH (200 mL) (Note 8). An inert gas inlet is attached (Note 1), and the flask is cooled to 1 °C (internal temperature). The gas inlet is temporarily removed and to the translucent solution is added conc. H2SO4 (5.0 mL) (Note 9) with a pipette over 5 min. The gas inlet is replaced, the cooling bath is then removed, and the mixture is stirred at room temperature for 15 h (Note 10). The reaction mixture is cooled to 1 °C (internal temperature) to which is added sat. aq. NaHCO3 (120 mL) (Note 11) accompanied with vigorous gas evolution. The pH of the solution after addition is determined to be ca. 7. Methanol is removed under reduced pressure on a rotary evaporator (30 °C, 40 mmHg), and the residue is transferred into a 300-mL separatory funnel with the aid of water (50 mL) and EtOAc (200 mL). After partitioning, the aqueous layer is extracted with EtOAc (2 × 200 mL). The combined organic extracts are transferred into a 1-L separatory funnel and are washed with sat. aq. NaCl (1 × 200 mL), dried over MgSO4 (20 g), and filtered (washing with 2 × 20 mL of EtOAc). The filtrate is concentrated under reduced pressure on a rotary evaporator (30 °C, 40 mmHg) and the residue is thoroughly dried in vacuo to give methyl α-methoxy-N-benzyloxycarbonylglycinate as a white solid (24.26-24.56 g, 96-97%) (Note 12).
C. Methyl 2-benzyloxycarbonylamino-2-(dimethoxyphosphinyl)acetate. A 500-mL flame-dried, two-necked, round-bottomed flask (Note 13) equipped with a Teflon-coated magnetic stir bar (octagonal, 38 mm), a rubber septum, and an inert gas inlet (Note 1) is charged with methyl α-methoxy-N-benzyloxycarbonylglycinate (20.27 g, 80.0 mmol, 1.0 equiv). The flask is evacuated and backfilled with inert gas. The flask is charged with anhydrous toluene (80 mL) (Note 14), and the resulting solution is heated at 70 °C. Phosphorus trichloride (6.98 mL, 11.0 g, 80.0 mmol, 1.0 equiv) (Note 15) is added to the solution over 5 min via a syringe. After stirring at 70 °C for 26 h (Note 16), trimethyl phosphite (9.44 mL, 9.93 g, 80.0 mmol, 1.0 equiv) (Note 17) is added to the mixture over 5 min via a syringe. The resulting mixture is stirred at 70 °C for an additional 2 h (Note 18). All volatile materials are removed under reduced pressure (40 then 10 mmHg, bath temperature: 70 °C) in a general distillation apparatus (a distillation head, a distillation adapter, and a receiver flask) to give a yellow viscous oil. The oil is transferred into a 300-mL separatory funnel with the aid of EtOAc (100 mL). The solution is washed with sat. aq. NaHCO3 (3 × 50 mL). The combined aqueous washings are extracted with EtOAc (1 × 50 mL). The combined organic extracts are washed with sat. aq. NaCl (1 × 50 mL), dried over Na2SO4 (10 g), filtered (washing with 10 mL EtOAc), and concentrated on a rotary evaporator under reduced pressure (30 °C, 40 mmHg) to give a pale yellow oil (27.26 g). Upon addition of hexanes (40 mL) to the oil with vigorous stirring at room temperature, a white solid precipitates which is collected by filtration, washed with ice-cold hexanes (5 × 20 mL), and dried in vacuo to afford methyl 2-benzyloxycarbonylamino-2-(dimethoxyphosphinyl)acetate as a fine white powder (22.59-23.08 g, 85-87%) (Note 19).
2. Notes
1. The use of either argon or nitrogen had no impact on the yield of the reaction.
2. Benzyl carbamate (99%) was purchased from Sigma-Aldrich Co. and used as received without further purification.
3. Glyoxylic acid monohydrate (98%) was purchased from Sigma-Aldrich Co. and used as received without further purification.
4. Et2O (puriss., dried over molecular sieves, ≤0.005% H2O) was purchased from Sigma-Aldrich Co. and used as received without further purification (submitters used >99.5%, water content: <0.05% from Kanto Chemical Company, Inc).
5. The submitters observed an incomplete reaction at 12 h and longer reaction time and/or higher reaction temperature did not improve the conversion.
6. Concentration of the combined washings gave 13.35 g of the desired product: αhydroxy-N-benzyloxycarbonylglycine, with a trace of glyoxylic acid monohydrate.
7. The submitters report a yield of 58%. Data for product (without further purification): Rf = 0.60 (H2O-MeOH-n-BuOH-EtOAc = 1:1:1:2; Merck silica gel 60F-254 aluminium-backed plates; visualized at 254-nm and with an ethanol solution of Ce2(SO4)3 and phosphomolybdic acid followed by heating); mp = 198-200 °C (Et2O); IR (film): 3333, 3039, 2946, 1732, 1694, 1542, 1536, 1454, 1340, 1266, 1246, 1085 cm−1; 1H NMR pdf (400 MHz, DMSO-d6) δ: 5.05 (s, 2 H), 5.22 (d, J = 8.8 Hz, 1 H), 7.27-7.41 (m, 5 H), 8.13 (d, J = 8.8 Hz, 1 H); The submitters report an additional 1H NMR resonance at 6.26 (br s, 1 H); 13C NMR pdf (100 MHz, DMSO-d6) δ: 66.2, 73.9, 128.5 (2 × C), 128.5, 129.0 (2 × C), 137.5, 156.2, 171.7; HRMS. [M + H]+ calcd. for C10H12NO5: 226.0715. Found: 226.0716; Anal. calcd. for C10H11NO5: C, 53.33; H, 4.92; N, 6.22. Found: C, 53.20; H, 5.27; N, 6.14.
8. Methanol (puriss., absolute, dried over molecular sieves, ≤0.01% H2O) was purchased from Sigma-Aldrich Co. and used as received without further purification (submitters used 99.8%, water content: <50 ppm from Wako Pure Chemical Industries, Ltd.).
9. Conc. H2SO4 (95.0-98.0%) was purchased from Caledon Laboratories Ltd. and used as received without further purification (submitters used 95.0% from Wako Pure Chemical Industries, Ltd.).
10. The reaction typically requires 15 h to consume all the α-hydroxy-N-benzyloxycarbonylglycine and is monitored by TLC analysis. The Rf values of the starting material and the product are baseline and 0.71, respectively (CH2Cl2-MeOH = 19:1; Merck silica gel 60F-254 aluminium-backed plates; visualized at 254-nm and with an ethanol solution of Ce2(SO4)3 and phosphomolybdic acid followed by heating).
11. The submitters sometimes observed the solidification of the reaction mixture upon cooling to 0 °C. In this situation, the reaction mixture is warmed to room temperature and ice-cold sat. aq. NaHCO3 (0 °C) is added at room temperature.
12. Data for product (without further purification): Rf = 0.40 (hexanes-EtOAc = 2:1; Merck silica gel 60F-254 aluminium-backed plates; visualized at 254-nm and with an ethanol solution of Ce2(SO4)3 and phosphomolybdic acid followed by heating); mp = 70-72 °C (EtOAc); IR (film): 3310, 3035, 2947, 1752, 1716, 1686, 1542, 1455, 1439, 1362, 1259, 1221, 1197, 1103 cm−1; 1H NMR pdf (400 MHz, CDCl3) δ: 3.47 (s, 3 H), 3.81 (s, 3 H), 5.14 (d, J = 12.3 Hz, 1 H), 5.17 (d, J = 12.3 Hz, 1 H), 5.36 (d, J = 9.4 Hz, 1 H), 5.84 (br s, 1 H), 7.31-7.39 (m, 5 H); 13C NMR pdf (100 MHz, CDCl3) δ: 52.8, 56.2, 67.4, 80.6, 128.1, 128.3, 128.5, 135.7, 155.6, 167.9; HRMS. [M + Na]+ calcd. for C12H15NNaO5: 276.0848. Found: 276.0846; Anal. calcd. for C12H15NO5: C, 56.91; H, 5.97; N, 5.53. Found: C, 56.83; H, 6.21; N, 5.56.
13. The use of an oversize flask allows for the removal of the reagents and solvent at the end of the reaction without the loss of product through bumping.
14. Toluene (dried max. 0.001% H2O, puriss.) was purchased from Sigma-Aldrich Co. and used as received without further purification (submitters used 99.5%, water content: <30 ppm from Wako Pure Chemical Industries, Ltd.).
15. Phosphorus trichloride (ReagentPlus, 99%) was purchased from Sigma-Aldrich Co. and used as received without further purification (submitters used 99.0% from Wako Pure Chemical Industries, Ltd.).
16. The reaction typically requires 22-26 h to consume all the methyl α-methoxy-N-benzyloxycarbonylglycinate and is monitored by TLC analysis. The Rf values of the starting material and the intermediate are 0.71 and 0.50, respectively (CH2Cl2-MeOH = 19:1; Merck silica gel 60F-254 aluminium-backed plates; visualized at 254-nm and with an ethanol solution of Ce2(SO4)3 and phosphomolybdic acid followed by heating). The intermediate of the reaction is methyl N-benzyloxycarbonyl- α-chloroglycinate. A small amount of the reaction mixture was concentrated in vacuo and analyzed by 1H spectroscopy: 1H NMR (400 MHz, CDCl3) δ: 3.86 (s, 3 H), 5.10-5.24 (m, 2 H), 6.18 (br s, 1 H), 7.32-7.40 (m, 5 H).3
17. Trimethyl phosphite (>99%) was purchased from Sigma-Aldrich Co. and used as received without further purification.
18. The reaction typically requires 2 h to consume all the intermediate and is monitored by TLC analysis. The Rf values of the intermediate and the product are 0.50 and 0.45, respectively (CH2Cl2-MeOH = 19:1; Merck silica gel 60F-254 aluminium-backed plates; visualized at 254-nm and with an ethanol solution of Ce2(SO4)3 and phosphomolybdic acid followed by heating).
19. Data for product (without further purification): Rf = 0.45 (EtOAc; Merck silica gel 60F-254 aluminium-backed plates; visualized at 254-nm and with an ethanol solution of Ce2(SO4)3 and phosphomolybdic acid followed by heating); mp = 77-78 °C (hexanes); IR (film): 3229, 3034, 2963, 1749, 1716, 1535, 1427, 1332, 1277, 1240, 1213, 1030 cm−1; 1H NMR pdf (400 MHz, CDCl3) δ: 3.79 (d, 3JH-P = 11.0 Hz, 3 H), 3.82 (d, 3JH-P = 11.2 Hz, 3 H), 3.84 (s, 3 H), 4.93 (dd, 2JH-P = 22.3, J = 9.2 Hz, 1 H), 5.16 (d, J = 12.0 Hz, 1 H), 5.16 (d, J = 12.0 Hz, 1 H), 5.58 (d, J = 9.6 Hz, 1 H), 7.31-7.39 (m, 5 H); 13C NMR pdf (100 MHz, CDCl3) δ: 52.0 (d, 1JC-P = 148 Hz), 53.3, 53.9 (d, 2JC-P = 6.8 Hz), 54.1 (d, 2JC-P = 6.5 Hz), 67.5, 128.1, 128.3, 128.5, 135.8, 155.5 (d, 3JC-P = 7.2 Hz), 167.1; HRMS. [M + H] calcd. for C13H19NO7P: 332.0899. Found: 332.0905; Anal. calcd. for C13H18NO7P: C, 47.14; H, 5.48; N, 4.23. Found: C, 47.51; H, 5.74; N, 4.34.
Handling and Disposal of Hazardous Chemicals
The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
The Horner-Wadsworth-Emmons (HWE) olefination4 has the following advantages over the Wittig reaction; 1) the phosphonate carbanions are more nucleophilic than phosphorus ylides, and even unreactive hindered ketones react readily in HWE olefinations; 2) water-soluble phosphonate byproducts facilitate the purification process; and 3) the product olefin geometry can be switched by the Corey-Kwiatkowski modification,4a,5 the Still-Gennari modification,4b,6 or the Ando modification.7
The present procedure describes a convenient and scalable preparation of the HWE reagent8 that gives the (Z)-dehydroamino acid derivative, which allows facile access to Cbz-protected α-amino acid methyl esters via Rh-catalyzed enantioselective hydrogenation9 (Scheme 1).

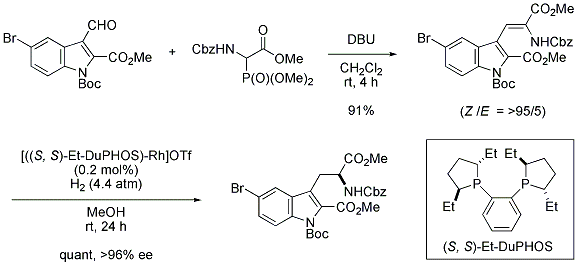

Scheme 1. Preparation of tryptophan derivative
Scheme 1. Preparation of tryptophan derivative
The Cbz group in the HWE reagent is converted to a variety of protecting groups via hydrogenolysis followed by acylation8b (Table 1).

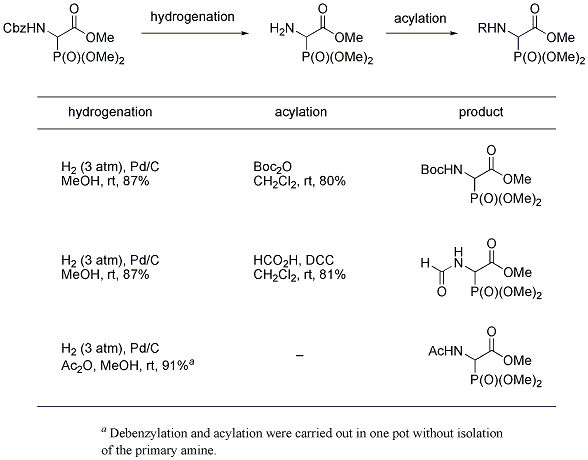

Table 1. Preparation of a series of related HWE reagents
Table 1. Preparation of a series of related HWE reagents
Recently, Ohfune and Shinada reported modified synthesis of a new Ando-type HWE reagent 1 providing an (E)-encarbamate.10 The reagent was prepared from a hemiaminal, the product of step B in this procedure, by treatment with P(OPh)3 and TMSOTf. Treatment of benzaldehyde with phosphonate 1 provided the corresponding (E)-dehydrophenylalanine derivative with excellent stereoselectivity (97:3). Their (-)-kaitocephalin synthesis features a substrate-controlled diastereoselective hydrogenation of (E)-enamide 2 prepared from the corresponding phosphonate 3 readily prepared from 1 (Scheme 2).

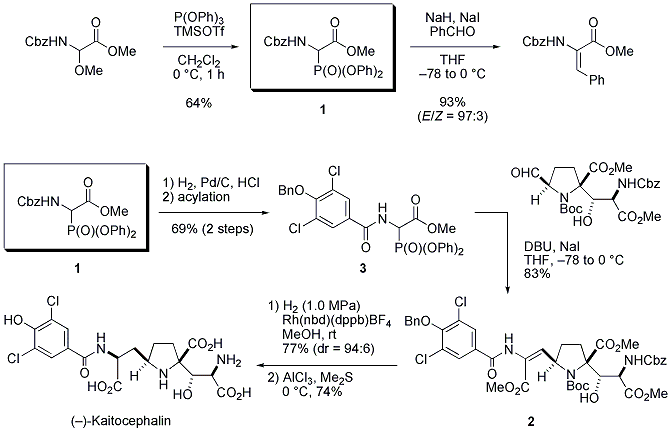

Scheme 2. Total synthesis of (-)-kaitocephalin featuring (E)-selective olefination and substrate-controlled diastereoselective hydrogenation
Scheme 2. Total synthesis of (-)-kaitocephalin featuring (E)-selective olefination and substrate-controlled diastereoselective hydrogenation

References and Notes
  1. Graduate School of Pharmaceutical Sciences, Tohoku University, Aramaki, Aoba-ku, Sendai 980-8578, Japan. This work was supported by The Ministry of Education, Culture, Sports, Science and Technology, Japan.
  2. Graduate School of Pharmaceutical Sciences, University of Tokyo, 7-3-1 Hongo, Bunkyo-ku, Tokyo 113-0033, Japan.
  3. Williams, R. M.; Aldous, D. J.; Aldous, S. C. J. Org. Chem. 1990, 55, 4657.
  4. (a) Boutagy, J.; Thomas, R. Chem. Rev. 1974, 74, 87. (b) Maryanoff, B. E.; Reitz, A. B. Chem. Rev. 1989, 89, 863.
  5. Corey, E. J.; Kwiatkowski, G. T. J. Am. Chem. Soc. 1966, 88, 5654.
  6. Still, W. C.; Gennari, C. Tetrahedron Lett. 1983, 24, 4405.
  7. (a) Ando, K. J. Org. Chem. 1997, 62, 1934. (b) Ando, K. J. Org. Chem. 2000, 65, 4745. (c) Ando, K. J. Synth. Org. Chem., Jpn. 2000, 58, 869.
  8. (a) Zoller, U.; Ben-Ishai, D. Tetrahedron 1975, 31, 863. (b) Schmidt, U.; Lieberknecht, A.; Wild, J. Synthesis 1984, 53.
  9. (a) Wang, W.; Xiong, C.; Zhang, J.; Hruby, V. J. Tetrahedron 2002, 58, 3101. (b) Crépy, K. V. L.; Imamoto, T. Adv. Synth. Catal. 2003, 345, 79. For a review on enantioselective hydrogenation, see: (c) Tang, W.; Zhang, X. Chem. Rev. 2003, 103, 3029.
  10. Hamada, M.; Shinada, T.; Ohfune, Y. Org. Lett. 2009, 11, 4664.

Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)

Benzyl carbamate: Carbamic acid, Phenylmethyl ester; (621-84-1)

Glyoxylic acid monohydrate: Acetic acid, 2,2-dihydroxy-; (563-96-2)

Sulfuric acid: Sulfuric acid; (7664-93-9)

Phosphorous trichloride: Phosphorous trichloride; (7719-12-2)

Trimethylphosphite: Phosphorous acid, trimethyl ester; (121-45-9)
