Org. Synth. 2011, 88, 309-316
DOI: 10.15227/orgsyn.088.0309
SILVER-CATALYZED REARRANGEMENT OF PROPARGYLIC SULFINATES: SYNTHESIS OF ALLENIC SULFONES
Submitted by Michael Harmata, Zhengxin Cai, and Chaofeng Huang
1.
Checked by Kay M. Brummond and Bo Wen.
1. Procedure
A. But-3-yn-2-yl 4-Methylbenzenesulfinate. A flame-dried 500-mL, three-necked, round-bottomed flask is equipped with a 5.0 cm magnetic stir bar, an internal thermometer, a 125-mL pressure-equalizing addition funnel, and a rubber septum containing nitrogen inlet and outlet needles.
The flask is charged with tosyl chloride (9.55 g, 50.1 mmol, 1 equiv) (Note 1), dichloromethane (125 mL) (Note 2), and triethylamine (7.65 mL, 5.56 g, 55.0 mmol, 1.1 equiv) (Note 3), resulting in a colorless solution.
The solution is cooled to 19 °C (internal temperature) in a water bath.
To this solution is added, dropwise over 70 min by means of the addition funnel, a well mixed yellow solution of 3-butyn-2-ol (4.00 mL of 97% solution, 3.50 g, 50.0 mmol, 1 equiv) (Note 4) and triphenylphosphine (13.1 g, 50.0 mmol, 1 equiv) (Note 5) in 125 mL of dichloromethane, during which time the reaction solution turns a pale yellow color.
The rate of the addition is adjusted so as to keep the temperature of the reaction mixture at 19 °C. The reaction is run under an inert nitrogen atmosphere and monitored by TLC.
After the disappearance of starting material, the solution is transferred to a 500-mL round-bottomed flask and concentrated on a rotary evaporator (35 °C, 10 mmHg) to a volume of about 50 mL.
Ether/hexanes (200 mL/1:4) (Notes 6 and 7) is added to the flask.
Upon swirling by hand, a voluminous amount of white solid (triethylamine hydrochloride salt) forms, which is filtered through a short silica gel column (40 g of silica in a 150-mL sintered glass funnel) (Note 8).
Diethyl ether (150 mL) is used in three portions to rinse the flask and the solid.
The filtrate is concentrated on a rotary evaporator to give a faint yellow oil.
The crude oil is purified by silica gel column chromatography.
The product is charged on a column (5 x 18 cm) of 150 g of silica gel and eluted with 1:4 ether/hexanes (1000 mL).
Collection of 25 mL fractions begins immediately, and the desired product is obtained in fractions 15-38.
The product-containing fractions are combined in a 1000-mL round-bottomed flask and concentrated in vacuo by rotary evaporation (35 °C, 10 mmHg) to afford 9.64 g (93%) of a 1:1 mixture of two diastereomers of but-3-yn-2-yl 4-methylbenzenesulfinate as a faint yellow (almost colorless) oil (Note 9).
B. 1-(Buta-1,2-dien-1-ylsulfonyl)-4-methylbenzene. A 250-mL round-bottomed flask equipped with a 3 cm magnetic stir bar is flame dried under a nitrogen flow.
After the flask has cooled to room temperature, it is charged with silver hexafluoroantimonate (266 mg, 0.774 mmol, 0.02 equiv) (Note 10) and protected by a nitrogen atmosphere.
The but-3-yn-2-yl 4-methylbenzenesulfinate (8.05 g, 38.7 mmol, 1 equiv) in 77 mL of dichloromethane (0.5 M) is introduced to the flask containing silver hexafluoroantimonate via cannula over 3 min.
The reaction is run under a nitrogen atmosphere and monitored by TLC.
After the disappearance of starting material (within 10 min), the contents are passed through a short silica gel plug (10 g silica gel in a 60 mL sintered glass filter funnel) and the pad of silica is rinsed with 100 mL of diethyl ether.
After concentration of the filtrate on a rotary evaporator (35 °C, 10 mmHg), the residue is put on a high vacuum pump to remove trace amounts of solvent to provide 7.93 g (98.5%) of 1-(buta-1,2-dien-1-ylsulfonyl)-4-methylbenzene as a faint yellow oil.
The oil is mixed with 50 mL of 1:4 diethyl ether/hexane (10 mL/40 mL) in a 100-mL round-bottomed flask.
The solution is cooled to -20 °C and maintained at that temperature for 22 h, and the resulting crystals are collected by suction filtration on a 60-mL sintered glass funnel quickly so as to not allow the filtrate to warm too much.
The flask and the crystals are rinsed using cold hexanes (100 mL).
The crystals are transferred to a 100-mL, round-bottomed flask and dried under high vacuum pump to afford 7.73 g (96%) of a white solid (Note 11).
2. Notes
1.
p-Toluenesulfonyl chloride (99%) was purchased from Acros and used as received.
2.
Dichloromethane was purified by passing through alumina using the Sol-Tek ST-002 solvent purification system directly before use.
3.
Triethylamine (99%) was purchased from Aldrich and used as received.
4.
3-Butyn-2-ol (97%) was purchased from Aldrich and used as received.
5.
Triphenylphosphine (99%) was purchased from Aldrich and used as received.
6.
ACS reagent grade ether was purchased from Fischer and used as received.
7.
ACS reagent grade hexanes was purchased from Fischer and used as received.
8.
Silica gel, standard grade, was purchased from Sorbent Technologies, with 0.040 - 0.063 mm particle size.
9.
For characterization purposes, the diastereomers were separated, but the product was used in the next step as a 1:1 mixture.
The product displayed the following physical properties.
Diastereomer 1:
1H NMR
pdf(500 MHz, CDCl
3, 298 K) δ: 1.59 (d,
J = 6.5 Hz, 3 H), 2.39 (d,
J = 2.5 Hz, 1 H), 2.42 (s, 3 H), 4.98 (dq,
J = 2.0, 7.0 Hz, 1 H), 7.32 (d,
J = 8.0 Hz, 2 H), 7.63 (d,
J = 8.5 Hz, 2 H).
13C NMR
pdf(125 MHz, CDCl
3, 298 K) δ: 21.5, 23.7, 62.0, 74.4, 81.9, 125.4 (2 C), 129.6 (2 C), 141.6, 142.9.
Diastereomer 2:
1H NMR
pdf(500 MHz, CDCl
3, 298 K) δ: 1.52 (d,
J = 7.0 Hz, 3 H), 2.42 (s, 3 H), 2.64 (d,
J = 2.5 Hz, 1 H), 5.02 (dq,
J = 2.0, 7.0 Hz, 1 H), 7.34 (d,
J = 8.0 Hz, 2 H), 7.64 (d,
J = 8.0 Hz, 2 H).
13C NMR
pdf(125 MHz, CDCl
3, 298 K) δ: 21.5, 22.9, 63.8, 75.0, 82.2, 125.0 (2 C), 129.7 (2 C), 142.4, 142.9.
IR (film) : 3291, 3250, 2989, 2935, 2118, 1596, 1446, 1330, 1138, 1019, 901, 813 cm
-1; TLC: R
f = 0.23, 0.29 (for two diastereomers respectively, SiO
2, Et
2O/hexanes, 1:4); MS
m/z (relative intensity) : 209 (15%, M+H), 198 (10%), 215 (11%), 229 (100%), 241 (10%); HRMS
m/z : calcd.
for C
11H
12O
2S [M+H] 209.0636, found 209.0636; Anal.
calcd.
for C
11H
12O
2S: C, 63.43; H, 5.81.
Found C, 63.20; H, 5.84.
10.
Silver hexafluoroantimonate (98%) was purchased from Aldrich and used as received.
11.
The product displayed the following physical properties: mp 47- 48 °C;
1H NMR
pdf(500 MHz, CDCl
3, 298 K) δ: 1.78 (dd,
J = 3.0, 7.5 Hz, 3 H), 2.44 (s, 3 H), 5.80 (dq,
J = 6.0, 7.5 Hz, 1 H), 6.14 (dq,
J = 6.0, 3.0, 1H), 7.33 (d,
J = 8.0 Hz, 2 H), 7.77 (d,
J = 8.5 Hz, 2 H);
13C NMR
pdf(125 MHz, CDCl
3, 298 K) δ: 13.0, 21.6, 95.9, 100.7, 127.6 (2 C), 129.7 (2 C), 138.4, 144.3, 206.1; IR (film): 3020, 2925, 1954, 1596, 1317, 1146, 1085, 815, 767cm
-1.
TLC: R
f = 0.35 (SiO
2, EtOAc/hexanes, 1:1)
(Note 12); MS
m/z (relative intensity) : 209 (57%, M+H), 201 (100%), 198 (10%), 212 (76%), , 218 (64%), 219 (46%); HRMS
m/z : calcd.
for C
11H
12O
2S [M+H] 209.0636, found 209.0642; Anal.
calcd.
For C
11H
12O
2S: C, 63.43; H, 5.81.
Found C, 63.69; H, 5.75.
12.
ACS reagent grade ethyl acetate was purchased from Fischer and used as received.
Safety and Waste Disposal Information
All hazardous materials should be handled and disposed of in accordance with "Prudent Practices in the Laboratory"; National Academy Press; Washington, DC, 1995.
3. Discussion
Allenic sulfones
2 have a rich chemistry that involves such diverse reactions as the carbon-accelerated Claisen rearrangement,
3 metal-catalyzed reactions
4 and DNA cleavage.
5 New, facile approaches to their synthesis are thus in demand.
The preparation of allenic sulfones has been accomplished thermally
6 and under the influence of various metal catalysts including those based on rhodium
7 and palladium.
8 The present method was discovered during a systematic study to use gold catalysts in the rearrangement of propargylic sulfinates to allenic sulfones.
Although gold catalysts were effective, we found that the much more economical silver cation was as good or better in effecting the transformation.
9The synthesis of propargylic sulfinates used in this study is based on the method of Toru
10 and is related to one published by Sharpless.
11 This approach avoids the preparation of reactive sulfinyl chlorides and broadens the scope of sulfinate ester formation considerably, since many sulfonyl chlorides are either commercially available or very easy to prepare.
The procedure succeeds with a variety of propargylic alcohols.

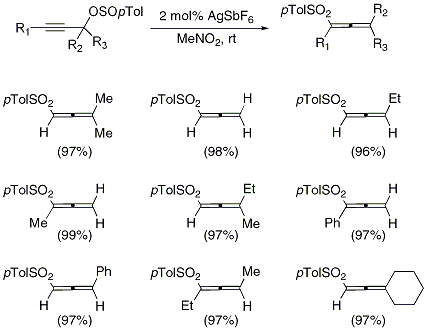

Primary, secondary and tertiary propargylic sulfinates rearrange upon exposure to silver cation in near quantitative yields (Figure 1).
A chiral, non-racemic alcohol produced a chiral, non-racemic sulfone in the process with no apparent loss of stereochemical integrity.
Overall the conversion from alcohol to sulfone is rapid and easy to perform and compares favorably with those methods that use more expensive metal catalysts.
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
But-3-yn-2-yl 4-Methylbenzenesulfinate: Benzenesulfinic acid, 4-methyl-, 1-methyl-2-propyn-1-yl ester; (32140-54-8)
Tosyl chloride: Benzenesulfonyl chloride, 4-methyl-; (98-59-9)
Triethylamine: (121-44-8)
3-Butyn-2-ol; (2028-63-9)
Triphenylphosphine; (603-35-0)
1-(Buta-1,2-dien-1-ylsulfonyl)-4-methylbenzene: Benzene, 1-(1,2-butadien-1-ylsulfonyl)-4-methyl-; (32140-55-9)
Silver hexafluoroantimonate; (26042-64-8)
 |
