Checked by Eric M. Phillips and Jonathan A. Ellman.
1. Procedure
2. Notes
1.
Potassium hydroxide was purchased from Fisher Scientific and used as received.
A significant loss of color of the solution results during the required reaction time when only 5 equiv of potassium hydroxide is used, as described by le Corre,
2 leading to incomplete conversion.
2.
Dissolution of potassium hydroxide in water evolves heat.
3.
(
S)-(–)-2-Amino-3-phenyl-1-propanol [(
S)-phenylalaninol) was purchased from Aldrich Chemical Company and used as received.
The submitters note that this reagent can also be prepared and found that Masamune's
3 procedure is the most convenient of the known procedures
4
5 for preparing (
S)-phenylalaninol from (
S)-phenylalanine.
4.
Carbon disulfide (99.9%, ACS reagent grade) was purchased from Aldrich Chemical Company and used as received.
Carbon disulfide has an auto-ignition temperature of 100 °C,
6 so extreme care should be taken to vent excess CS2 away from heat sources.
5.
To ensure that escaping carbon disulfide does not pass over hot surfaces.
6.
The internal temperature reaches 102-103 °C within 1–2 h, at which point any free carbon disulfide, bp = 46 °C, is presumed to be purged from the reaction.
7.
The solution has faded somewhat to an orange color.
An aliquot is removed (0.5 mL) and that solution is extracted with
CH2Cl2 (2 x 0.5 mL).
The combined organic solution is dried (Na
2SO
4) and evaporated.
This sample is examined by
1H NMR (CDCl
3) to confirm complete conversion (disappearance of dd at 2.8 and 2.5 ppm and the appearance of dddd at 4.45 ppm).
8.
This product is used without further purification, however, the submitters note that recrystallization from
ethanol (3 mL per gram of solid) provides colorless blocks, mp 91-92 °C (uncorrected) lit.
84-85 °C.
2 The submitters provided the following characterization data:
1H NMR
pdf(400 MHz, CDCl
3) the appearance and shift of several resonances varies depending on concentration. δ: 2.92 (dd,
J = 13.6, 6.8 Hz, 1 H), 3.01 (dd,
J = 13.6, 7.2 Hz, 1 H), 3.5 (dd,
J = 11.2, 7.6 Hz, 1 H), 4.43 (dddd,
J = 7.2, 7.2, 7.2, 7.2 Hz, 1 H), 7.14-7.18 (band, 2 H), 7.21-7.34 (band, 3 H), 8.17 (variable) (br, s, 1 H);
13C NMR
pdf(100 MHz, CDCl
3) δ: 37.9, 39.7, 65.0, 127.2, 128.90, 128.92, 135.6, 200.6; [α]
24D= -89 (c 4.1, CH
2Cl
2); MS (ESI) calculated for C
10H
11NNaS
2 [M+Na]
+ :
m/z 232.0, found
m/z 232.0.
9.
Dichloromethane (99%) purchased from Fisher Scientific was passed through an activated alumina column (50 mm x 400 mm) under argon.
10.
Pyridine (anhydrous, 99.8%) was purchased from Aldrich Chemical Company and used as received.
11.
Propionyl chloride (98%) was purchased from Aldrich Chemical Company and used as received.
12.
A yellow color forms immediately, and a precipitate begins to form by the end of the addition.
13.
Isopropanol (99%) was purchased from Fisher Scientific and used as received.
14.
Dried overnight at 0.1 mmHg.
15.
Short, bright yellow needles, mp 103.4-104.8 °C (uncorrected) (mp does not change upon a second recrystallization from
i-PrOH)
1H NMR
pdf(400 MHz, CDCl
3) δ: 1.15 (t,
J = 7.2 Hz, 3 H), 2.84 (d,
J = 11.5 Hz, 1 H), 2.96-3.14 (m, 2 H), 3.18 (dd,
J = 13.1, 3.7 Hz, 1 H), 3.33-3.43 (m, 2 H), 5.34 (ddd, J = 10.8, 7.2, 3.8 Hz, 1 H), 7.21-7.32 (m, 5 H);
13C NMR
pdf(100 MHz, CDCl
3) δ: 8.8, 31.9, 32.3, 36.8, 68.7, 127.2, 128.9, 129.4, 136.6, 174.9, 201.1: [α]
20D = +45 (
c 0.01, CH
2Cl
2); MS (EI) calculated for C
13H
15NOS
2 [M]
+:
m/
z 265, found:
m/
z 265.
Anal.
calcd.
for C
13H
15NOS
2: C, 58.83; H, 5.70; N, 5.28.
Found: C, 58.93; H, 5.67; N, 5.12.
16.
Titanium (IV) chloride (99.9%) was purchased from Aldrich Chemical Company and used as received.
17.
This mixture becomes a yellow-orange slurry.
Since the viscosity of the solution increases notably, an increased stirring power is often necessary.
18.
(-)-Sparteine (99%) was purchased from Aldrich Chemical Company and used as received.
19.
Triethylamine, diisopropylethylamine, and diisopropylamine were also used as amine bases, however the diastereomeric ratios were much less than 98:2.
20.
The viscosity of the solution decreases and the color becomes dark red/brown.
21.
1-Methyl-2-pyrrolidinone ((99.5%, anhydrous) was purchased from Aldrich Chemical Company and used as received.
22.
Isobutyraldehyde (98%) was purchased from Aldrich Chemical Company and distilled over CaH
2 immediately prior to use.
23.
If left stirring in saturated NH
4Cl solution for too long, the product will decompose.
24.
Although not observed by the checkers, the submitters note that an emulsion may form in the separatory funnel, necessitating the addition of approximately 100 mL of a mixture of hexanes and ethyl acetate (1:1).
25.
A 5 cm glass column was packed with 250 g of silica gel (60 Å, 40-60 μm, Sorbent Technologies).
The crude product was loaded onto the column and eluted with 2.5 L of 1:5 (v:v) EtOAc:hexanes.
The product was collected in 25 mL fractions between fraction numbers 44 and 79.
R
f = 0.15 (15:85 ethyl acetate: hexanes).
The product stains blue with
p-anisaldehyde stain and heating.
The product should be placed in a freezer for prolonged storage.
26.
The subproduct is essentially pure at this stage, but the submitters state that it can be crystallized from 50 mL of toluene/hexanes solution (1:19, seeding required).
Seeds can be obtained by allowing the material obtained after chromatography to stand for several days (the checkers were unable to obtain seed crystals).
27.
1H NMR
pdf(500 MHz, CDCl
3) δ: 0.88 (d,
J = 6.8 Hz, 3 H), 1.02 (d,
J = 6.6 Hz, 3 H), 1.24 (d,
J = 6.8 Hz, 3 H), 1.68 (m, 1 H), 2.65 (d,
J = 3.9 Hz, 1 H), 2.90 (d,
J = 11.5 Hz, 1 H), 3.05 (dd,
J = 13.1, 10.6 Hz, 1 H), 3.23 (dd,
J = 13.1, 3.8 Hz, 1 H), 3.40 (dd,
J = 11.5, 7.1 Hz, 1 H), 3.54 (ddd,
J = 7.4, 3.5, 3.5 Hz, 1 H), 4.70 (dddd,
J = 6.9, 6.9, 6.9, 3.2 Hz, 1 H), 5.34 (ddd,
J = 10.7, 6.9, 3.8 Hz, 1 H), 7.37-7.27 (m, 5 H);
13C NMR
pdf(125 MHz, CDCl
3) δ: 10.2, 18.9, 19.0, 31.1, 32.0, 36.7, 41.0, 68.8, 77.4, 127.2, 128.9, 129.4, 136.3, 178.5, 201.1; IR (cm
-1) 3494 (br), 2960, 1687 (w); [α]
20D= +152 (c 0.017, CH
2Cl
2); MS (ESI) calculated for C
17H
23NNaO
2S
2 [M+Na]
+ :
m/z 360, found
m/z 360.
Anal.
calcd.
for C
17H
23NO
2S
2: C, 60.50; H, 6.87; N, 4.15.
Found: C, 60.82; H, 6.81; N, 4.10.
28.
The submitters used a 7.5 cm glass column packed with 340 g of silica gel (60 Å, 40 - 60 μm, Sorbent Technologies).
The crude product was loaded onto the column and eluted with 4 L of 15:85 (v:v) EtOAc:hexanes.
The product was collected in 25 mL fractions between fraction numbers 41 and 80.
R
f = 0.33 (15:85 ethyl acetate: hexanes).
29.
1H NMR
pdf(400 MHz, CDCl
3) δ: 0.88 (d,
J = 6.8, 3 H), 1.06 (d,
J = 6.5 Hz, 3 H), 1.18 (d,
J = 6.8 Hz, 3 H), 1.66-1.75 (m, 1 H), 2.89 (d,
J = 11.6 Hz, 1 H), 2.95 (d,
J = 2.8 Hz, 1 H) (may appear as a broad singlet), 3.05 (dd,
J = 10.5, 13.2 Hz, 1 H), 3.25 (dd,
J = 3.9, 13.2 Hz, 1 H), 3.37 (dd,
J = 7.1, 11.5 Hz, 1 H), 3.64 (ddd,
J = 2.3, 2.3, 8.9 Hz, 1 H), 4.93 (qd,
J = 2.1, 7.1 Hz, 1 H), 5.35 (ddd,
J = 4.1, 6.9, 10.7 Hz, 1 H) 7.27-7.37 (m, 5 H);
13C
pdf(100 MHz, CDCl
3) δ: 10.3, 18.8, 19.7, 30.7, 31.7, 36.9, 40.3, 68.9, 76.0, 127.3, 128.9, 129.4, 136.4, 179.2, 201.4; IR ν 3550 (br), 2960 (s), 1675 (s) [α]
20D= +146 (c 0.026, CH
2Cl
2); MS (ESI) calculated for C
17H
23NNaO
2S
2 [M+Na]
+:
m/z 360, found
m/z 360.
.
Anal.
calcd.
for C
17H
23NO
2S
2: C, 60.50; H, 6.87; N, 4.15.
Found: C, 60.78; H, 6.78; N, 4.03.
Safety and Waste Disposal Information
All hazardous materials should be handled and disposed of in accordance with "Prudent Practices in the Laboratory"; National Academy Press; Washington, DC, 1995.
3. Discussion
The preparation and use of thiazolidinethione reagent
3 for the synthesis of aldol products, described in this procedure, is simple and offers many advantages over other available methods.
The aldol reaction has found many applications in the total synthesis of natural products.
7 Chiral auxiliary based methods continue to be the most versatile and reliable of the stereoselective aldol reactions.
The high selectivities observed with a range of aldehyde reactants, coupled with relatively easy separations, due to the diastereomeric nature of any mixed products, makes these user friendly processes.
The Evans syn-aldol procedure employing amino acid-derived oxazolidinone chiral auxiliaries.
4,8 is particularly useful and is widely applied.
A useful modification to the Evans procedure has been to replace the oxazolidinone chiral auxiliaries with the thiazolidinethione counter parts.
9 The aldol reaction using these compounds is more user friendly for several reasons: 1) Inexpensive, easily handled, and readily available TiCl
4 can be used as the Lewis acid source, rather than Bu
2BOTf, required for the Evans procedure.
2) The use of a chlorotitanium enolate also permits a standard acidic work-up to be used, as opposed to the oxidative process needed when alkyl boranes are employed as the Lewis acid.
Importantly, as demonstrated in this procedure, the choice of base, and base stoichiometry, allows the preparation of either the typical Evans syn- or the non-Evans syn-aldol product.

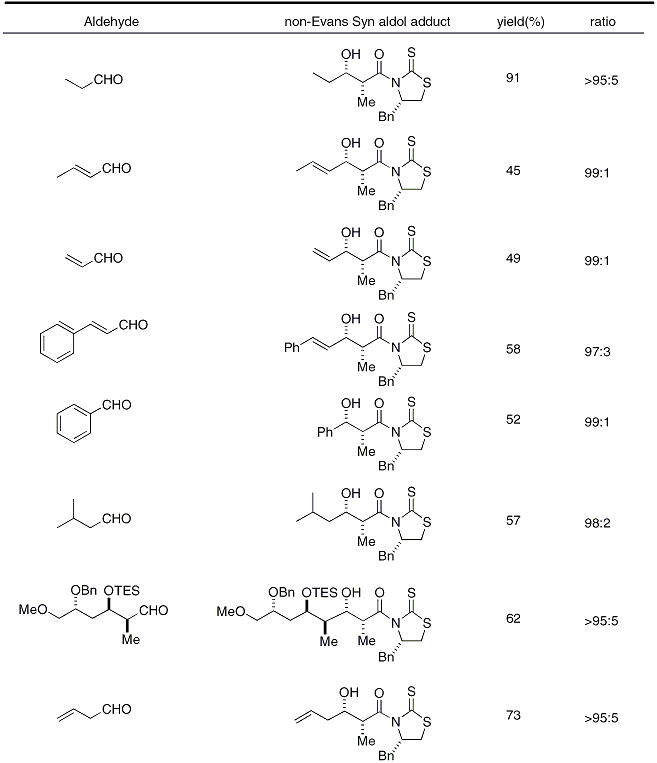

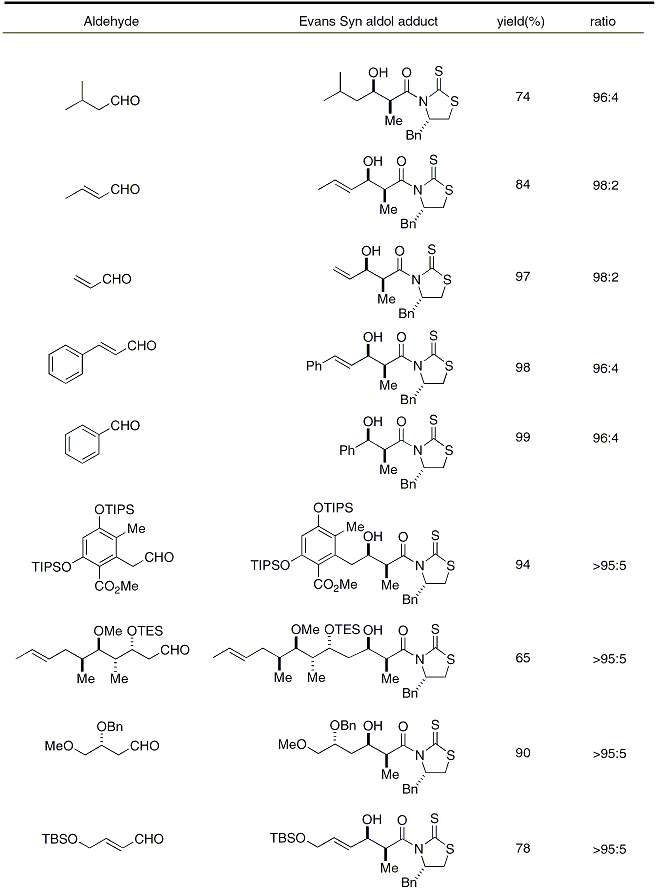

9 A variety of functional and protecting groups are tolerated in the reactions (see Tables 1 and 2).

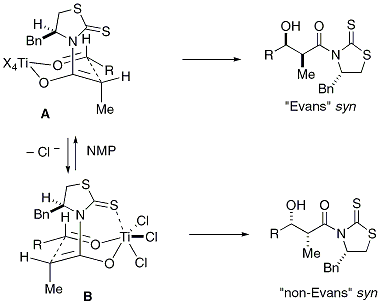

The change in facial selectivity in the aldol additions is postulated to be the result of a switch between chelated and nonchelated transition states as illustrated in Scheme 1.
In each case, the aldehyde approaches the enolate from the face opposite the benzyl substituent on the auxiliary and the
aldehyde carbonyl oxygen is coordinated to the metal center allowing for a six-membered transition state.
When the enolate formation and aldol addition are carried out in the absence of excess diamine or another additional ligand for the metal, it is proposed that the nucleophilic thiocarbonyl displaces chloride from the metal center and the reaction proceeds through a chelated transition state B giving rise to "non-Evans" syn aldol adducts.
When NMP or additional diamine are added as an extra
ligand for the metal center, the chelation between the sulfur of the thiocarbonyl of the auxiliary and titanium is disrupted, leading to a dipole-minimized, non-chelated transition state A giving rise to the "Evans" syn aldol adduct.
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
(S)-1-(4-Benzyl-2-thioxothiazolidin-3-yl)propan-1-one: 1-Propanone, 1-[(4S)-4-(phenylmethyl)-2-thioxo-3-thiazolidinyl]-; (263764-23-4)
(2S, 3R)-3-Hydroxy-1-[(4S)-4-benzyl-2-thioxo-thiazolidin-3-yl]-2,4-dimethyl-pentan-1-one: 1-Pentanone, 3-hydroxy-2,4-dimethyl-1-[(4S)-4-(phenylmethyl)-2-thioxo-3-thiazolidinyl]-, (2S,3R)-; (263764-33-6)
(2R, 3S)-3-Hydroxy-1-[(4S)-4-benzyl-2-thioxo-thiazolidin-3-yl]-2,4-dimethyl-pentan-1-one: 1-Pentanone, 3-hydroxy-2,4-dimethyl-1-[(4S)-4-(phenylmethyl)-2-thioxo-3-thiazolidinyl]-, (2R,3S)-; (331283-30-8)
(S)-Phenylalaninol: Benzenepropanol, β-amino-, (βS)-: (3182-95-4)
Carbon disulfide; (75-15-0)
Propionyl chloride: Propanoyl chloride: (79-03-8)
Pyridine; (110-86-1)
2-Thiazolidinethione, 4-(phenylmethyl)-, (4S)-; (171877-39-7)
N-Methyl-2-pyrrolidone: 2-Pyrrolidinone, 1-methyl-: (872-50-4)
(–)-Sparteine: 7,14-Methano-2H,6H-dipyrido[1,2-a:1',2'-e][1,5]diazocine, dodecahydro-, (7S,7aR,14S,14aS)-; (90-39-1)
Isobutyraldehyde: Propanal, 2-methyl-; (78-84-2)
Titanium tetrachloride: (7550-45-0)
