Org. Synth. 2012, 89, 274-282

DOI: 10.15227/orgsyn.089.0274

o-Aminobenzaldehyde, Redox-Neutral Aminal Formation and Synthesis of Deoxyvasicinone

Submitted by Chen Zhang, Chandra Kanta De, and Daniel Seidel¹.

Checked by Liang Huang, Brenda Burke, and Margaret Faul.

1. Procedure

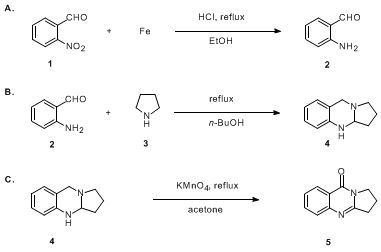

o-Aminobenzaldehyde (2). A 1-L, one-necked, round-bottomed flask, containing an egg-shaped magnetic stir bar (Note 1), is charged with o-nitrobenzaldehyde (1) (9.07 g, 60 mmol) (Note 2) and 170 mL of absolute ethanol (Note 3). The resulting mixture is stirred for one min, at which point a yellow solution is formed. Iron powder (10.05 g, 180 mmol, 3.0 equiv) (Note 4) is added to the stirring solution, followed by addition of diluted HCl (60 mL) (Note 5). The flask is then equipped with a reflux condenser containing a nitrogen inlet, and heated under reflux for 60 min. Under continued stirring, the reaction mixture is allowed to cool to room temperature over a period of 35 min. The reaction mixture is subsequently diluted with EtOAc (500 mL), followed by addition of anhydrous MgSO₄ (70 g) (Note 6). The mixture is allowed to stir at room temperature for 5 min and then filtered through a Büchner funnel packed with celite (Note 7). The filter cake is washed with EtOAc (4 × 100 mL) and the combined filtrates are concentrated to a volume of 15 mL (Notes (Note 8) and (Note 9)). The resulting clear yellow solution is passed through a silica gel plug as quickly as possible, eluting with 20% EtOAc in hexanes (800 mL) under reduced pressure (Notes (Note 10) and (Note 11)). The solvent is removed in vacuo (Note 8) and the residue dried under high vacuum (< 0.1 mmHg) for 2.5 h to obtain 6.95 g (74 wt% quantitative ¹H NMR, 57 mmol, 70%) of o-aminobenzaldehyde (2), which is used directly in the next step (Notes (Note 12) and (Note 13)).

1,2,3,3a,4,9-Hexahydropyrrolo[2,1-b]quinazoline (4). An oven-dried, 500-mL one-necked, round-bottomed flask, containing a magnetic stir bar (Note 1), is charged with n-butanol (200 mL) (Note 14) and pyrrolidine (8.81 g, 10.17 mL, 123.8 mmol, 3.0 equiv) (Note 15). The flask is then equipped with a reflux condenser capped with a septum and a nitrogen inlet, and the reaction mixture is heated under reflux. Using a cannula that is inserted through the septum located on top of the reflux condenser, a solution of o-aminobenzaldehyde (2) (5.0 g, 41.3 mmol, 1.0 equiv) in n-butanol (24 mL) is added slowly via syringe pump over 24 h. Subsequent to the addition, the reaction mixture is heated under reflux for an additional 14 h. The reaction mixture is then allowed to cool to room temperature and is concentrated under reduced pressure (Note 16). The crude product is purified by flash column chromatography, eluting with 500 mL of 50% hexanes in EtOAc, followed by 4 L of 5% MeOH in EtOAc (Note 17). The solvent is removed in vacuo (Note 8) and the residue dried under high vacuum (< 0.1 mmHg) for 24 h to obtain 5.20-5.66 g (100 wt% by quantitative ¹H NMR, 32.1 mmol, 72-77%) of 4 as a light yellow microcrystalline solid (Notes (Note 18) and (Note 19)).

Deoxyvasicinone (5). A 1-L one-necked, round-bottomed flask, containing a magnetic stir bar (Note 1), is charged with 4 (5.0 g, 28.7 mmol), and acetone (285 mL) (Note 20). The resulting mixture is stirred for one min at which point a light yellow solution is formed. KMnO₄ (22.67 g, 143 mmol) (Note 21) is added into the stirring solution. The flask is then equipped with a reflux condenser containing a nitrogen inlet, and the reaction mixture is heated under reflux for 3 h (Note 22). Under continued stirring, the reaction mixture is allowed to cool to room temperature over a period of 30 min and then filtered through a Büchner funnel packed with celite (Note 7). The filter cake is washed with acetone (2 × 50 mL) and the combined filtrates are concentrated under reduced pressure (Note 23). The combined filtrate is concentrated in vacuo (Note 8) and the residue dried under high vaccum (<0.1 mmHg) for 24 h to obtain 4.9-5.0 g (96 wt%, quantitative ¹H NMR, 87-89%) of (5) as a light yellow solid (Notes 24 and 25).

2. Notes

1. The egg-shaped magnetic stir bar was of 3.8 cm length. A stirring speed of 1000 rpm was maintained throughout the reaction.

2. o-Nitrobenzaldehyde (98+%, Cat. No. 552-89-6) was obtained from Alfa Aesar and used as received.

3. Ethanol (200 Proof - Absolute, Anhydrous ACS/USP grade, Cat No. 111ACS200) was obtained from Decon Laboratories, Inc and used as received.

4. Baker analyzed reagent grade iron powder (99.3%, Cat. No. 7439-89-6) was obtained from Mallinckrodt Baker and used as received.

5. Diluted HCl solution was prepared by dissolving 1 mL of concentrated HCl in 66 mL of distilled water.

6. Magnesium sulfate certified anhydrous (Cat. No. 7487-88-9) was obtained from Fisher Chemicals and used as received.

7. Celite (50 g) was used in a Büchner funnel with a 16.5 cm diameter.

8. A standard rotary evaporator was used (25 °C bath temperature, 50 mmHg).

9. Allowing the solution to go to dryness or remain on the rotary evaporator for prolonged periods of time will result in a significantly lower yield.

10. Silica gel (standard grade, 230 × 400 mesh) was obtained from Sorbent Technologies and used as received.

11. A coarse fritted glass funnel (diameter: 7 cm, height of silica gel: 4 cm) with a wet-packed silica gel plug was used in combination with a vacuum filter flask.

12. The initially formed yellow oil turns into a yellow solid if kept in a −20 °C freezer. However, 2 should not be stored for prolonged periods of time as it degrades gradually even at this temperature. The reaction was also performed with 36.3 g of starting material, which resulted in a yield of 23.5 g (68%) of product with similar purity.

13. Analytical data of 2: R_f = 0.48 in 20% EtOAc in hexanes; mp = 32-34 °C; ¹H NMR pdf(500 MHz, CDCl₃) δ: 6.11 (br s, 2 H), 6.64-6.66 (m, 1 H), 6.76-6.77 (ddd, 1 H), 7.29-7.31 (ddd, 1 H), 7.47-7.49 (app dd, 1 H), 9.87 (s, 1 H); ¹³C NMR pdf(125 MHz, CDCl₃) δ: 116.0, 116.4, 118.9, 135.2, 135.7, 149.9, 194.0; IR (ATR) 3463, 3329, 3051, 2839, 2759, 1666, 1612, 1582, 1550, 1480, 1396, 1348, 1322, 1288, 1191, 1145, 1041, 881, 750 cm⁻¹; HRMS m/z calcd for C₇H₈N0 [M+H]⁺: 122.05276, found 122.05957.

14. n-Butanol (99.9%, Cat. No. 71-36-3) was obtained from Sigma-Aldrich and used as received.

15. Pyrrolidine (99%, Cat. No. 123-75-1) was obtained from Alfa Aesar and was freshly distilled before use.

16. A standard rotary evaporator was used (60 °C bath temperature, 33 mmHg).

17. A wet-packed silica gel column was used (diameter: 8.0 cm, Height: 17 cm). The crude material was loaded as oil on top of the column.

18. The use of a syringe pump is not essential but allows for reproducibly higher yields. For instance, the submitters report that direct mixing of o-aminobenzaldehyde (6.06 g, 55 mmol) and three equivalents of pyrrolidine in n-butanol (220 mL) for 21 h under reflux gives rise to aminal 4 in 69% isolated yield.

19. Analytical data of 4: R_f = 0.39 in 10% MeOH in EtOAc; mp = 63-64 °C; ¹H NMR pdf(500 MHz, CDCl₃) δ: 1.61-1.68 (tdd, 1 H), 1.87-1.96 (m, 1 H), 1.97-2.07 (m, 1 H), 2.09-2.18 (m, 1 H), 2.66-2.70 (dt, 1H), 3.01-3.05 (dt, 1 H,), 3.67 (br s, 1 H), 3.90 (d, 1 H,), 4.04 (d, 1H), 4.13-4.17 (t, 1 H), 6.54 (d, 1 H), 6.70 (t, 1 H), 6.95 (d, 1 H), 7.01-7.02 (t, 1 H); ¹³C NMR pdf(125 MHz, CDCl₃) δ: 21.1, 31.8, 50.3, 50.5, 71.2, 114.9, 118.1, 119.4, 127.0, 127.2, 142.9; IR (ATR) 3040, 2967, 2826, 1608, 1585, 1476, 1380, 1252, 744 cm⁻¹; HRMS m/z calcd for C₁₁H₁₄N₂ [M+H]⁺: 175.11570, found 175.12248.

20. Acetone CHROMASOLV for HPLC (> 99.9%, Cat. No. 67-64-1) was obtained from Sigma-Aldrich and used as received.

21. Potassium Permanganate, Baker Analyzed A.C.S. Reagent, J.T. Baker (99.0% min, Cat. No. 7722-64-7) was obtained from Mallinckrodt Baker and used as received.

22. The reaction is analyzed for complete consumption of starting material by ¹H NMR. The reaction will cleanly convert the starting material to product although the time required for the reaction may vary depending on the quality of KMnO₄. It is recommended that the reaction is driven to completion or final purification of the product is extremely difficult.

23. A standard rotary evaporator was used (25 °C bath temperature, 100 mmHg).

24. While it is recommended that efforts be made to ensure this reaction goes to completion, separation of the starting material and purification the product, although difficult, can be performed by flash column chromatography using a wet-packed silica gel column (diameter: 5.5 cm, height: 15 cm). The crude material was loaded as an oil on top of the column and the product eluted with 4 L of 3% MeOH in EtOAc.

25. Analytical data of 5: R_f = 0.45 in 10% MeOH in EtOAc; mp = 99-102 °C; ¹H NMR pdf(500 MHz, CDCl₃) δ: 2.22-2.34 (m, 2 H), 3.16 (t, 2 H), 4.18 (t, 2 H), 7.42 (t, 1 H), 7.62 (d, 1 H), 7.70 (t, 1 H), 8.25 (d, 1 H); ¹³C NMR pdf(125 MHz, CDCl₃) δ: 19.7, 32.7, 46.6, 120.6, 126.4, 126.5, 126.9, 134.3, 149.3, 159.6, 161.1; IR (ATR) 1669, 1609, 1558, 1464, 1424, 1383, 1334, 1322, 770, 693 cm⁻¹; HRMS m/z calcd for C₁₁H₁₀N₂ [M+H]⁺: 187.07931, found 187.08591.

Handling and Disposal of Hazardous Chemicals

The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.

These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.

3. Discussion

o-Aminobenzaldehydes are important building blocks that are widely used in the synthesis of quinolines via the classic Friedländer condensation.² The present procedure describes a convenient and improved approach for the preparation of o-aminobenzaldehyde from o-nitrobenzaldehyde.³ In our evaluation of published methods for the reduction of o-nitrobenzaldehyde,⁴ we found that the use of iron dust in combination with hydrochloric acid provides the best yields of o-aminobenzaldehyde.

As part of a program aimed at developing redox neutral functionalizations of amines,⁵ we have recently reported novel reactions of o-aminobenzaldehydes and secondary amines that give rise to ring-fused aminals.^5a In the course of our attempts to adapt this procedure to a larger scale production of these versatile building blocks, we found that reactions conducted in n-butanol (as opposed to the originally used ethanol) provide faster reaction rates and higher yields on larger scale. In addition, slow addition of o-aminobenzaldehyde via syringe pump further improved the yield of this process. A low concentration of o-aminobenzaldehyde minimizes the well-known propensity of this substrate to undergo self-condensation.⁶

The aminal structural motif⁷ is found in a number of natural products.⁸ In addition, aminals such as 4 represent reduced versions of quinazolinone alkaloids, compounds that have attracted significant attention due to their diverse array of biological activities.⁹ The selective oxidation of ring fused aminal 4, reported herein, provides rapid access to deoxyvasicinone (5).¹⁰^,¹¹ The latter has been reported to possess antimicrobial, anti-inflammatory, and antidepressant activities.¹⁰

References and Notes

Department of Chemistry and Chemical Biology, Rutgers, The State University of New Jersey, Piscataway, NJ 08854, USA, E-mail: . We gratefully acknowledge the National Science Foundation for support of this research (Grant CHE-0911192).
(a) Friedländer, P. Ber. 1882, 15, 2572. (b) Friedländer, P.; Gohring, C. F. Ber. 1883, 16, 1833. For a recent review on the Friedländer reaction, see: (c) Marco-Contelles, J.; Pe´rez-Mayoral, E.; Samadi, A.; Carreiras, M. C.; Soriano, E. Chem. Rev. 2009, 109, 2652-2671.
Smith, L. I.; Opie, J. W. Org. Synth. 1955, Coll. Vol. 3, 56-58; Org. Synth. 1948, 28, 11-13.
For example, see: (a) Hu, Y.-Z.; Zhang, G.; Thummel, R. P. Org. Lett. 2003, 5, 2251-2253. (b) Raitio, K. H.; Savinainen, J. R.; Vepsäläinen, J.; Laitinen, J. T.; Poso, A.; Järvinen, T.; Nevalainen, T. J. Med. Chem. 2006, 49, 2022-2027. (c) Diedrich, C. L.; Haase, D.; Saak, W.; Christoffers, J. Eur. J. Org. Chem. 2008, 1811-1816 and references cited therein.
(a) Zhang, C.; De, C. K.; Mal, R.; Seidel, D. J. Am. Chem. Soc. 2008, 130, 416-417. (b) Murarka, S.; Zhang, C.; Konieczynska, M. D.; Seidel, D. Org. Lett. 2009, 11, 129-132. (c) Zhang, C.; Murarka, S.; Seidel, D. J. Org. Chem. 2009, 74, 419-422. (d) Murarka, S.; Deb, I.; Zhang, C.; Seidel, D. J. Am. Chem. Soc. 2009, 131, 13226-13227. (e) Zhang, C.; Seidel, D. J. Am. Chem. Soc. 2010, 132, 1798-1799. (f) Deb, I.; Seidel, D. Tetrahedron Lett. 2010, 51, 2945-2947.
For examples, see: (a) Jircitano, A. J.; Sommerer, S. O.; Shelley, J. J.; Westcott, B. L., Jr. Acta Crystallogr., Sect. C: Cryst. Struct. Commun. 1994, C50, 445-447. (b) Kolchinski, A. G. Coord. Chem. Rev. 1998, 174, 207-239 and references cited therein.
Hiersemann, M., "Functions bearing two nitrogens." In Comprehensive Organic Functional Group Transformations II, Katritzky, A. R. T., Richard J. K., Eds. Elsevier Ltd.: Oxford, UK, 2005; Vol. 4, pp 411-441.
For selected examples of aminal containing natural products, see: (a) Braekman, J. C.; Daloze, D.; Pasteels, J. M.; Van Hecke, P.; Declercq, J. P.; Sinnwell, V.; Francke, W. Z. Naturforsch., C: Biosci. 1987, 42, 627-630. (b) Hino, T.; Nakagawa, M. "Chemistry and reactions of cyclic tautomers of tryptamines and tryptophans." In Alkaloids, Academic Press: New York, 1988; Vol. 34, pp 1-75. (c) Hajicek, J.; Taimr, J.; Budesinsky, M. Tetrahedron Lett. 1998, 39, 505-508. (d) Crich, D.; Banerjee, A. Acc. Chem. Res. 2007, 40, 151-161.
For a review on quinazolinone alkaloids, see: Mhaske, S. B.; Argade, N. P. Tetrahedron 2006, 62, 9787-9826.
(a) Amin, A. H.; Mehta, D. R. Nature 1959, 184, 1317. (b) Jain, M. P.; Koul, S. K.; Dhar, K. L.; Atal, C. K. Phytochemistry 1980, 19, 1880-1882. (c) Al-Shamma, A.; Drake, S.; Flynn, D. L.; Mitscher, L. A.; Park, Y. H.; Rao, G. S. R.; Simpson, A.; Swayze, J. K.; Veysoglu, T.; Wu, S. T. S. J. Nat. Prod. 1981, 44, 745-747.
For selected examples of recent syntheses of deoxyvasicinone, see: (a) Mhaske, S. B.; Argade, N. P. J. Org. Chem. 2001, 66, 9038-9040. (b) Lee, E. S.; Park, J.-G.; Jahng, Y. Tetrahedron Lett. 2003, 44, 1883-1886. (c) Liu, J.-F.; Ye, P.; Sprague, K.; Sargent, K.; Yohannes, D.; Baldino, C. M.; Wilson, C. J.; Ng, S.-C. Org. Lett. 2005, 7, 3363-3366. (d) Hamid, A.; Elomri, A.; Daich, A. Tetrahedron Lett. 2006, 47, 1777-1781. (e) Bowman, W. R.; Elsegood, M. R. J.; Stein, T.; Weaver, G. W. Org. Biomol. Chem. 2007, 5, 103-113.

Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)

o-Aminobenzaldehyde: Benzaldehyde, 2-amino-; (529-23-7)

o-Nitrobenzaldehyde: Benzaldehyde, 2-nitro-; (552-89-6)

Iron powder; (7439-896)

Pyrrolidine; (123-75-1)

1,2,3,3a,4,9-Hexahydropyrrolo[2,1-b]quinazoline: (495-58-9)

Deoxyvasicinone: Pyrrolo[2,1-b]quinazolin-9(1H)-one, 2,3-dihydro-; (530-53-0)

Potassium permanganate; (7722 -64-7)
