Org. Synth. 2013, 90, 164-173

DOI: 10.15227/orgsyn.090.0164

Potassium tert-Butoxide Mediated Synthesis of Phenanthridinone

Submitted by Bhagat Singh Bhakuni, Kaustubh Shrimali, Amit Kumar, and Sangit Kumar¹*.

Checked by David Hughes

1. Procedure

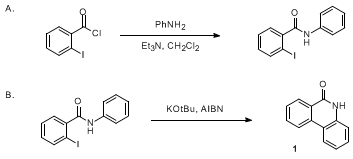

A. 2-Iodo-N-phenylbenzamide. A 500-mL 3-necked round-bottomed flask, equipped with a 3-cm oval PTFE-coated magnetic stirring bar, is charged with 2-iodobenzoyl chloride (16.3 g, 61.1 mmol, 1.0 equiv) and dichloromethane (80 mL) (Note 1). The center joint is fitted with a 125-mL pressure-equalizing addition funnel equipped with a gas inlet adapter connected to a nitrogen line and a gas bubbler. The other two necks are capped with rubber septa; a thermocouple probe is inserted through one of the septa (Note 2). The flask is immersed in an ice-water bath and the contents cooled to 2 °C. Separately, aniline (7.0 g, 75 mmol, 1.2 equiv) and triethylamine (7.6 g, 75 mmol, 1.2 equiv) are added to a 50-mL Erlenmeyer flask and dissolved in dichloromethane (20 mL). This solution is transferred to the addition funnel then added to the cooled, stirred solution of the acid chloride over 20 min, keeping the internal temperature below 10 °C. The ice-bath is removed and the stirred mixture is allowed to warm to 22 °C and maintained at this temperature for 1.5 h (Note 3). The reaction is worked up by addition of dichloromethane (50 mL) and water (150 mL) and transferred to a 1-L separatory funnel. The layers are separated and the organic layer washed with half-saturated brine, then filtered through a bed of anhydrous sodium sulfate (50 g) in a 150-mL sintered glass funnel into a 500-mL round-bottomed flask. The sodium sulfate cake is rinsed with dichloromethane (2 x 30 mL). The filtrate is concentrated by rotary evaporation (40 °C water bath, 200 to 10 mmHg) to afford a tan solid (19.1 g). A 4-cm PTFE-coated oval magnetic stir bar and water (150 mL) are added to the flask and the slurry is stirred for 1 h at room temperature. The slurry is filtered through a 150-mL sintered glass funnel, using water (2 x 40 mL) to rinse the flask and wash the filter cake. The product is dried to constant weight in a vacuum oven (50 °C, 70 mmHg, 14 h) to afford 2-iodo-N-phenylbenzamide as an off- white crystalline solid (17.6 g, 89% yield), (Notes 4 and 5).

B. Phenanthridin-6(5H)-one (1). A 1-L 3-necked round-bottomed flask, equipped with a 4-cm oval PTFE-coated magnetic stirring bar, is charged with 2-iodo-N-phenylbenzamide (7.0 g, 21.6 mmol, 1.0 equiv), 2,2'-azoisobutyryonitrile (AIBN) (0.77 g, 4.7 mmol, 0.2 equiv), potassium t-butoxide (12.0 g, 107 mmol, 5 equiv) and benzene (250 mL) (Notes 6 and 7). The center neck is fitted with a reflux condenser equipped with a gas inlet adapter connected to a nitrogen line and gas bubbler. One outer neck is sealed with a glass stopper; the other neck is capped with a rubber septum through which a thermocouple probe is inserted (Note 2). Using a heating mantle, the slurry is warmed to a gentle reflux (internal temp 81 °C) for 20 h (Notes 8 and 9). An additional portion of AIBN (50 mg, 0.3 mmol, 1.5 %) is added and the mixture refluxed for 5 h (Note 10). The stir bar, reflux condenser and thermocouple probe are removed and the mixture is concentrated by rotary evaporation (40 °C bath temp, 70 to 10 mmHg) to a tan powder (20 g). A 4-cm oval PTFE-coated magnetic stirring bar and water (150 mL) are added to the flask. The suspension is stirred for 1 h at ambient temperature then filtered through a 60-mL sintered glass funnel. Water (2 x 50 mL) is used to rinse the flask and wash the cake. The resulting solid is dried under vacuum (70 mmHg, 40 °C) for 20 h to afford a tan powder (4.04 g) . (Notes 11). The solid is transferred to a 200-mL round-bottomed flask equipped with a 3-cm oval PTFE-coated magnetic stirring bar. Methyl t-butyl ether (MTBE) (40 mL) is added and the slurry is stirred for 1 h at ambient temperature then filtered through a 60-mL sintered glass funnel. The cake is washed with MTBE (2 x 8 mL) then dried under vacuum (70 mmHg, 40 °C) for 4 h to afford phenanthridin-6(5H)-one (1) as a tan powder (3.59 g, 85% yield) (Notes 12 and 13).

2. Notes

1. The following reagents and solvents were used as received for Step A: 2-iIodobenzoyl chloride (Alfa Aesar, 98% purity label, but approx. 95% based on ¹H NMR analysis), aniline (Sigma Aldrich, ACS reagent, 99.5%), triethyl amine (Sigma Aldrich, >99.5%), dichloromethane (Fisher, ACS reagent, stabilized).

2. The internal temperature was monitored using a J-Kem Gemini digital thermometer with a Teflon-coated T-Type thermocouple probe (12-inch length, 1/8 inch outer diameter, temperature range -200 to +250 °C).

3. The reaction was monitored by ¹H NMR. A 0.1 mL aliquot of the reaction mixture was evaporated then dissolved in 1 mL CDCl₃. No starting material (< 2%) was detected - diagnostic peaks, starting material d 8.04-8.10 (m, 2 H); product 7.90 (d, 1 H).

4. 2-iodo-N-phenylbenzamide has the following spectroscopic and physical properties: mp 143-145 °C (lit² mp 143-145°C); ¹H NMR pdf (400 MHz, CDCl₃) δ: 7.12-7.20 (m, 2 H),7.36-7.43 (m, 3 H), 7.61 (br s, 1 H), 7.50 (dd, J = 7.6, 1.2 Hz, 1 H), 7.64 (d, J = 7.9 Hz, 2 H), 7.90 (d, J = 7.9 Hz, 1 H); ¹³C NMR pdf (100 MHz, CDCl₃) δ: 92.6, 120.3, 125.1, 128.5, 128.7, 129.3, 131.7, 137.7, 140.2, 142.3,167.44; MS (EI, 70 eV) m/z (relative intensity): 323 (M⁺, 52), 231 (M⁺- PhNH, 100), 203 (27), 76 (34); IR (plate) cm^-1: 3310, 1652, 1523, 1441, 1323, 1254, 1013, 739. GC purity: 97% (t_R = 16.5 min; conditions: Agilent DB35MS column; 30 m x 0.25 mm; initial temp 60 °C, ramp at 20 °C/min to 280 °C, hold 15 min).

5. An 87% yield was obtained at half scale.

6. The following reagents and solvents were used as received for Step B: potassium t-butoxide (Acros, 98%), AIBN (Sigma Aldrich, 98%), benzene (Fisher, certified ACS, thiophene-free, 99.7%), and methyl t-butyl ether (Sigma-Aldrich, ACS reagent, >99%).

7. Five equiv of KO^tBu are essential for complete conversion.

8. Efficient stirring is required since the reaction mixture becomes thick during the early phase of the reaction. If the mixture sets up and stirring stops, the solids should be broken up with a spatula.

9. The reaction was monitored by TLC using 3:7 EtOAc-heptane , R_f = 0.32 for starting material and 0.18 for product. The major by-product, benzanilide, R_f = 0.35 (typical level 4-5%) nearly co-elutes with the starting material. To verify complete conversion, a 0.1 mL aliquot was evaporated then dissolved in DMSO-d₆ and analyzed by ¹H NMR. The N-H protons are diagnostic (d 11.7 for phenanthridinone, 10.25 for benzanilide, and 10.4 for 2-iodo-N-phenylbenzamide). Other distinguishing peaks include 7.76 (d, 2H) for benzanilide and 7.70 (d, 2H) for 2-iodo-N-phenylbenzamide.

10. Additional AIBN is charged if the reaction contains more than 5% unreacted starting material.

11. Based on ¹H NMR analysis, the crude material typically contains 1-2% unreacted starting material, 4-5% benzanilide, and low levels of unknown impurities. The product is nearly insoluble in MTBE and can be readily purified with high recovery by this slurry procedure.

12. Phenanthridin-6(5H)-one (1) has the following spectroscopic and physical properties: mp 294-296 °C (lit³ mp 291-293 °C); ¹H NMR pdf (400 MHz, DMSO-d₆) δ: 7.26 (dt, J = 1.2, 7.6 Hz, 1 H) 7.37 (dd, J = 1.1, 8.1 Hz, 1 H), 7.49 (dt, J = 1.1, 7.3 Hz, 1 H), 7.65 (dt, J = 1.0, 8.0 Hz, 1 H), 7.87 (dt, J = 1.5, 7.2 Hz, 1 H), 8.32 (dd, J = 1.1, 8.0 Hz, 1 H), 8.39 (dd, J = 1.0, 8.2 Hz, 1 H), 8.51 (d, J = 8.2 Hz, 1 H), 11.70 (bs, 1 H). ¹³C NMR pdf (100 MHz, DMSO-d₆) δ: 116.1, 117.5, 122.2, 122.6, 123.2, 125.7, 127.4, 127.9, 129.5, 132.7, 134.2, 136.6, 160.8; HRMS (ESI) m/z 196.0858, calcd for C₁₃ H₉ O N + H⁺: 196.0757; . MS (EI, 70 eV), m/z (relative intensity): 195 (M⁺, 100), 167 (29), 166 (19), 140 (10), 139 (12), 83 (12); IR (plate), cm^-1 : 3416, 1631, 1360, 1151, 748, 726. GC purity: 99% (t_R = 16.1 min; conditions: Agilent DB35MS column; 30 m x 0.25 mm; initial temp 60 °C, ramp at 20 °C/min to 280 °C, hold 15 min). A wt % purity of 96% was determined by ¹H NMR (with a 10 s pulse delay) using 1,4-dimethoxybenzene as internal standard. Sample preparation: ca. 20 mg of 1,4-dimethoxybenzene and ca 30 mg of product were accurately weighed, then dissolved in 5 mL DMSO-d₆. Each of the 8 protons of the product were integrated and compared to the integration of the 6.8 ppm singlet of 1,4-dimethoxybenzene.

13. To avoid the use of benzene, the checker carried out reactions in toluene and in tetrahydropyran (based on a report that THP was an effective solvent for radical reactions, Yasuda, H.; Uenoyama, Y.; Nobuta, O.; Kobayashi, S.; Ryu, I. Tetrahedron Lett. 2008, 49, 367-370). Neither of these solvents was as effective as benzene, as summarized in the table below. The reactions in toluene were sluggish at 80 °C, with 10-12% unreacted starting material after 50-57 h even with an additional AIBN charge at the 24 h time point, and generated 12 % benzanilide from proto-deiodination. The reactions in THP went to full completion in 20 h, with or without AIBN, but generated 18-23% benzanilide.

^aReactions were purified by MTBE slurry as described in Step B. Products from reactions in THP required two slurry procedures to reduce benzanilide levels to <2%.


Solvent	Scale (g)	Temp	(^oC)	Time	(h)	AIBN (equiv)	SM %Benzanilide %	Isolated yield^a

Benzene	7.0	81	25	0.2	1.5	4	85
Benzene	3.5	81	25	0.2	2	4	83
Toluene	4.1	80	57	0.3	12	12	62
Toluene	3.5	80	50	0.3	10	12	68
THP	3.5	85	20	0.2	0	18	71
THP	3.5	85	20	0	0	23	61

Handling and Disposal of Hazardous Chemicals

The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.

These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.

3. Discussion

Phenanthridinones and related biaryl lactams are privileged cores present in many alkaloids and pharmaceutically relevant organic molecules (Chart Figure 1).⁴ As a result, numerous methods for their syntheses have been described, many involving multiple steps.⁵ Palladium-catalyzed biaryl C-C coupling is one of thea key steps in most of the reported methodologies, most of which require. protection of the N-H bond. A method that avoids a protection/ deprotection strategy and expensive palladium catalyst is highly desirable.

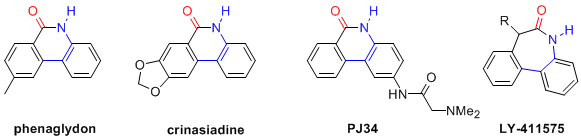

Figure 1. Biaryl Lactams

Potassium t-butoxide-mediated C-C bond formation for the synthesis of biaryls has been explored by a number of groups.⁶ Recently, we reported a carbon-carbon biaryl coupling reaction via C-H activation of anilines for the construction of six-membered phenanthridinones and seven-membered dibenzoazepinone biaryl lactams.⁷ Treatment of 2-iodo-N-arylbenzamide substrates with potassium t-butoxide using catalytic AIBN or 1,10-phenanthroline in benzene solvent gave 81-91% yields of biaryl lactams (Table 1).

KO^tBu alone is not fully effective for the reaction, as only 35% of product was formed in 24 h with 60% unreacted substrate recovered. When 0.2 equiv of the radical initiator AIBN was employed, complete conversion occurred within 24 h and the coupled product was obtained in excellent yield.

Substrates with electron-withdrawing groups, such as fluoride, difluoride, chloride, and bromide, and the electron-donating groups, such as methyl, methoxy, and dimethoxy, on either aryl ring were tolerated under our reaction conditions. Furthermore, the scope of the reaction was extended to other aryl substrates, including naphthalene and thiophene-based 2-halo-arylamide substrates.⁷ Regarding the aryl halide, a brief study indicated best yields were obtained with the iodo and bromo substrates (Table 1, entries 1 and 2). The chloride also reacted but gave a moderate yield (49%) of cyclized product.⁷

This metal-free synthesis of phenanthridinones offers several advantages over traditional Pd-catalyzed biaryl couplings with regard to cost, sustainability and lack of toxicity. In addition, the required 2-iodo-N-phenylbenzamide substrates are readily accessible by coupling of 2-iodobenzoyl chloride with an arylamine.

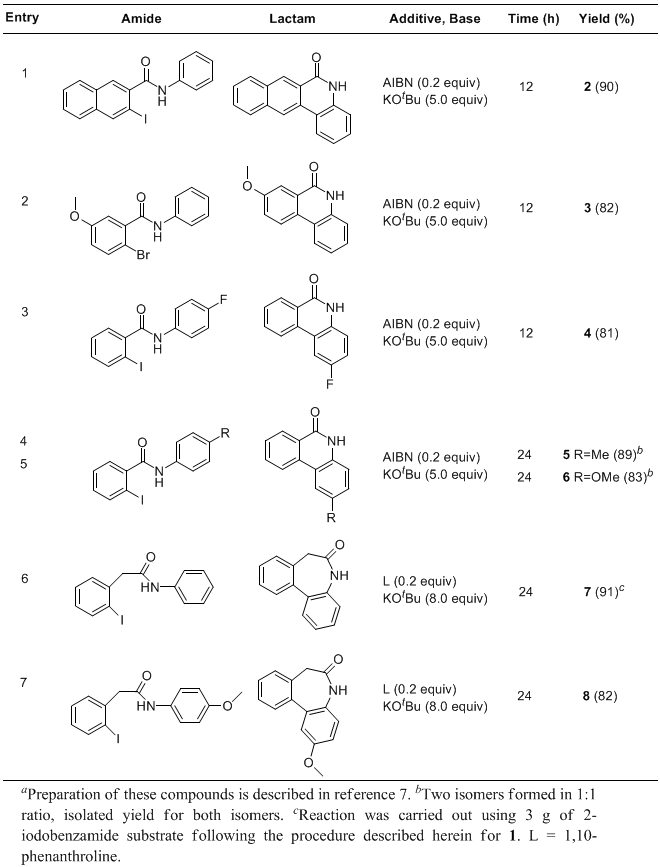

Table 1. Synthesis of Phenanthridinones and Dibenzoazepinones^a
