Org. Synth. 2013, 90, 350-357
DOI: 10.15227/orgsyn.090.0350
Simplified Preparation of Dimethyldioxirane (DMDO)
Submitted by Douglass F. Taber
1,*, Peter W. DeMatteo and Rasha A. Hassan.
Checked by John L. Wood and John A. Enquist, Jr.
1. Procedure
Caution! Reactions and subsequent operations involving peracids and peroxy compounds should be run behind a safety shield. For relatively fast reactions, the rate of addition of the peroxy compound should be slow enough so that it reacts rapidly and no significant unreacted excess is allowed to build up. The reaction mixture should be stirred efficiently while the peroxy compound is being added, and cooling should generally be provided since many reactions of peroxy compounds are exothermic. New or unfamiliar reactions, particularly those run at elevated temperatures, should be run first on a small scale. Reaction products should never be recovered from the final reaction mixture by distillation unless all residual active oxygen compounds (including unreacted peroxy compounds) have been destroyed. Decomposition of active oxygen compounds may be accomplished by the procedure described in Korach, M.; Nielsen, D. R.; Rideout, W. H. Org. Synth. 1962, 42, 50 (Org. Synth. 1973, Coll. Vol. 5, 414). Dimethyldioxirane is a volatile peroxide and should be treated as such. The preparation and all reactions of the dioxirane should be carried out in a hood.
A. Dimethyldioxirane. Distilled H2O (20 mL), acetone (30 mL), and NaHCO3 (24 g, 0.285 mol) are combined in a 1-L round-bottomed flask and chilled in an ice/water bath with magnetic stirring (oblong stirbar, 3 cm x 1 cm x 1.5 cm) for 20 min (Note 1). After 20 min, stirring is halted and Oxone (25 g, 0.0406 mol) is added in a single portion (Note 2). The flask is loosely covered and the slurry is stirred vigorously for 15 min while still submerged in the ice bath. After 15 min, the stir bar is removed from the reaction flask and rinsed with a small portion of distilled water.
The flask containing the reaction slurry is then attached to a rotary evaporator with the bath at room temperature. The bump bulb (250 mL) (Note 3) is chilled in a dry ice/acetone bath and a vacuum of 155 mmHg is applied via a benchtop diaphragm pump and an accompanied in-line vacuum regulator. During this process, the flask is rotated vigorously (210 rpm) to prevent bumping of the slurry into the bump trap (Note 4). After 15 min, the bath temperature is raised to 40 °C over the course of 10 min. When the bath reaches 40 °C, the distillation is halted immediately via releasing the vacuum and raising the flask from the heated water bath.
The pale yellow
acetone solution of
DMDO is decanted from the bump bulb directly into a graduated cylinder to measure the total volume of the solution (an average of 25 mL) and then the solution is dried over
Na2SO4. The
Na2SO4 is removed by filtration and rinsed with 10 mL of
acetone. Titration of the obtained
DMDO solution is then performed according to the procedure of Adam, et al.
2 (
Note 5). Results consistently show 2.1-2.3 mmol total
DMDO in the solution, giving a final concentration typically in the range of 60-65 mM (
Note 6). The
DMDO solution was used immediately following titration.
2. Notes
1. The checkers used distilled water obtained from Colorado State University's distilled water system. The checkers purchased
acetone (purity of 99.7%) and
NaHCO3 (purity of 99.9%) from Fisher Scientific and used both directly without further purification.
2. The checkers employed
oxone monopersulfate purchased from Aldrich, with purity unspecified, and used directly without further purification.
3. A standard rotary evaporator bump bulb like the one illustrated below was used.

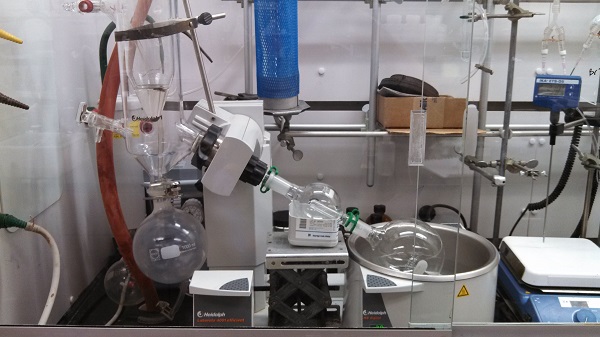

4. The entire setup is illustrated in the accompanying photograph. The checkers found it necessary to constantly refresh the dry ice/acetone bath with additional dry ice and
acetone throughout the distillation. Otherwise, cooling of the bump trap diminished significantly, and the desired
DMDO solution was recovered in a much lower volume.
5. The following procedure is a representative example of the method employed by the checkers to assay the concentration of the obtained
DMDO solution:
3c In a 1 mL volumetric test tube, a 0.7 M solution of
thioanisole in acetone-
d6 is prepared, to a total volume of 1 mL. A 0.6 mL portion of this solution is transferred to a 20 mL scintillation vial and chilled to ca. 10 °C in a
1,4-dioxane bath chilled with a small quantity of dry ice. Upon reaching 10 °C, 3.0 mL of the obtained
DMDO solution is added to the
thioanisole solution. The resulting solution is stirred for 10 min and then a portion of the solution is added directly to an NMR tube. Analysis of the
1H NMR via signal integration of the sulfoxide phenyl protons at δ 7.6 - 7.9 ppm against the
thioanisole phenyl protons at δ 7.1 - 7.3 ppm allows for determination of the ratio of oxidized product to excess
thioanisole. From this data, concentration of the larger
DMDO solution could be calculated.
The submitter's original procedure for assaying the concentration of the DMDO sample is as follows: The entire liquid collected in the bump bulb is transferred to a round-bottomed flask with
CH2Cl2. A weighed excess amount of trans-stilbene is added. After 24 h, the solvent is removed under high vacuum, and the 1H NMR spectrum of the residue is recorded. All ten protons of trans-stilbene and the arene protons of the epoxide appear around d 7.0, while the epoxide methine protons of the product appear at d 3.95. Knowing how much trans-stilbene had been added, it is possible to calculate the amount of DMDO that had been generated.
6. In order to determine the efficacy of the prepared
DMDO solution, the checkers performed a reaction wherein a sample of
trans-stilbene was oxidized as follows: To a glass vial containing
trans-stilbene (97.0 mg, 0.538 mmol, 1.0 equiv) is added 9.3 mL of a previously prepared and assayed solution of
DMDO (65.6 mM in
acetone, 0.610 mmol, 1.1 equiv). The resulting solution is stirred for 16 h, and then solvent is removed in
vacuo. The resulting residue is dissolved in
CH2Cl2 and dried over
Na2SO4. After filtration and removal of solvent
in vacuo,
trans-stilbene oxide (104 mg, 98 %) is isolated in essentially pure form.
Trans-stilbene oxide has the following spectral properties:
1H NMR
pdf(400 MHz, CDCl
3) d: 3.90 (s, 2 H), 7.42-7.37 (m, 10 H);
13C NMR (100 MHz, CDCl
3) δ: 62.96, 125.6, 128.4, 128.7, 137.3; IR (solid) cm
-1: 3036, 2989, 1603, 1493, 1461, 1285, 1072, 846, 795. Exact mass, Calculated for C
14H
13O (M+H): 197.0966. Found: 197.0961. Anal. Calcd. for C
14H
12O: C, 85.68. H, 6.16. Found: C, 85.47. H, 6.24.
Handling and Disposal of Hazardous Chemicals
The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
In the development and checking of these procedures, every effort has been made to identify and minimize potentially hazardous steps. The Editors believe that the procedures described in this article can be carried out with minimal risk if performed with the materials and equipment specified, and in careful accordance with the instructions provided. However, these procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
Dimethyldioxirane (
DMDO), easily prepared by the reaction of
Oxone with
acetone, has been used in organic synthesis for many years.
3 In particular, the "
acetone free" form, prepared by partitioning the
acetone solution of
DMDO between
CH2Cl2 and aqueous phosphate buffer, is prized for its ability to generate even very sensitive epoxides under neutral conditions.
4 This is clearly illustrated by the conversion of
1 to
3 by way of epoxide
2, as reported by Rainer (Scheme 1).
5a

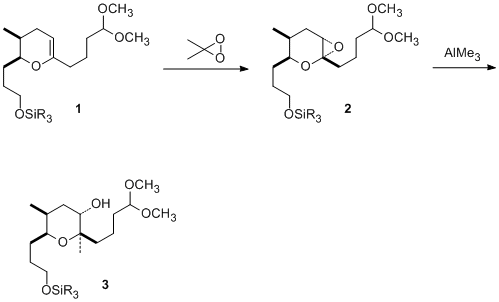

Scheme 1. Preparation of a reactive epoxide with DMDO
Despite this utility,
DMDO has not commonly been used for laboratory scale epoxidations, the commercial reagent MCPBA being widely preferred. The reluctance to employ
DMDO may likely be due to the complicated cryogenic purification prescribed
3a for the preparation of the reagent as a solution in
acetone.
We have found that practical quantities of DMDO in acetone can be prepared by simple rotary evaporation of the Oxone/NaHCO3/acetone slurry with collection of the distillate in the bump bulb of the rotary evaporator. Using a 1-L round-bottomed flask, we could routinely prepare 2.1-2.3 mmol DMDO.
Titration was accomplished by the addition of a measured amount of the
DMDO solution to a known quantity of
thioanisole (
Note 5), with
1H NMR analysis of the resulting sulfide/sulfoxide ratio affording data on the concentration of the prepared solution. The
DMDO solution prepared as described was used in the epoxidation of 100 mg of
trans-stilbene in near quantitative yield.
6
Appendix
Chemical Abstracts Nomenclature
(Registry Number)
DMDO; dimethyldioxirane (74087-85-7)
Oxone (2) (70693-62-8)
|
