Practical and Efficient Synthesis of N-Formylbenzotriazole
Submitted by Mhairi Matheson, Adele E. Pasqua, Alan L. Sewell and Rodolfo Marquez.
*1
Checked by Diptarka Hait, Jonathan Truong, and Mohammad Movassaghi.
1. Procedure
A 500-mL, 3-necked, round-bottomed flask (Note 1) equipped with a 5 cm Teflon-coated cylindrical magnetic stir bar, an internal thermometer, a rubber septum, and a Vigreux condenser capped with a rubber septum with an argon inlet, is charged with acetic anhydride (26.5 mL, 28.6 g, 280 mmol, 1.0 equiv) (Note 2). The contents are cooled to –10 °C by means of a Dewar filled with isopropanol and an immersion cooler (Neslab CC 100) (Note 3), then 100% formic acid (21.1 mL, 25.8 g, 560 mmol, 2.0 equiv) (Note 4) is added in portions to the flask over 3 min via a measuring cylinder [Caution: exotherm from –10 °C to 1 °C]. The resulting colorless reaction mixture is then heated in an oil bath on a hot plate to 43 °C (internal temperature) over 25 min. The reaction mixture is stirred vigorously for 3 h (42–44 °C, internal temperature) and monitored by 1H NMR analysis (Note 5).

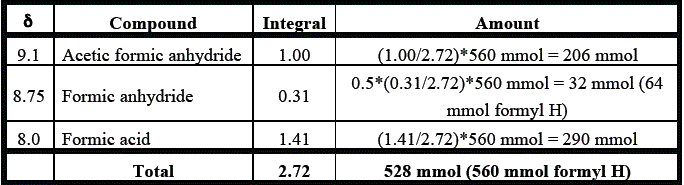

1H NMR analysis of crude reaction aliquots is employed to determine the quantity of acetic formic anhydride in the reaction mixture (18.1 g, 206 mmol). Formic anhydride (2.4 g, 32 mmol) was also present (Notes 6 and 7). The crude anhydride mixture is then cooled to 5 °C over 30 min using an ice bath. While maintaining a positive pressure of argon, the Vigreux condenser is removed and replaced with a rubber septum with an argon inlet.
A 500-mL, two-necked round-bottomed flask, equipped with a 5 cm Teflon-coated magnetic stir bar, an internal thermometer, and a rubber septum with an argon inlet, is charged with benzotriazole (23.8 g, 200 mmol, 0.84 equiv relative to formylating agents (Notes 6 and 8). Anhydrous tetrahydrofuran (100 mL) is added to the benzotriazole via a measuring cylinder and the resulting light yellow solution is cooled to –15 °C (internal temperature) over 20 min by means of an ice/salt water bath. The crude mixed anhydride is then added to the benzotriazole solution via cannula over 12 min, ensuring that the internal temperature does not exceed –5 °C (Note 9). Upon completion of addition, the reaction mixture is cooled to –15 °C (internal temperature) by means of a Dewar filled with isopropanol and an immersion cooler (Neslab CC 100) (Note 3) and vigorously stirred until completion by TLC analysis (2 h) (Note 10), at which point the reaction mixture is thick and cream colored.
The reaction mixture is transferred to a single-necked, 1-L round-bottomed flask and concentrated to dryness by rotatory evaporation (40 °C bath temperature, 20 mmHg). Chloroform (50 mL) (Notes 11 and 12) is added to the flask and the solution is concentrated again (40 °C bath temperature, 20 mmHg). The dilution and concentration procedure is repeated 3 times, yielding a white solid. The solid is dried at room temperature, under 0.75 mmHg for 12 h. The white solid is ground with a glass rod and dried at room temperature, under 0.75 mmHg for a further 48 h to afford 29.3 g (99.7%) of N-formylbenzotriazole (Notes 13, 14, and 15).

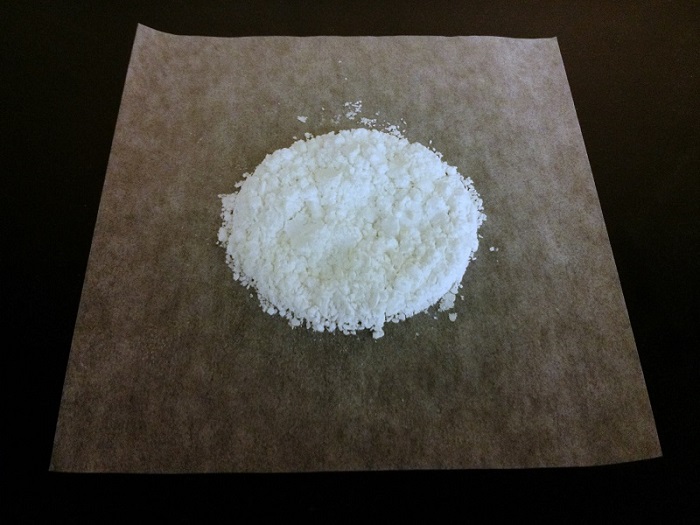

2. Notes
1. All glass equipment was either flame dried (checkers) or oven dried (submitters) and then maintained under a positive pressure of argon during the course of the reaction. Thermometers and rubber septa were used without any form of drying.
2. Both the submitters and checkers used
acetic anhydride (99%) and
formic acid (99%) obtained from Acros Organics (used as received).
3. The submitters report the use of an ice/salt bath is sufficient for temperature control at this stage.
4. The submitters recommend the use of a syringe for transfer of the
formic acid. An excess of
formic acid is necessary to achieve maximum conversion of
acetic anhydride into
acetic formic anhydride.
5. The reaction was monitored by
1H-NMR
pdf analysis of crude reaction aliquots in CDCl
3 until the amount of
acetic anhydride was minimal. The checkers observed that the reaction was essentially complete in 1.5 h (reached equilibrium with no significant further change in composition)
6.
1H NMR integrations were measured for the formyl H’s and equated to the total amount of formyl group supplied. The spectra were obtained within 15 minutes of removal from the reaction mixture.
7.
Acetic formic anhydride was maintained under a positive pressure of argon to prevent hydrolysis. See
Org. Synth,
1970,
50, 1 for an alternative synthetic route to
acetic formic anhydride and for purification details.
8. Both the submitters and checkers obtained
benzotriazole (99%, B11400-100G) from Sigma-Aldrich Inc. and used it as received. The submitters obtained
tetrahydrofuran from Sigma Aldrich (CHROMASOLV
® Plus, for HPLC, ≥99.9%, inhibitor-free, 34865) and purified though a Pure Solv 400-5MD solvent purification system (Innovative Technology, Inc.). The checkers obtained
tetrahydrofuran from J.T. Baker (Cycletaner
TM) and purified through a Phoenix SDS Large Capacity solvent system (JC Myer Solvent Systems).
9. Slow addition led to a large amount of the acetyl product.
10. The reaction was monitored by TLC analysis on aluminium sheets pre-coated with silica (Merck Silica Gel 60 F
254) using 30%
ethyl acetate in (40-60) petroleum ether. Spot A =
benzotriazole (R
f = 0.2), spot B =
N-formylbenzotriazole (R
f = 0.5). Middle lane was taken during the course of the reaction.
11. The submitters purchased
chloroform from Fisher Chemical (C/4960/17) and the checkers obtained
chloroform from Sigma Aldrich (CHROMASOLV
® Plus, for HPLC, ≥99.9%, contains 0.5-1%
ethanol as stabilizer, 650471)- used as obtained.
12. Removal of the volatile reaction components is best achieved by azeotroping the crude reaction product mixture with
chloroform before the product is dried on a vacuum line.
13.
N-Formylbenzotriazole was obtained in a 300:1 ratio compared to the
N-acetylbenzotriazole side product as determined by
1H NMR
pdf,
pdf analysis.
14. The product exhibits the following physical and spectroscopic properties: mp 93–94 °C. IR:ν
max/cm
-1; 3105, 1727, 1605, 1594.
1H NMR
pdf(400 MHz, CDCl
3) δ: 7.57 (1 H, ddd,
J = 8.3, 7.2, 1.0 Hz), 7.70 (1 H, ddd,
J = 8.2, 7.2, 1.0 Hz), 8.15 (1 H, dt,
J = 8.3, 0.9 Hz), 8.24 (1 H, d,
J = 8.2 Hz), 9.86 (1H, s).
13C NMR
pdf(100 MHz, CDCl
3) δ: 113.6, 120.4, 127.0, 129.9, 130.8, 146.6, 159.8. HRMS [M+H]
+calculated for C
7H
5NO: 148.0506, found 148.0505. This characterization matches the data reported in the literature.
2 Anal. Calcd. for C
7H
5N
3O (147.13): C, 57.14; H, 3.43; N, 28.56. Found: C, 57.06; H, 3.48; N, 28.75.
15. The submitters report that
N-formylbenzotriazole stored in the freezer showed no decomposition by
1H NMR analysis over a 6-month period. The submitters reported the formation of 59.5 g (98.5%) of product when the reaction is performed at double the reported scale.
