Checked by Jonathan Ruchti and Erick M. Carreira

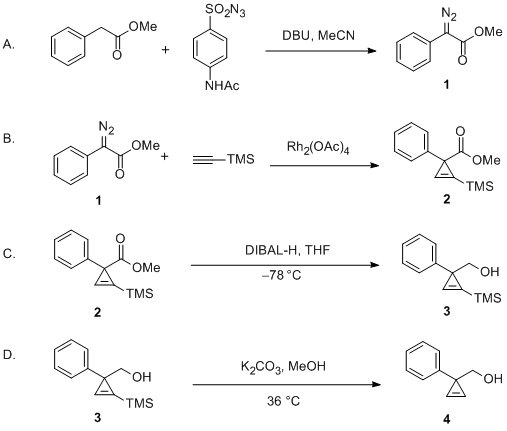

1. Procedure
2. Notes
1.
THF and
acetonitrile (all ACS, Reag. Ph Eur) were purchased from Merck and dried with a SP-1 solvent purification system from LC Technology Solutions.
Methanol (ACS, Reag. Ph Eur) was obtained from Merck and used as received. The following solvents were used for flash column chromatography and during work-up (all laboratory grade, all used as received):
diethyl ether (purchased from Univar), hexanes (purchased from Thommen-Furler),
dichloromethane (purchased from EGT Chemie) and
ethyl acetate (purchased from Thommen-Furler). The submitters used the following solvents:
THF (99.9%) was obtained from Fisher Scientific and distilled from a blue solution of benzophenone ketyl.
Acetonitrile (99.9%) was obtained from Fisher Scientific, and dried with columns packed with activated neutral alumina using the solvent purification system described by Bergman.
2 Methanol (99.9%) was purchased from Fisher Scientific and was used as received for the preparation of
4 (reaction D).
Diethyl ether (laboratory grade), hexanes (99.9%),
dichloromethane (99.9%) and
ethyl acetate (99.9%) were purchased from Fisher and used as received.
2.
4-Acetamidobenzenesulfonyl azide3 (>98%) was purchased from TCI and used as received. The submitters purchased
4-acetamidobenzenesulfonyl azide (97%) from Sigma-Aldrich and used it as received.
3.
Methyl phenylacetate (≥99%) was purchased from Sigma-Aldrich and used as received. The submitters purchased
methyl phenylacetate (99%) from Sigma-Aldrich and used it as received.
4.
1,8-Diazabicyclo[5.4.0]undec-7-ene (
DBU) (≥97%) was purchased from Fluorochem and used as received. The submitters purchased
DBU (98%) from Acros Organics and used it as received.
5.
DBU was added in 2 mL portions in intervals of one minute.
6. Care should be taken to avoid bumping during the rotary evaporation.
7. Flash column chromatography (9.0 cm diameter) was performed using 300 g of silica gel [Fluka, pore size 60 Å, 230 - 400 mesh particle size]. The top surface of the column was covered with sand (0.5 cm). The residue was loaded onto the column as a neat liquid. A small amount of 2%
diethyl ether in hexanes (5 mL) was used assist the final transfer of the material to the column. The column was eluted with 2.2 L of 2%
diethyl ether in hexanes, and 250 mL fractions were collected. Fractions #7–14 contained the product. TLC analysis during flash column chromatography was performed using 10%
ethyl acetate in hexanes as the eluent. (R
f of
1 = 0.6, visualized with UV light; R
fSM (methyl phenylacetate) = 0.5, visualized with UV light).
8. A yield of 75% was obtained when the reaction was performed on half-scale.
9. Physical properties of
14 are as follows: R
f 0.6 (10%
EtOAc in hexanes, UV detection).
1H NMR
pdf(400 MHz, CDCl
3) δ: 3.86 (s, 3 H), 7.19 (t,
J = 7.4 Hz, 1 H), 7.39 (m, 2 H), 7.49 (d,
J = 7.4 Hz, 2 H).
13C NMR
pdf(101 MHz, CDCl
3) δ: 52.0, 63.3, 124.0, 125.5, 125.8, 129.0, 165.6. IR (film) 3060, 3026, 2953, 2845, 208
methyl phenylacetate2, 1699, 1598, 1498, 1434, 1352, 1287, 1247, 1192, 1153, 1051, 1026, 909, 754, 692, 669, 632 cm
-1. HRMS (EI)
m/z calcd for C
9H
8N
2O
2 [M]
+ 176.0580, found 176.0583. Anal. calcd. for C
9H
8N
2O
2: C, 61.36; H, 4.58; N, 15.90. Found: C, 61.28; H, 4.80; N, 16.06.
10. The submitters observed that purified
1 can also contain
methyl phenylacetate (<5%) by
1H NMR analysis; however, the presence of
methyl phenylacetate was not observed by the checkers. The submitters report that rigorous removal of all traces of
methyl phenylacetate is not necessary. The cyclopropenation of
trimethylsilylacetylene (Step B) has been performed by the submitters with methyl diazophenylacetate contaminated with as much as 10%
methyl phenylacetate, without a significant decrease in yield.
11.
Rhodium(II) acetate dimer (≥97%) was purchased from Fluorochem and used as received. The submitters purchased
rhodium(II) acetate dimer (99%) from Colonial Metals and used it as received.
12.
Trimethylsilylacetylene (≥97%) was purchased from Fluorochem and used as received. The submitters purchased
trimethylsilylacetylene (98%) from GFS Chemicals and used it as received.
13. Distillation was performed under vacuum (0.5 mmHg) using a short path distillation unit. The receiver flask (100 mL) was immersed in acetone/dry ice bath (–78 °C).
14. Flash column chromatography (9.0 cm diameter) was performed using 176 g of silica gel [Fluka, pore size 60 Å, 230 - 400 mesh particle size]. The top surface of the column was covered with sand (0.5 cm). The residue was loaded onto the column as a neat liquid. Hexanes was used to assist the final transfer of the material to the column. The column was sequentially eluted with 10%
dichloromethane in hexanes (1.1 L), 25%
dichloromethane in hexanes (1 L), 33%
dichloromethane in hexanes (1 L), 40%
dichloromethane in hexanes (1 L) and 50%
dichloromethane in hexanes (1.2 L). During chromatography, 200 mL fractions were collected. Fractions 3-26 contained the product and were combined. In fractions 3-8 a less polar, minor impurity was observed by TLC analysis. TLC analysis during flash column chromatography was performed using 30%
ethyl acetate in hexanes as the eluent. (R
f = 0.75, visualized with ceric ammonium molybdate stain).
15. A yield of 73% was obtained when the reaction was performed on half-scale.
16. Physical properties of
25,6 are as follows: R
f 0.75 (30%
EtOAc in hexanes, visualized with ceric ammonium molybdate stain).
1H NMR
pdf(400 MHz, CDCl
3) δ: 0.20 (s, 9 H), 3.67 (s, 3 H), 7.15–7.21 (m, 1 H), 7.25–7.29 (m, 4 H), 7.44 (s, 1 H);
13C NMR
pdf(101 MHz, CDCl
3) δ: –1.3, 31.5, 52.0, 116.0, 120.0, 126.1, 128.0, 128.4, 142.6, 176.2; IR (film) 3119, 3059, 3025, 2957, 2902, 1945, 1731, 1704, 1602, 1495, 1446, 1434, 1289, 1251, 1220, 1042, 1024, 1012, 844, 791, 758, 698 cm
-1. HRMS (ESI)
m/z calcd for C
14H
19O
2Si [M+H]
+ 247.11454 found 247.1144. Anal. calcd. For C
14H
18O
2Si: C, 68.25; H, 7.36. Found: C, 68.05; H, 7.22.
17.
DIBAL-H (1M in
THF) was purchased from Sigma-Aldrich and used as received.
18. With this slow rate of addition, the internal temperature was maintained below –70 °C (to avoid cyclopropene reduction) during the addition of
DIBAL-H.
19. Care should be exercised during the addition, as the quenching of
DIBAL-H is exothermic.
20. Flash column chromatography (9.0 cm diameter) was performed using 187 g of silica gel [Fluka, pore size 60 Å, 230 - 400 mesh particle size]. The top surface of the column was covered with sand (0.5 cm). The residue was loaded onto the column as a neat liquid. 5%
Ethyl acetate in hexanes was used assist the final transfer of the material to the column. The column was sequentially eluted with 5%
ethyl acetate in hexanes (1.7 L), 9%
ethyl acetate in hexanes (1 L), 17%
ethyl acetate in hexanes (600 mL). During chromatography, 200 mL fractions were collected. Fractions 4-14 contained the product. TLC analysis during flash column chromatography was performed using 30%
ethyl acetate in hexanes as the eluent. (R
f = 0.54, visualized with ceric ammonium molybdate stain).
21. A reaction run on half-scale provided a product yield of 88%.
22. Physical properties of
37 are as follows: mp 35 °C; R
f 0.54 (30%
EtOAc in Hexanes, with ceric ammonium molybdate stain was used to visualize TLC plates).
1H NMR
pdf(400 MHz, CDCl
3) δ: 0.18 (s, 9 H), 1.18 (t,
J = 5.7 Hz, 1 H), 3.99 (dd,
J = 11.0, 5.3 Hz, 1 H), 4.16 (dd,
J = 11.1, 5.7 Hz, 1 H), 7.12–7.20 (m, 3 H), 7.25–7.30 (m, 2 H), 7.70 (s, 1 H);
13C NMR
pdf(100 MHz, CDCl
3) δ: –0.9, 30.2, 68.9, 123.6, 124.1, 125.3, 126.1, 128.1, 146.9; IR (film) 3368, 3084, 3058, 3023, 2957, 2898, 2871, 1692, 1600, 1578, 1495, 1408, 1250, 1065, 1012, 866, 842, 757, 698 cm
-1. HRMS (EI)
m/z calcd for C
12H
15 OSi [M-CH
3]
+ 203.0887, found 203.0884. Anal. calcd. For C
13H
18OSi: C, 71.50; H, 8.31. Found: C, 71.39; H, 8.41.
23. Anhydrous
potassium carbonate (EP) was purchased from Brenntag Schweizerhall and used as received. The submitters purchased anhydrous
potassium carbonate (99.9%) from Fisher Scientific and used it as received.
24. Flash column chromatography (6.0 cm diameter) was performed using 144 g of silica gel [Fluka, pore size 60 Å, 230 - 400 mesh particle size]. The top surface of the column was covered with sand (0.5 cm). The residue was loaded onto the column as a neat liquid.
Diethyl ether was used assist the final transfer of the material to the column. The column was sequentially eluted with 10%
diethyl ether in hexanes (1 L), 14%
diethyl ether in hexanes (1 L), 25%
diethyl ether in hexanes (400 mL), and 50%
diethyl ether in hexanes (1.2 L). During chromatography, 80 mL fractions were collected. Fractions 28-43 contained the product. TLC analysis during flash column chromatography was performed using 50%
diethyl ether in hexanes as the eluent. (R
f = 0.32, visualized with ceric ammonium molybdate stain).
25. When the reaction was performed on approximately half-scale, the isolate yield of pure product was 80%.
26. Physical properties of
45 are as follows: mp 58–59 °C; R
f 0.32 (50%
diethyl ether in hexanes, visualized with ceric ammonium molybdate stain).
1H NMR
pdf(400 MHz, CDCl
3) δ: 1.54 (m, 1 H), 4.08 (d,
J = 5.9 Hz, 2 H), 7.19–7.7.27 (m, 3 H), 7.31–7.34 (m, 4 H);
13C NMR
pdf(101 MHz, CDCl
3) δ: 29.2, 68.0, 113.2, 125.9, 126.4, 128.3, 145.8. IR (film) 3217, 3102, 3050, 2923, 2880, 1645, 1599, 1575, 1493, 1473, 1446, 1307, 1222, 1175, 1067, 1009, 985, 969, 898, 757, 698, 635, 565, 533, 471 cm
-1. HRMS (EI)
m/z calcd for C
10H
9O [M-H]
+ 145.0648, found 145.0647. Anal. calcd. For C
10H
10O: C, 82.16; H, 6.89. Found: C, 82.20; H, 6.75.
3. Discussion
