Org. Synth. 2015, 92, 267-276

DOI: 10.15227/orgsyn.092.0267

Phosphorus(III)-Mediated Reductive Condensation of α-Keto Esters and Protic Pronucleophiles

Submitted by Wei Zhao and Alexander T. Radosevich^*1

Checked by Jared T. Moore and Brian M. Stoltz

1. Procedure

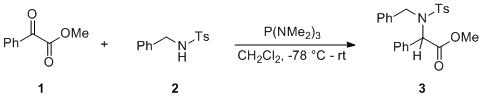

A. Methyl 2-(N-Benzyl-4-Methylphenylsulfonamido)-2-Phenylacetate (3). 4-Methyl-N-(phenylmethyl)benzenesulfonamide (2) (8.49 g, 32.5 mmol, 1.1 equiv) is placed in an oven-dried, 1-L 3-necked round-bottomed flask equipped with a magnetic stir bar (1.5 × 3.5 cm, Teflon-coated, egg-shaped). The center neck of the reaction flask is fitted with a rubber septum-capped 250-mL pressure-equalizing addition funnel. One of the side necks is fitted with a rubber septum and the other is fitted with a nitrogen inlet (Figure 1). The reaction vessel is then purged with nitrogen atmosphere by three evacuation-backfill cycles (Note 1). Dry dichloromethane (296 mL, 0.1 M) is added to the round-bottomed flask via cannula transfer from an oven-dried 1-L Schlenk flask (Note 2). Methyl benzoylformate (1) (4.20 mL, 4.85 g, 29.6 mmol, 1.0 equiv) is added to the solution through the side neck (Note 3). The addition funnel is then charged with tris(dimethylamino)phosphine (5.90 mL, 5.30 g, 32.5 mmol, 1.1 equiv) through the septum on top (Note 4). Dichloromethane (33 mL) is added to the addition funnel in the same way using a 60-mL syringe and an oven-dried steel needle. The reaction flask is cooled to -78 °C with a dry ice-acetone bath in an appropriately sized cooling vessel (Note 5). The tris(dimethylamino)phosphine solution is added dropwise to the flask over 20-30 min while stirring (Notes 6 and 7). Upon complete addition of the tris(dimethylamino)phosphine solution, the cooling bath is removed and the reaction mixture is stirred for 2 h, during which time it warms to ambient temperature (Note 8).

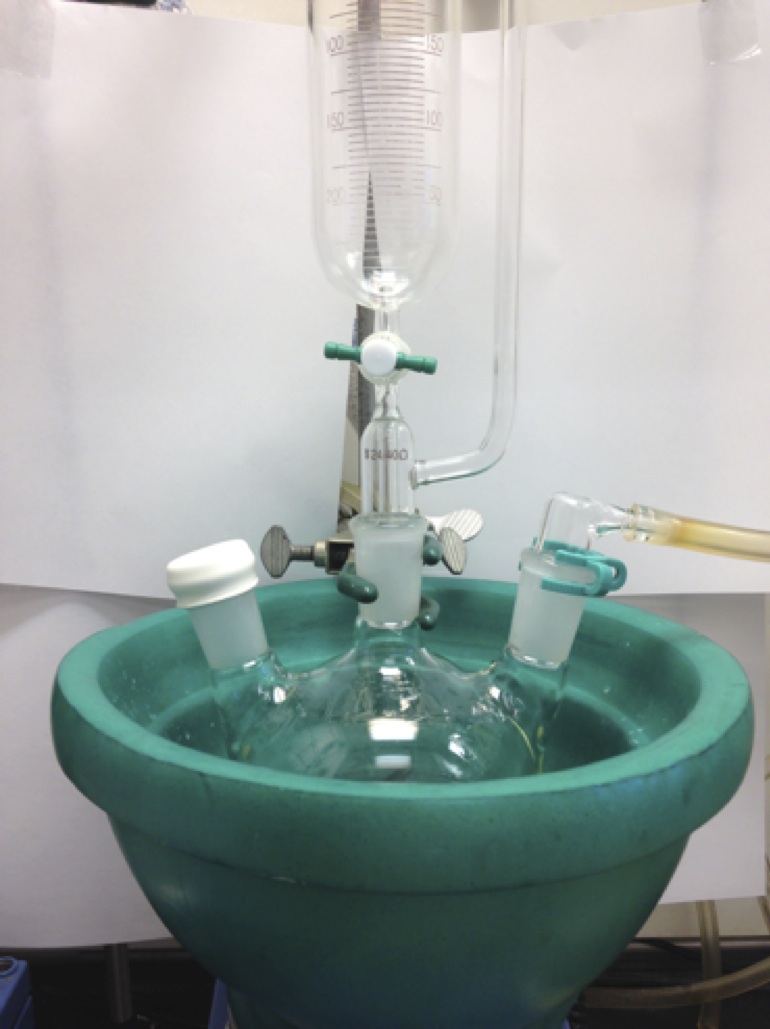

Figure 1. Reaction Set-up

When the reaction reaches completion as determined by TLC (Note 9), the dropping funnel is removed and distilled water (300 mL) is added to the reaction mixture in one portion. The biphasic mixture is then transferred to a 1-L separatory funnel (Note 10). The organic layer is separated, washed with saturated aqueous sodium chloride solution (3 × 400 mL), dried over anhydrous sodium sulfate (150 g) for 15 min (Note 11). The sodium sulfate is filtered and the solution is concentrated in vacuo using a rotary evaporator (ca. 100 mmHg, water bath temperature 30 °C). The crude residue is purified by silica gel flash column chromatography using EtOAc and hexanes as eluent (Notes 12, 13, 14 and 15), yielding the title compound as an air and moisture stable white amorphous solid (10.7 g, 88%) (Notes 16 and 17) (Figure 2).

Figure 2. Amorphous white product

2. Notes

1. 4-Methyl-N-(phenylmethyl)benzenesulfonamide was synthesized according to the known procedure: Coste, A.; Couty, F.; Evano, G. Org. Synth. 2010, 87, 231.

2. Dichloromethane was purchased from Fischer Scientific (D138-4) and degassed by bubbling argon for 1.5 h before passing through an activated alumina column using a Glass Contour solvent drying system. The solvent was collected in an oven-dried 1-L Schlenk flask , which had been purged with argon atmosphere by three evacuation-backfill cycles.

3. Methyl benzoylformate (>97.0%) was purchased from TCI and used as received.

4. Tris(dimethylamino)phosphine (97%) was purchased from Alfa Aesar and used as received.

5. 4-Methyl-N-(phenylmethyl)benzenesulfonamide may not be completely dissolved at this temperature.

6. The rate of the addition was held at approximately 2 drops per second.

7. The mixture was stirred at 600 rpm throughout the reaction.

8. The reaction should remain colorless to faint yellow. A bright yellow color usually indicates the formation of side products.

9. Thin layer chromatograph was performed on silica gel 60 F₂₅₄TLC plate (EMD Millipore TLC Silica Gel 60 Glass Plates, purchased from Fischer Scientific) with 1:6 EtOAc:hexanes as eluent. The following R_f values were observed (visualized under 254 nm UV light): R_f (methyl benzoylformate): 0.40; R_f (4-methyl-N-(phenylmethyl)benzene-sulfonamide): 0.14; R_f (product): 0.22. Picture of TLC plate is shown below (left lane: methyl benzoylformate; middle lane: reaction mixture; right lane: 4-methyl-N-(phenylmethyl)benzenesulfonamide) (Figure 3).

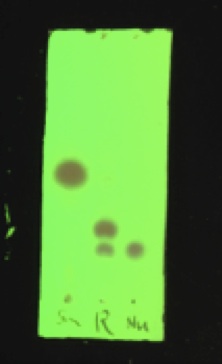

Figure 3. Image of TLC Analysis

10. Extractions should be performed carefully, since HMPA is produced as a byproduct of the reaction.

11. Sodium chloride and sodium sulfate were purchased from VWR and used as received.

12. Silica gel (230-400 mesh) was purchased from SiliCycle and used as received.

13. Ethyl acetate and hexanes were purchased from Fischer Scientific and used as received.

14. Dichloromethane (5 mL) was added to the crude mixture. The crude product was loaded onto a column packed with silica gel slurry in 1:10 EtOAc:hexanes. Column is 8 cm in diameter, height of silica gel is 27 cm. After 1 L of initial elution with 1:10 EtOAc:hexanes, 1:8 EtOAc:hexanes (1,800 mL), 1:7 EtOAc:hexanes (1,600 mL) and 1:6 EtOAc:hexanes (2,500 mL) were collected in 90 mL fractions.

15. The product was isolated as a white amorphous solid and had the following spectral characteristics: ¹H NMR pdf(500 MHz, CDCl₃) δ: 2.44 (s, 3 H), 3.60 (s, 3 H), 4.42 (d, J = 16.2 Hz, 1 H), 4.65 (d, J = 16.2 Hz, 1 H), 5.80 (s, 1 H), 6.87 (dd, J = 7.7, 1.8 Hz, 2 H), 7.01-7.06 (m, 3 H), 7.10-7.15 (m, 2 H), 7.17-7.23 (m, 3 H), 7.25-7.28 (m, 2 H), 7.61-7.65 (m, 2 H). ¹³C NMR pdf(125 MHz, CDCl₃) δ: 21.7, 49.4, 52.3, 63.2, 126.8, 127.5, 127.8, 128.0, 128.8, 128.9, 129.4, 129.6, 133.5, 136.9, 137.5, 143.6, 170.6. IR (neat film, NaCl): 3031, 2951, 1747, 1598, 1496, 1454, 1437, 1342, 1206, 1162, 1091, 1029, 932, 814, 747, 696, 661 cm^-1. HRMS (MM: ESI/APCI): m/z calcd for C₂₃H₂₄NO₄S [M+H]⁺: 410.1426. Found: 410.1421. Anal. Calcd for C₂₃H₂₃NO₄S: C, 67.46; H, 5.66; N, 3.42; O, 15.63; S, 7.83. Found: C, 67.40; H, 5.70; N, 3.39; O, 15.73; S, 7.85.

16. The melting point of the solid was determined to be 84-86 °C. The submitters report a mp of 96-98 °C. All other characterization data was identical for products produced by the checkers and the submitters.

17. Reaction run on one-half scale resulted in a white amorphous solid (5.22 g, 85% yield).

Working with Hazardous Chemicals

The procedures in Organic Syntheses are intended for use only by persons with proper training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011; the full text can be accessed free of charge at http://www.nap.edu/catalog.php?record_id=12654). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.

In some articles in Organic Syntheses, chemical-specific hazards are highlighted in red "Caution Notes" within a procedure. It is important to recognize that the absence of a caution note does not imply that no significant hazards are associated with the chemicals involved in that procedure. Prior to performing a reaction, a thorough risk assessment should be carried out that includes a review of the potential hazards associated with each chemical and experimental operation on the scale that is planned for the procedure. Guidelines for carrying out a risk assessment and for analyzing the hazards associated with chemicals can be found in Chapter 4 of Prudent Practices.

The procedures described in Organic Syntheses are provided as published and are conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.

3. Discussion

Phosphorus(III) reagents are known to undergo reaction with 1,2-dicarbonyl compounds to give adducts of formal P-addition to the carbonyl oxygen (Kukhtin-Ramirez reaction).² We have shown that these Kukhtin-Ramirez adducts further react to incorporate a range of N-, O-, and C-based protic pronucleophiles with expulsion of a phosphine oxide by-product.³^,⁴ The process likely proceeds in stepwise fashion, initiated by proton transfer from the protic pronucleophile to the Kukhtin-Ramirez adduct, followed by Arbuzov-like displacement of the phosphine oxide leaving group. This reaction sequence therefore represents a convenient one pot process for access to a range of α-functionalized carbonyl compounds from readily available reagents and precursors.³^,⁴

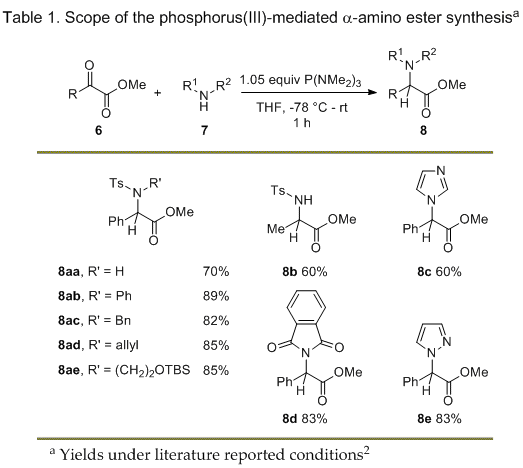

The synthetic method is exemplified in the above procedure, which demonstrates the synthesis of methyl 2-(N-benzyl-4-methylphenylsulfonamido)-2-phenylacetate (3), an α-amino ester derivative.⁵ By direct reductive construction of the α-C-N bond, our approach takes advantage of the wide available α-keto esters as starting materials, and provides an operationally simple and chemoselective alternative to transamination and reductive amination strategies.⁶^,⁷ Furthermore, since this method does not involve the intermediacy of imine equivalents, useful C-N bonds from N-pronucleophiles that do not form imines (e.g. azoles) can be successfully synthesized using this method (Table 1).⁷

The reaction is tolerant of a range of solvents (CH₂Cl₂, THF, PhMe), but the use of dichloromethane reliably provides the highest yields and streamlines the aqueous workup on the laboratory scale. The use of commercially available P(NMe₂)₃ results in the formation of O=P(NMe₂)₃ (i.e. HMPA), a water soluble byproduct that is readily eliminated by aqueous extraction. In view of potential handling concerns resulting from the toxicity of HMPA, we note that the use of alternative phosphorous triamide reagents, specifically tris(1-pyrrolidinyl)phosphine (which generates a less toxic phosphorus(V) oxide by-product), provide similarly satisfactory results (Scheme 1, 1.8 mmol scale).⁸

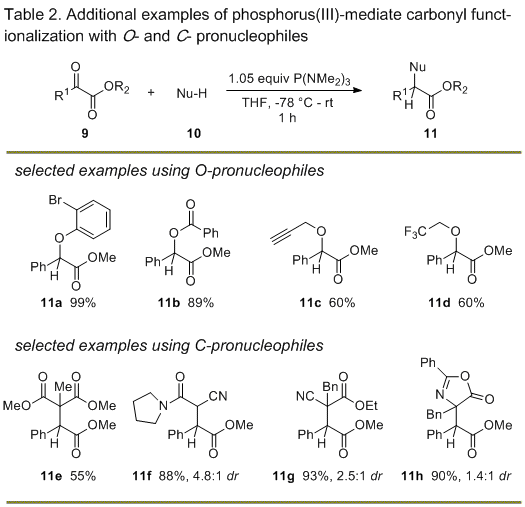

As noted in our previous studies, the scope of the reaction includes a diverse of O-based (phenols, carboxylic acids and some alcohols) and C-based (readily enolizable 1,3-dicarbonyls and related derivatives) protic pronucleophiles. The selection of protic pronucleophile is bracketed by pK_a, with only those species capable of proton transfer to the Kukhtin-Ramirez adduct (pK_a ca. 25-27 in DMSO) being reactive under these conditions (Table 2).

References and Notes

Department of Chemistry, Pennsylvania State University, University Park, PA 16802, radosevich@psu.edu. We thank NIGMS (GM114547), Alfred P. Sloan Foundation, and the Pennsylvania State University for funding.
Osman, F. H.; El-Samahy, F. A. Chem. Rev. 2002, 102, 629-678.
Miller, E. J.; Zhao, W.; Herr, J. D.; Radosevich, A. T. Angew. Chem. Int. Ed. 2012, 51, 10605-10609.
Zhao, W.; Fink, D. M.; Labutta, C. A.; Radosevich, A. T. Org. Lett. 2013, 15, 3090-3093.
Williams, R. M. Synthesis of Optically Active α-Amino Acids, Pergamon, Oxford, 1989.
Genet, J. P.; Greck, C.; Lavergne, D. In Modern Amination Methods; Ricci, A., Ed.; Wiley-VCH: Weinheim, Germany, 2000; Chapter 3.
(a) Abel-Magid, A. F.; Mehrman, S. J. Org. Process. Res. Dev. 2006, 10, 971-1031. (b) Gomez, S.; Peters, J. A.; Maschmeyer, T. Adv. Synth. Catal. 2002, 344, 1037-1057. (c) Baxter, E. W.; Reitz, A. B. Org. React. 2002, 59, 1.
(a) Coste, J.; Le-Nguyen, D.; Castro, B. Tetrahedron Lett. 1990, 31, 205-208. (b) Coste, J.; Frerot, E.; Jouin, P. Tetrahedron Lett. 1991, 32, 1967-1970. (c) Kang, F.-A.; Sui, Z.; Murray, W. V. J. Am. Chem. Soc. 2008, 130, 11300-11302.

Appendix
Chemical Abstracts Nomenclature (Registry Number)

4-Methyl-N-(phenylmethyl)benzenesulfonamide: Benzenesulfonamide, 4-methyl-N-(phenylmethyl)-; (2) (1576-37-0)

Dichloromethane: Methane, dichloro-; (75-09-2)

Methyl benzoylformate: Benzeneacetic acid, α-oxo, methyl ester; (1) (15206-55-0)

Tris(dimethylamino)phosphine: Phosphorus triamide, N,N,N,N',N',N'-hexamethyl-; (1608-26-0)

Sodium Chloride: sodium chloride; (7647-14-5)

Sodium Sulfate: sulfuric acid sodium salt (1:2); (7757-82-6)

	Wei Zhao is from Jinan, Shandong Province, P. R. China. He completed his BSc at Xiamen University, working with Prof. Pei-Qiang Huang and Prof. Xiao Zheng. In fall 2010 he joined Penn State Chemistry working with Prof. Alexander Radosevich. He is now a senior graduate student with research focused on redox catalysis at geometrically constrained organophosphorus compounds.
	Alex Radosevich is from Waukegan, IL and received his B.S. from Notre Dame (2002). He obtained a Ph.D. from UC Berkeley (2007) working with Prof. Dean Toste. Following postdoctoral research at MIT with Prof. Dan Nocera, he joined the department of chemistry at Penn State in 2010 as an assistant professor, where his research has focused on the design, development, and implementation of new synthetic methodology.
	Jared Moore is from Libertyville, IL and attended Cal Poly, San Luis Obispo where he received his B.S. (2009). He obtained a Ph.D. from UC Davis in 2014 in the laboratory of Prof. Jared Shaw, where his research was focused on the development of new synthetic methods. Jared is currently an NIH postdoctoral research fellow at Caltech where he investigates the total synthesis of meroterpene natural products with Prof. Brian M. Stoltz.
