Org. Synth. 2016, 93, 210-227
DOI: 10.15227/orgsyn.093.0210
Preparation of 1,5-Dioxaspiro[5.5]undecan-3-one
Submitted by Robert A. Craig, II, Russell C. Smith, Beau P. Pritchett, Benzi I. Estipona, and Brian M. Stoltz*1
Checked by Marcel Weiss and Mohammad Movassaghi

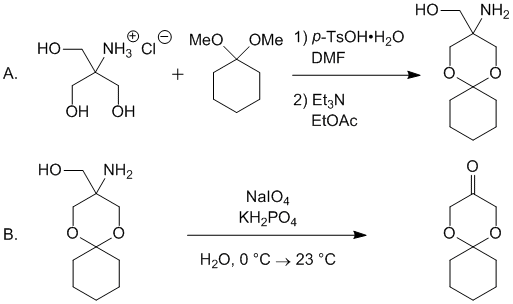

1. Procedure
A. 3-Amino-3-(hydroxymethyl)-1,5-dioxaspiro[5.5]undecane. A 1-L single-necked, round-bottomed flask is equipped with an egg-shaped, Teflon®-coated magnetic stirring bar (3.5 cm x 1.5 cm), capped with a rubber septum, flame-dried under vacuum, and cooled under an argon atmosphere (Note 1). After cooling to ambient temperature (21-23 °C), to the flask is added anhydrous N,N-dimethylformamide (DMF, 365 mL, 0.78 M) via cannula. Subsequently, tris(hydroxymethyl)aminomethane hydrochloride (45.0 g, 286 mmol, 1.00 equiv) (Note 2 and 3) is added in a single portion as white crystalline solid. The reaction vessel is immediately resealed with a rubber septum under inert atmosphere and stirring is commenced (Figure 1). To this white suspension is added 1,1-dimethoxycyclohexane (50.0 mL, 47.4 g, 329 mmol, 1.15 equiv) via syringe in one portion (Note 4). Lastly, to the off-white slurry is added para-toluenesulfonic acid monohydrate (p-TsOH•H2O, 1.63 g, 8.57 mmol, 0.03 equiv) as a solid in one portion quickly, immediately replacing the rubber septum to maintain an inert atmosphere.
Figure 1. Heterogeneous Reaction Mixture at Initiation of Transketalization
After stirring for 18 h at ambient temperature, the off-white heterogeneous reaction mixture becomes a completely homogenous, pale yellow solution (Figure 2, Note 5). The reaction flask is then placed in an oil bath and the rubber septum is replaced with a short path distillation head with a hollow water-jacketed column 6.0 cm in length, equipped with a thermometer and a 500-mL single-necked, round-bottomed receiving flask being cooled in an ice-water bath (Figure 3, Note 6). The volatiles are distilled off under high vacuum with heating (Note 7) and vigorous stirring (Note 8) to furnish an extremely viscous off-white semi-solid (Figure 4).

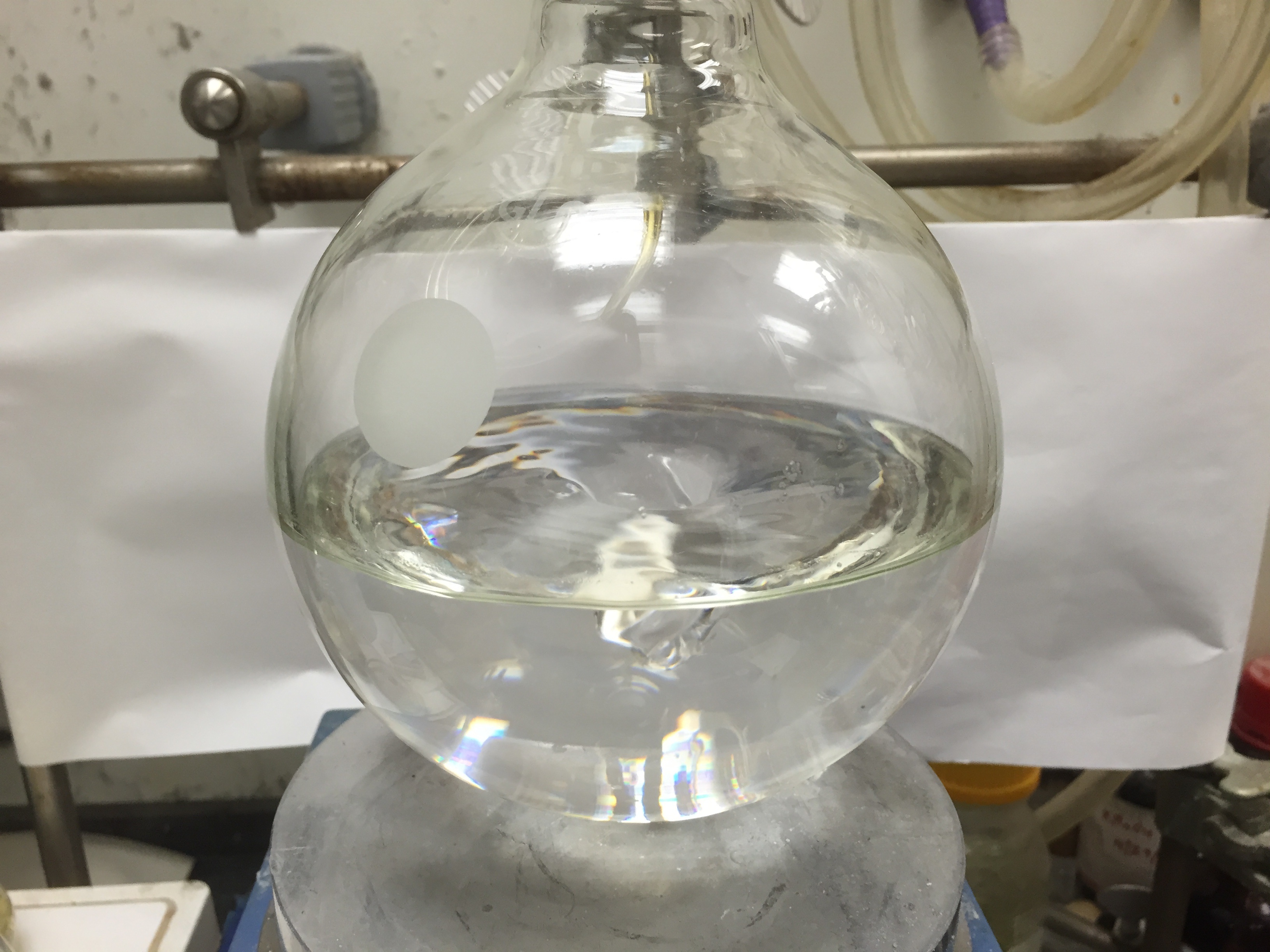

Figure 2. Homogeneous Reaction Mixture at Completion of Transketalization

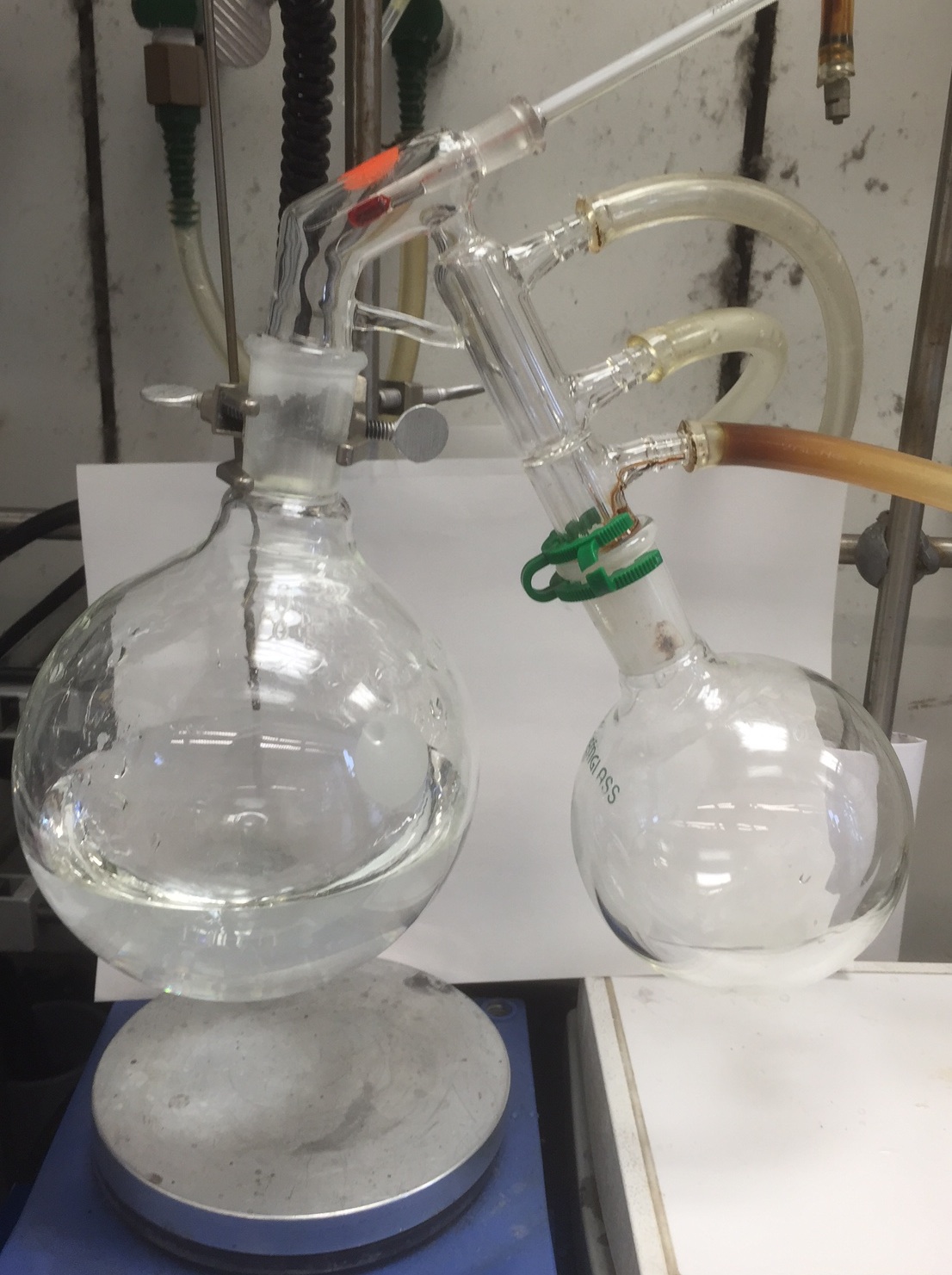

Figure 3. Distillation Apparatus Before Introduction of Heating and Cooling Baths (Baths Omitted for Visual Clarity)
This residue is triturated with diethyl ether (700 mL), resulting in the precipitation of a white solid (Note 9). The heterogeneous suspension is then filtered through a medium porosity sintered glass funnel (Note 10). The solid is then washed with a single 100 mL portion of ethyl acetate. The lumpy white solid is then briefly dried for 2-3 min by pulling air through the sintered glass funnel and then ground into a fine powder using a mortar and pestle (Note 11). Once thoroughly ground, the white solid is triturated with three 100 mL portions of ethyl acetate in a medium porosity sintered glass funnel (Note 10). The resultant white powder is dried under high vacuum (23 °C, 0.40 mmHg) for 12 h to afford an amorphous white solid (63 g).

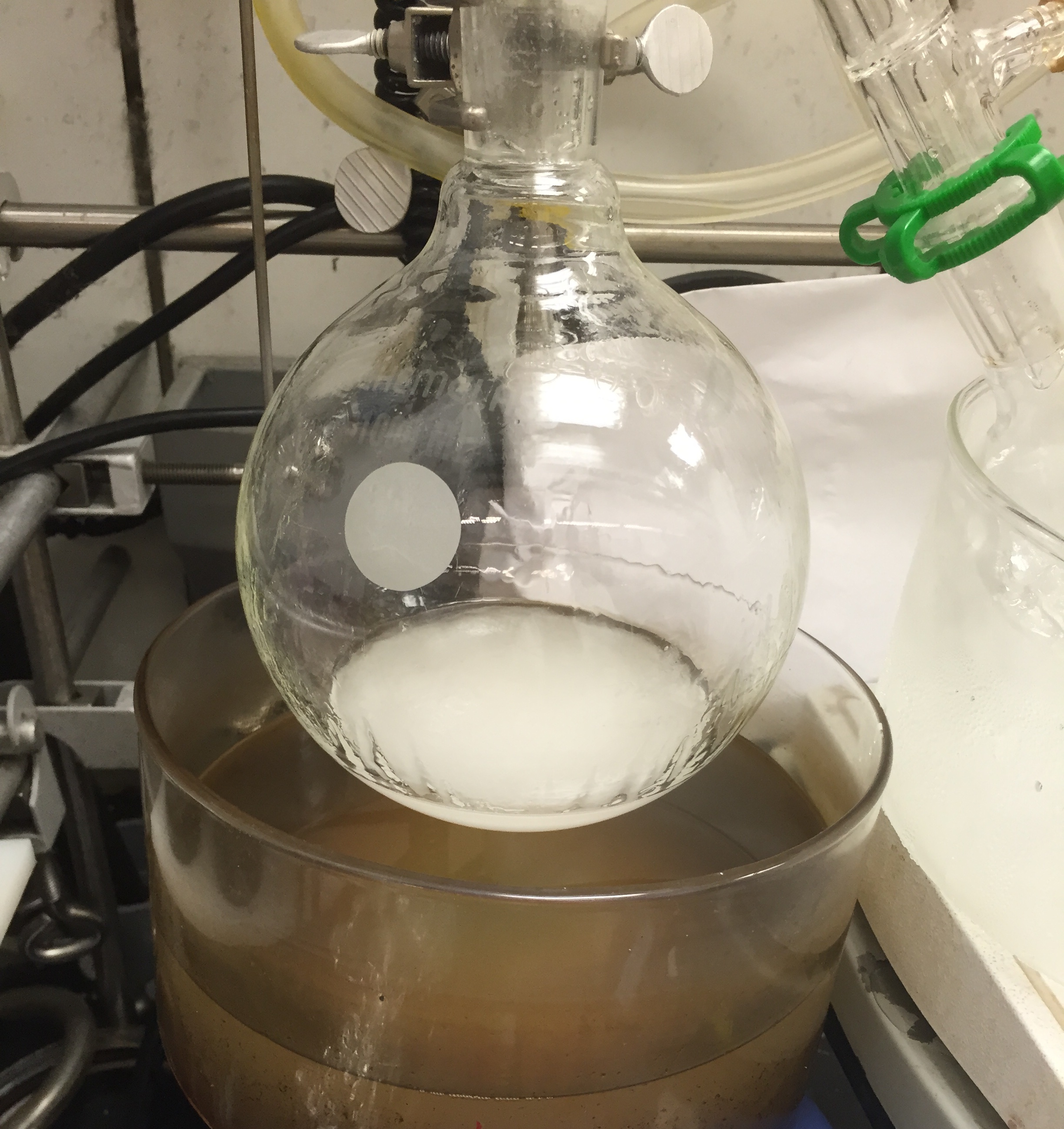

Figure 4. Semi-Solid Product After Distillation
Following trituration, this white solid (63 g) is split into two equal portions and each portion is added to a separate 1-L single-necked, round-bottomed flask equipped with an egg-shaped, Teflon®-coated magnetic stirring bar (3.5 cm x 1.5 cm) (Note 12). To each of these round-bottomed flasks is added ethyl acetate (EtOAc, 400 mL) (Note 13) and stirring commenced. To each white, heterogeneous suspension is then added triethylamine (Et3N, 23.7 mL, 179 mmol) (Note 14) dropwise over 6 min. After 12 h, each white, heterogeneous reaction mixture is filtered through a medium porosity sintered glass funnel (Note 10), collecting the filtrate in a 1-L round-bottomed flask. For each portion, the filter cake ("Solid A") is subsequently washed with ethyl acetate (4 x 50 mL). The washes are combined with the filtrate, concentrated by rotary evaporation (23 °C, 13 mmHg), and dried under high vacuum (23 °C, 0.40 mmHg) for 12 h to afford a fluffy white solid (the free-base amino alcohol, "Solid B"). The two filter cakes (Solid A) are then combined in a 1-L single-necked, round-bottomed flask equipped with an egg-shaped, Teflon®-coated magnetic stirring bar (3.5 cm x 1.5 cm) and suspended in ethyl acetate (250 mL) with stirring. Triethylamine (18.0 mL, 129 mmol) (Note 15) is subsequently added dropwise over 3 min. The pure white suspension is stirred vigorously for 24 h and then filtered through a medium porosity sintered glass funnel (Note 10). The filter cake is then washed with ethyl acetate (4 x 75 mL). The filtrate and washes are added to the flask containing Solid B and then concentrated by rotary evaporation (23 °C, 13 mmHg) to furnish 3-amino-3-(hydroxymethyl)-1,5-dioxaspiro[5.5]undecane (42.6 g, 74% combined yield over the two iterations, melting point: 91-92 °C) as an amorphous white solid (Notes 16 and 17).
B. 1,5-Dioxaspiro[5.5]undecan-3-one. 3-Amino-3-(hydroxymethyl)-1,5-dioxaspiro[5.5]undecane (31.4 g, 156 mmol, 1.00 equiv) (Note 18) is added to a 2-L three-necked, round-bottomed flask equipped with an egg-shaped, Teflon®-coated magnetic stirring bar (3.5 cm x 1.5 cm) and suspended in water (520 mL). The flask is fitted with a pressure-equalizing 250-mL addition funnel capped with a rubber septum in the middle neck, a rubber septum equipped with a thermometer in one of the side necks, and capped with a rubber septum in the third neck (Figure 5). Subsequently, potassium dihydrogen phosphate (KH2PO4, 25.5 g, 187 mmol, 1.20 equiv) is added. Stirring is commenced and the heterogeneous white suspension is cooled in an ice-water bath (Note 19). To the resultant stirred heterogeneous reaction mixture is added a solution of sodium (meta)periodate (NaIO4, 33.4 g, 156 mmol, 1.00 equiv) as a pale yellow solution in water (520 mL, 0.30 M) dropwise over 3 h through the addition funnel (Note 20). The reaction is then allowed to stir for 1.0 h before removing the ice-water bath (Note 21) and allowing the homogenous, pale yellow reaction mixture to warm slowly. The starting material is completely consumed 3.0 h after removing the cooling bath as determined by TLC (Note 22, Figure 6). Anhydrous sodium thiosulfate (24.7 g, 156 mmol, 1.00 equiv) (Note 23) is then immediately added in one portion (Note 24). The solution is allowed to stir for 20 min at which time the pale yellow homogenous reaction mixture is transferred to a 2-L separatory funnel. The aqueous reaction mixture is extracted with dichloromethane (12 x 150 mL) (Note 25). The organic layers are combined in a 2-L Erlenmeyer flask equipped with a cylindrical, Teflon®-coated magnetic stirring bar (7.4 cm x 1.2 cm) and dried over 400 g of anhydrous sodium sulfate for 20 min with stirring. The organic solution is subsequently filtered through grade 4 filter paper and concentrated in vacuo (23 °C, 50 mmHg) and under high vacuum (23 °C, 0.4 mmHg, 20 min) to afford 1,5-dioxaspiro[5.5]undecan-3-one (25.5 g, 96% yield, boiling point: 82-88 °C, 0.60 mmHg) as a pale yellow oil (Notes 26, 27, 28, 29, and 30).
Figure 5. Oxidative Cleavage Reaction Set-up Before Cooling

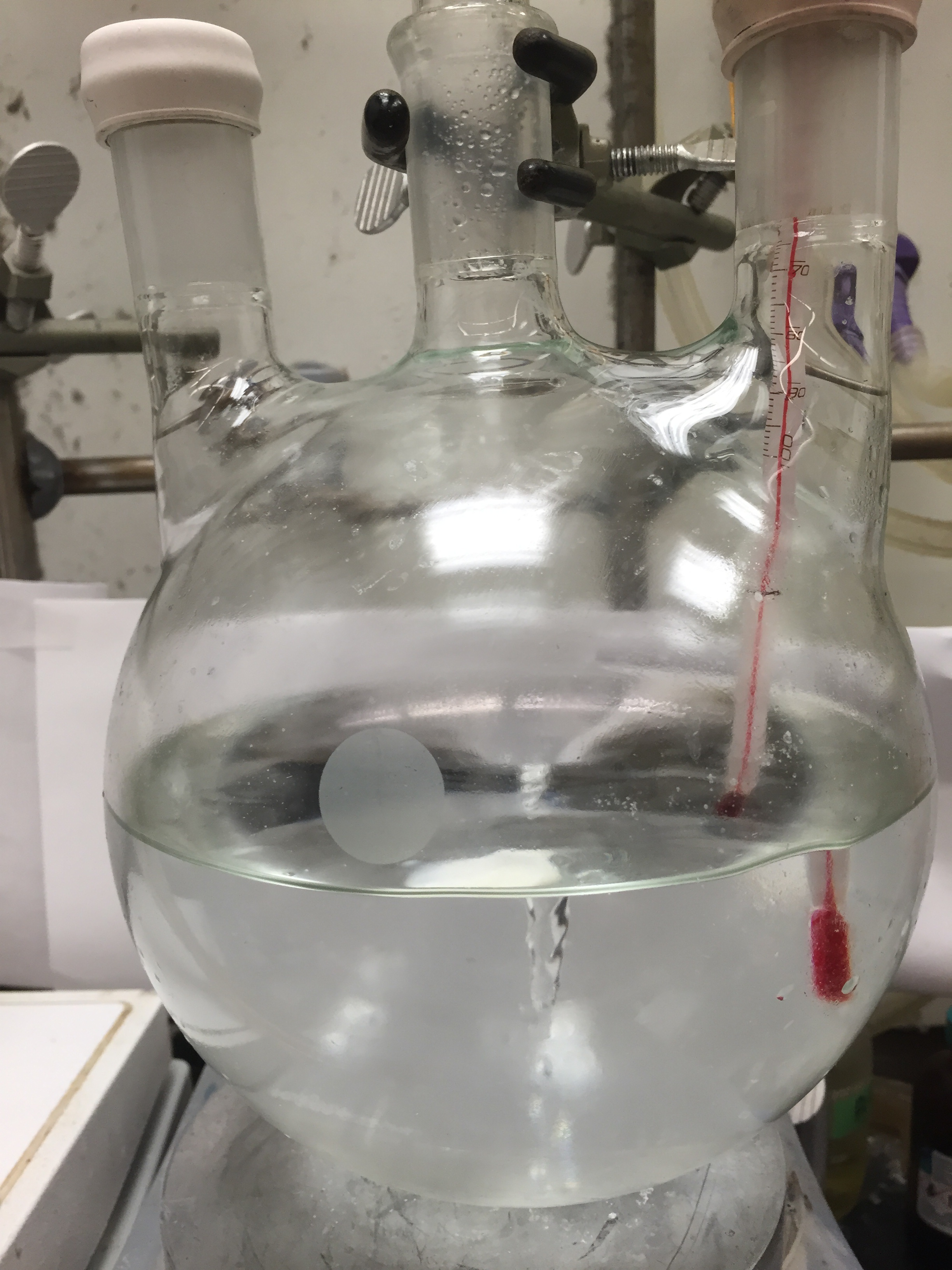

Figure 6. Oxidative Cleavage After Completion Before Quenching
2. Notes
1. The reaction may alternatively be run under a nitrogen atmosphere with no deleterious effects.
2. Tris(hydroxymethyl)aminomethane hydrochloride (Trizma® hydrochloride, ≥99%, crystalline, Sigma-Aldrich), 1,1-dimethoxycyclohexane (99%, Sigma-Aldrich), para-toluenesulfonic acid monohydrate (≥98.5%, ACS reagent grade, Sigma-Aldrich), potassium dihydrogen phosphate (anhydrous, 99.8%, ACS reagent grade, Mallinckrodt), sodium (meta)periodate (≥99%, Sigma-Aldrich), anhydrous sodium thiosulfate (99%, Sigma-Aldrich), and anhydrous sodium sulfate (≥99%, granular (10-60 mesh), Macron; Submitters: ≥99%, powder, Fisher Scientific) are purchased and used as received. N,N-Dimethylformamide (DMF, ≥99.9%, HPLC grade, Sigma-Aldrich; Submitters: ≥99.8%, ACS reagent grade, Mallinckrodt) is degassed with argon and purified by passage through two columns of molecular sieves (9 cm x 60 cm) under argon. Triethylamine (≥99.5%, EMD; Submitters: ≥99%, Sigma-Aldrich) is degassed with argon and purified by passage through two columns of molecular sieves (9 cm x 60 cm) under argon (Submitters: triethylamine distilled from calcium hydride prior to use). Water is distilled and purified with a Barnstead NANOpure Infinity UV/UF system and had a pH of ca. 7 (Submitters: water pH between 5 and 6). Diethyl ether (≥99%, anhydrous, ACS reagent grade, Fisher Scientific; Submitters: ≥99%, ACS reagent grade, EMD), ethyl acetate (≥99.5%, ACS reagent grade, Sigma-Aldrich; Submitters: ≥99.5%, ACS reagent grade, EMD), and dichloromethane (≥99.5%, ACS reagent grade, Sigma-Aldrich; Submitters: ≥99.5%, ACS reagent grade, EMD) are purchased and used as received without needing to remove dissolved gasses or water from the solvent. For the purpose of purity analysis, dimethyl fumarate (TraceCERT® certified reference material, Sigma-Aldrich) is used as an internal standard.
3. Crystalline tris(hydroxymethyl)aminomethane hydrochloride used for this procedure from Sigma-Aldrich arrived with some large chunks of material mixed in with fine white crystals. These large chunks are broken up prior to use, using a mortar and pestle if necessary, to ensure efficient transketalization since the material is not fully soluble in the N,N-dimethylformamide reaction solvent.
4. Varying the rate of addition of 1,1-dimethoxycyclohexane to the reaction flask has provided no noticeable effect on the yield of the reaction or the purity of the 3-amino-3-(hydroxymethyl)-1,5-dioxaspiro[5.5]undecane.
5. Extended reaction times up to 30 h have shown no deleterious effects on the overall yield or purity of 3-amino-3-(hydroxymethyl)-1,5-dioxaspiro[5.5]undecane.
6. The internal temperature of the receiving flask is not monitored, however, the temperature of the surrounding ice-water bath is between 3 °C and 5 °C.
7. Reaction flask is initially placed under vacuum CAREFULLY since at ambient temperature (21-23 °C) under reduced pressure (>1 mmHg), the methanol byproduct from the transketalization will boil vigorously. Only after all of the methanol has been distilled off is the reaction flask heated to facilitate the distillation of the N,N-dimethylformamide. Typically, the oil bath is heated to between 50 °C to 65 °C depending on the high vacuum manifold pressure, resulting in the distillation of the N,N-dimethylformamide at an indicated temperature range from 35 °C to 39 °C in the distillation head.
8. Vigorous stirring is necessary to ensure full removal of the volatiles by distillation. Without vigorous stirring, the pale yellow semi-solid resulting from the distillation process will trap N,N-dimethylformamide which can lead to the contamination of the aminoalcohol product.
9. This step is critical to achieving optimal yield. The trituration process will take some time as the semi-solid pale yellow gel that results from the distillation process hardens when cooled to ambient temperature. The semi-solid should be manually ground and triturated until no pale yellow semi-solid remains either on the walls of the flask or suspended in solution.
10. A medium porosity sintered glass funnel refers to a sintered glass funnel with 10-15 µm sintered glass mesh.
11. In order to ensure complete removal of N,N-dimethylformamide and para-toluenesulfonic acid, the white solid must be ground as finely as possible. If these impurities remain, however, they will not affect the subsequent reactions and can be separated from 1,5-dioxaspiro[5.5]undecan-3-one by filtration through silica gel (see Note 30).
12. No precautions are taken to exclude either water or air from the reaction flask. The flask is neither dried prior to use nor placed under an inert atmosphere. The product has been split into two portions to allow for more vigorous and efficient stirring of the heterogeneous reaction mixture.
13. Assuming quantitative yield after the first step of the crude amorphous white solid intermediate, this volume of ethyl acetate corresponds to a concentration of 0.36 M. As a reminder, the ethyl acetate used as the solvent for this step is purchased and used as received without the need to remove dissolved gasses or water from the solvent.
14. Assuming quantitative yield after the first step of the crude amorphous white solid intermediate, 1.25 equivalents of triethylamine are added.
15. Since the majority of the 3-amino-3-(hydroxymethyl)-1,5-dioxaspiro[5.5]undecane is isolated after the first free base procedure and filtration, a large excess of triethylamine is added here to help drive any remaining hydrochloride salt of 3-amino-3-(hydroxymethyl)-1,5-dioxaspiro[5.5]undecane to the desired product. Smaller amounts of triethylamine may be used here, however, this will result in a slightly reduced isolated yield of 3-amino-3-(hydroxymethyl)-1,5-dioxaspiro[5.5]undecane.
16. 3-Amino-3-(hydroxymethyl)-1,5-dioxaspiro[5.5]undecane: Rf = 0.17 (1:4 methanol:dichloromethane eluent); 1H NMR pdf(400 MHz, CDCl3) δ: 1.36-1.45 (m, 2H), 1.45-1.60 (m, 4H), 1.68-1.81 (m, 4H), 2.01 (bs, 2H), 2.04 (bs, 1H), 3.48 (s, 2H), 3.52 (d, J = 11.9 Hz, 2H), 3.79 (d, J = 11.9 Hz, 2H), 13C NMR pdf(101 MHz, CDCl3) δ: 22.6, 25.7, 31.1, 33.8, 50.5, 64.7, 66.4, 98.6. IR (film): 3350, 3294, 2938, 2860, 1619, 1449, 1331, 1285, 1255, 1160, 1110, 1087, 918 cm-1. HRMS (MM: ESI-APCI) m/z calcd for C10H20NO3 [M+H]+: 202.1438, found 202.1431; Elemental anal. calcd for C10H19NO3: C, 59.68; H, 9.52; N, 6.96; O, 23.85, found: C, 59.67; H, 9.62; N, 6.86; O, 23.85. The product is indefinitely stable at ambient temperature stored under an inert atmosphere (argon or nitrogen).
17. A second run on half-scale provided 21.2 g (74%) of the product.
18. Only a portion of the 3-amino-3-(hydroxymethyl)-1,5-dioxaspiro[5.5]undecane from Step A is advanced for ease in using glassware no larger than 2-L in volume.
19. The internal temperature of the reaction mixture is measured between 2 °C and 3 °C after cooling.
20. The internal temperature of the reaction mixture during addition ranges between 1 °C and 3 °C.
21. The internal temperature of the reaction mixture is between 0 °C and 1 °C.
22. Progress of the reaction can be monitored by TLC analysis on silica gel using 20% methanol in dichloromethane eluent with visualization by potassium permanganate. The aminoalcohol starting material has an Rf = 0.17 and the ketone product has an Rf = 0.90. At the time of the reaction quench, 3.0 h after removing the reaction vessel from the cooling bath, the internal temperature is between 16 °C and 17 °C.
23. The internal temperature of the reaction warms to between 18 °C and 19 °C after the addition of anhydrous sodium thiosulfate. Alternatively, sodium thiosulfate pentahydrate may also be used without any deleterious effects on the overall efficacy of the described transformation.
24. This portion of the procedure is mildly time sensitive. Stirring overnight should be avoided, as prolonged exposure of 1,5-dioxaspiro[5.5]undecan-3-one to the reaction conditions will result in decomposition by ketal cleavage, as evidenced by the presence of cyclohexanone, which can be observed in the 1H NMR spectrum of the product.
25. Washes of the aqueous layer with dichloromethane should be followed by TLC analysis on silica gel (20% diethyl ether in hexanes eluent, p-anisaldehyde stain, Rf = 0.38) to ensure the product has been completely extracted. The product is persistent in the aqueous layer, and remains visible by TLC until the twelfth extraction.
26. 1,5-Dioxaspiro[5.5]undecan-3-one: Rf = 0.90 (1:4 methanol: dichloro-methane eluent) and 0.38 (1:4 diethyl ether:hexanes eluent); 1H NMR pdf(400 MHz, CDCl3) δ: 1.40-1.49 (m, 2H), 1.55-1.64 (m, 4H), 1.70-1.77 (m, 4H), 4.18 (s, 4H), 13C NMR pdf(101 MHz, CDCl3) δ: 22.8, 25.2, 32.5, 66.5, 99.8, 208.0; IR (film): 2938, 2863, 1751, 1448, 1435, 1425, 1369, 1338, 1281, 1264, 1239, 1201, 1162, 1146, 1118, 1079, 1058, 1028, 922, 847, 825 cm-1; HRMS calcd for C9H15O3 [M+H]+: 171.1016, found 171.1008; Elemental anal. calcd for C9H14O3: C 63.51, H 8.29, O 28.20, found C 63.53, H 8.49, O 27.98; Quantitative NMR Analysis: title compound (20.4 mg) with dimethylfumarate standard (19.7 mg) in CDCl3, 100.0% pure (see 1H NMR spectrum below). The product may be stored at -20 °C under an inert atmosphere (argon or nitrogen) for >3 months, however, prolonged storage or storage at higher temperature will result in slow decomposition by ketal cleavage.
27. A second run on half-scale provided 12.7 (96%) of the product.
28. After storage overnight in a freezer at -20 °C as a neat oil, 1,5-dioxaspiro[5.5]undecan-3-one solidifies to become a tan solid that does not melt upon warming back to ambient temperature (ca. 23 °C). Melting point of this tan solid: 28-30 °C.
29. Residual dichloromethane can be challenging to remove from the title compound. To aid in the removal of this impurity, the dioxanone product can be diluted with pentane (ca. 1.5 mL pentane/g of dioxanone) and then concentrated in vacuo (23 °C, 13 mmHg) and under high vacuum (23 °C, 0.40 mmHg, 5 min). After repeating this procedure two additional times, the removal of residual dichloromethane will be complete.
30. The procedure, as written, will afford the title compound in analytically pure form. Neither column chromatography nor distillation are necessary. However, if traces of N,N-dimethylformamide or para-toluenesulfonic acid from Step A remain with 1,5-dioxaspiro[5.5]undecan-3-one after aqueous work-up, the impure product may be filtered through a pad of silica gel (5 cm diameter, 3 cm depth) in a medium porosity sintered glass funnel (see Note 10) as a solution in dichloromethane (200 mL), rinsing the silica gel with dichloromethane (100 mL) after filtration. This procedure typically provides 1,5-dioxaspiro[5.5]undecan-3-one in a slightly reduced isolated yield from 3-amino-3-(hydroxymethyl)-1,5-dioxaspiro-[5.5]undecane. Attempts to purify 1,5-dioxaspiro[5.5]undecan-3-one by either short-path distillation or bulb-to-bulb distillation (82-88 °C, 0.60-0.70 mmHg) result in partial decomposition of the dioxanone product by ketal cleavage and contamination of the distilled product with cyclohexanone.
Working with Hazardous Chemicals
The procedures in Organic Syntheses are intended for use only by persons with proper training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011; the full text can be accessed free of charge at http://www.nap.edu/catalog.php?record_id=12654). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
In some articles in Organic Syntheses, chemical-specific hazards are highlighted in red "Caution Notes" within a procedure. It is important to recognize that the absence of a caution note does not imply that no significant hazards are associated with the chemicals involved in that procedure. Prior to performing a reaction, a thorough risk assessment should be carried out that includes a review of the potential hazards associated with each chemical and experimental operation on the scale that is planned for the procedure. Guidelines for carrying out a risk assessment and for analyzing the hazards associated with chemicals can be found in Chapter 4 of Prudent Practices.
The procedures described in Organic Syntheses are provided as published and are conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
The procedure for the synthesis of 1,5-dioxaspiro[5.5]undecan-3-one is based on our previous report2 and was originally adapted from the work of Forbes3 and inspired by the work of Majewski,4 Hoppe,5 and Enders6 on the synthesis of related ketodioxanone scaffolds. Using the procedure described herein, the synthesis of the analogous diethyl ketal product has been accomplished using 3,3-dimethoxypentane in place of 1,1-dimethoxycyclohexane.7 This modification provided the corresponding ketodioxanone in a comparable yield to 1,5-dioxaspiro[5.5]undecan-3-one.

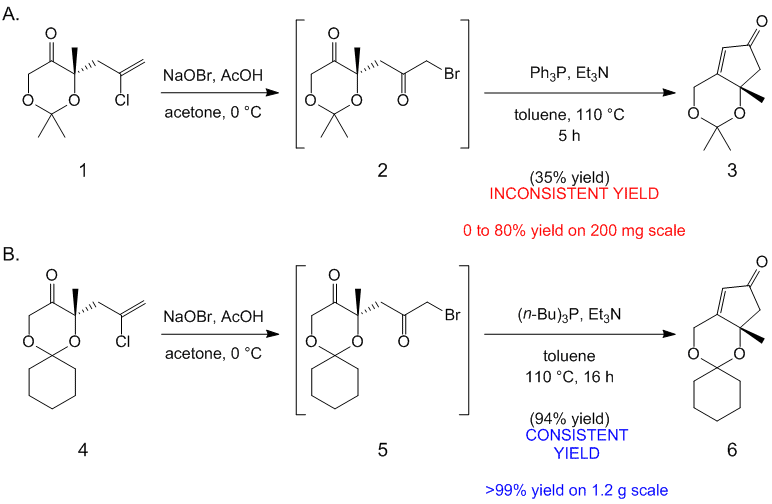

Scheme 1. Effect of Ketal Identity on Oxidative α-Bromination
The title compound has been previously synthesized by another method.8 It has been employed successfully as a nucleophile in palladium-catalyzed enantioselective allylic alkylation2 as well as stereoselective aldol condensation.9 As a synthetic building block, 1,5-dioxaspiro[5.5]undecan-3-one offers the advantage of a ketal that is significantly more stable to acidic reaction conditions in comparison to the acetonide and diethylketal orthologues. For example, exposure of acetonide 1 to acidic oxidative α-bromination conditions furnished α-bromoketone 2 in widely variable yields, most typically between 0% and 20% (Scheme 1.A).2 Although the conversion of α-bromoketone 2 to cyclopentenone 3 was accomplished, the labile nature of the acetonide contributed to the diminished yield.
Alternatively, employment of cyclohexyl ketal analog 4 enabled consistent quantitative conversion to α-bromoketone 5 on gram scale (Scheme 1.B).2 Under optimized reaction conditions, α-bromoketone 5 was converted to cyclopentenone 6 in excellent yield. Although the comparatively robust cyclohexyl ketal had enabled the efficient formation of the cyclopentenone scaffold (e.g. 6), the protecting group was easily removed from benzoyl ester 7 under relatively mild acidic transketalization conditions to provide diol 8 in 97% yield (Scheme 2).
Scheme 2. Removal of Cyclohexyl Ketal Under Mild Acidic Conditions
Ketal orthologues of the title compound have been studied more extensively than the title compound itself, showing the utility of ketodioxanones as nucleophiles in enantioselective palladium-catalyzed allylic alkylations,2,10 diastereoselective alkylations,6,11 α,α'-annulations,12 and organocatalyic stereoselective aldol condensations.13 The products of these transformations have been successfully applied to the synthesis of a variety of simple and complex carbohydrates13b,13f,13g,13k and biologically active natural products.10a,10c,11a,11b,12a,13a,13c,13d,13h,14

References and Notes
  1. The Warren and Katharine Schlinger Laboratory for Chemistry and Chemical Engineering, Division of Chemistry and Chemical Engineering, California Institute of Technology, 1200 East California Boulevard, MC 101-20, Pasadena, California 91125, United States. stoltz@caltech.edu; Ph. (626) 395-6064; Fax (626) 395-8436. The authors wish to thank the NIH NIH-NIGMS (R01M080269-01), Amgen, and Caltech for financial support. R.A.C. gratefully acknowledges the support of this work provided by a fellowship from the National Cancer Institute of the National Institutes of Health under Award Number F31A17435. B.P.P. thanks the NSF for a predoctoral fellowship. B.I.E. thanks the Caltech Summer Undergraduate Research Fellowship (SURF) office for funding.
  2. Craig, R. A., II; Roizen, J. L.; Smith, R. C.; Jones, A. C.; Stoltz, B. M. Org. Lett. 2012, 14, 5716-5719.
  3. Forbes, D. C.; Ene, D. G.; Doyle, M. P. Synthesis 1998, 879-882.
  4. Majewski, M.; Gleave, D. M.; Nowak, P. Can. J. Chem. 1995, 73, 1616-1626.
  5. Hoppe, D.; Schmincke, H.; Kleemann, H.-W. Tetrahedron 1989, 45, 687-694.
  6. Enders, D.; Bockstiegel, B. Synthesis 1989, 493-496.
  7. Craig, R. A., II. Progress Toward the Enantioselective Total Synthesis of Ineleganolide and the Polycyclic Norcembranoid Diterpenes and Construction of the Ineleganoloids. Ph.D. dissertation, California Institute of Technology, Pasadena, CA, 2015.
  8. 8. Kim, K. S.; Hong, S. D. Tetrahedron Lett. 2000, 41, 5909-5913.
  9. (a) Suri, J. T.; Mitsumori, S.; Albertshofer, K.; Tanaka, F.; Barbas, C. F., III. J. Org. Chem. 2006, 71, 3822-3828. (b) Majewski, M.; Niewczas, I.; Palyam, N. Synlett 2006, 2387-2390. (c) Suri, J. T.; Ramachary, D. B.; Barbas, C. F., III. Org. Lett. 2005, 7, 1383-1385.
  10. (a) Liu, Y.; Liniger, M.; McFadden, R. M.; Roizen, J. L.; Malette, J.; Reeves, C. M.; Behenna, D. C.; Seto, M.; Kim, J.; Mohr, J. T.; Virgil, S. C.; Stoltz, B. M. Beilstein J. Org. Chem. 2014, 10, 2501-2512. (b) Behenna, D. C.; Mohr, J. T.; Sherden, N. H.; Marinescu, S. C.; Harned, A. M.; Tani, K.; Seto, M.; Ma, S.; Novak, Z.; Krout, M. R.; McFadden, R. M.; Roizen, J. L.; Enquist, Jr., J, A.; White, D. E.; Levine, S. R.; Petrova, K. V.; Iwashita, A.; Virgil, S. C.; Stoltz, B. M. Chem. Eur. J. 2011, 17, 14199-14223. (c) Seto, M.; Roizen, J. L.; Stoltz, B. M. Angew. Chem., Int. Ed. 2008, 47, 6873-6876.
  11. (a) Enders, D.; Reichenbach, L. F. Synthesis 2013, 45, 959-965. (b) Enders, D.; Barbion, J. Chem. Eur. J. 2008, 14 , 2842-2849. (c) Enders, D.; Breuer, I.; Drosdow, E. Synthesis 2005, 3239-3244.
  12. (a) Cagide-Fagín, F.; Nieto-García, O.; Lago-Santomé, H.; Alonso, R. J. Org. Chem. 2012, 77, 11377-11382. (b) Casey, T. C.; Carlisle, J.; Tizzelli, P.; Male, L.; Spencer, N.; Grainger, R. S. J. Org. Chem. 2010, 75, 7461-7464.
  13. (a) Trajkovic, M.; Balanac, V.; Ferjancic, Z.; Saicic, R. N. RSC Adv. 2014, 4, 53722-53724. (b) Bergeron-Brlek, M.; Teoh, T.; Britton, R. Org. Lett. 2013, 15, 3554-3557. (c) Pearson, A. J.; Panda, S.; Bunge, S. D. J. Org. Chem. 2013, 78, 9921-9928. (d) Marjanovic, J.; Divjakovic, V.; Matovic, R.; Ferjancic, Z.; Saicic, R. N. Eur. J. Org. Chem. 2013, 5555-5560. (e) Sánchez, D.; Bastida, D.; Burés, J.; Isart, C.; Pineda, O.; Vilarrasa, J. Org. Lett. 2012, 14, 536-539. (f) Niewczas, I.; Majewski, M. Eur. J. Org. Chem. 2009, 33-37. (g) Enders, D.; Narine, A. A. J. Org. Chem. 2008, 73, 7857-7870. (h) Enders, D.; Terteryan, V.; Palecek, J. Synthesis 2008, 2278-2282. (i) Calderon, F.; Doyaguez, E. G.; Cheong, P. H.-Y.; Fernández-Mayoralas, A.; Houk, K. N. J. Org. Chem. 2008, 73, 7916-7920. (j) Doyaguez, E. G.; Calderón, F.; Sánchez, F.; Fernández-Mayoralas, A. J. Org. Chem. 2007, 72, 9353-9356. (k) Enders, D.; Grondal, C. Angew. Chem., Int. Ed. 2005, 44, 1210-1212.
  14. (a) Kim, Y. S.; Lee, J. K.; Pae, A. N.; Cho, Y. S.; Min, S.-J. Synlett 2013, 24, 2292-2296. (b) Cagide-Fagín, F.; Alonso, R. Eur. J. Org. Chem. 2010, 6741-6747. (c) Kim, H. C.; Kang, S. H. Angew. Chem., Int. Ed. 2009, 48, 1827-1829. (d) Davis, J. B.; Bailey, J. D.; Sello, J. K. Org. Lett. 2009, 11, 2984-2987.

Appendix
Chemical Abstracts Nomenclature (Registry Number)

Tris(hydroxymethyl)aminomethane hydrochloride: 1,3-Propanediol, 2-amino-2-(hydroxymethyl)-, hydrochloride (1:1); (1185-53-1)

1,1-Dimethoxycyclohexane: Cyclohexane, 1,1-dimethoxy-; (933-40-4)

para-Toluenesulfonic acid monohydrate: Benzenesulfonic acid, 4-methyl-, hydrate (1:1); (6192-52-5)

Triethylamine: Ethanamine, N,N-diethyl-; (121-44-8)

3-Amino-3-hydroxymethyl-1,5-dioxaspiro[5.5]undecane: 1,5-dioxaspiro[5.5]undecane-3-methanol, 3-amino-; (5452-79-9)

Dihydrogen potassium phosphate: Phosphoric acid, potassium salt (1:1); (7778-77-0)

Sodium (meta)periodate: Periodic acid (HIO4), sodium salt (1:1); (7790-28-5)

1,5-Dioxaspiro[5.5]undecan-3-one; (158632-48-5)
