Org. Synth. 2016, 93, 286-305
DOI: 10.15227/orgsyn.093.0286
Synthesis of Methyl 1-Formylcyclopropanecarboxylate utilizing Ti-Claisen Condensation
Submitted by Yuichiro Ashida, Satomi Kajimoto, Hidefumi Nakatsuji,* and Yoo Tanabe1*
Checked by Bryon K. Anderson, Yu-Wen Huang, and John L. Wood
1. Procedure
A. Methyl 4-chloro-2-formylbutanoate (1). An oven-dried 500-mL, three-necked (24/40), round-bottomed flask equipped with a Teflon-coated magnetic stirring bar (egg-shaped, 32 mm length x 15 mm diameter), an internal thermometer, a 50-mL pressure-equalizing addition funnel fitted with a nitrogen inlet (central neck), and a second 60-mL pressure-equalizing addition funnel is charged with methyl 4-chlorobutanoate (12 mL, 13.7 g, 100 mmol, 1 equiv) (Notes 1 and 2), HCO2Me (18 mL, 18 g, 300 mmol, 3 equiv) (Note 3), and CH2Cl2 (100 mL) (Notes 4 and 5) (Figure 1). The stirred solution is immersed in an ice bath, cooling the internal temperature to 0 °C, and TiCl4 (24 mL, 41.7 g, 220 mmol, 2.2 equiv) is added dropwise through a 60-mL dropping funnel (Figure 1, right side) (Notes 6 and 7) over a period of 20 min, while maintaining the internal temperature at 5-10 °C (Note 8).

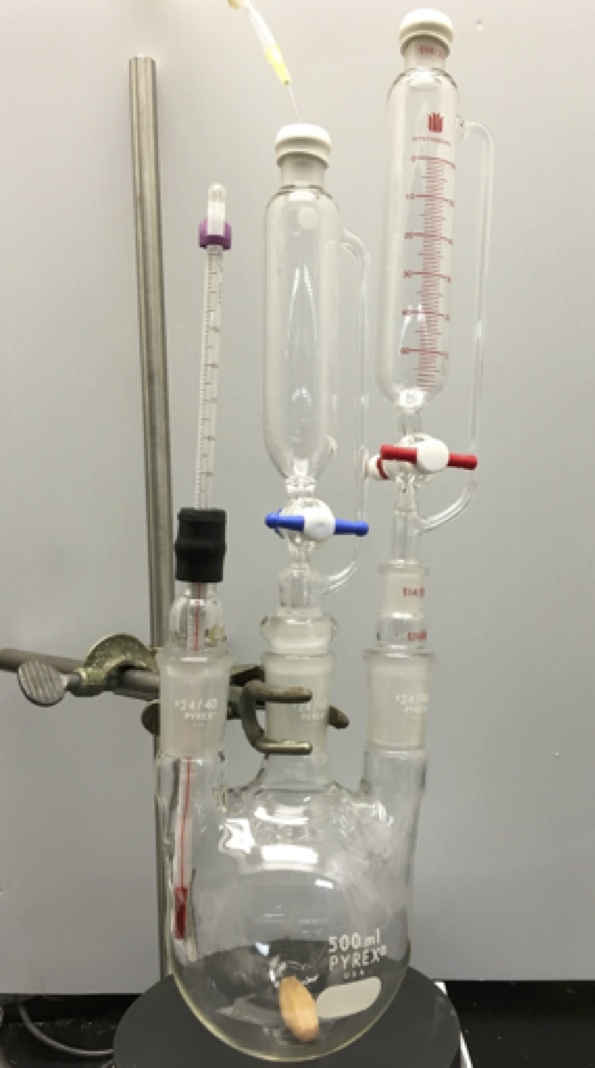

Figure 1. Reaction Set-up for Step A
Triethylamine (36 mL, 26.3 g, 260 mmol, 2.6 equiv) (Note 9) is then added dropwise to the vigorously stirred yellow reaction mixture over a period of 30 min using the 50-mL addition funnel in the center neck of the flask, while maintaining the internal temperature at 15 °C or lower (Note 10) (Figure 2). After complete addition, the dark orange reaction is stirred (500 rpm) at 0 °C for 1 h (Note 11), then quenched dropwise with water (100 mL) over a period of 10 min to maintain the internal temperature at 10 °C or lower (Note 12). The biphasic mixture is then transferred to a 500-mL round-bottomed flask and the initial reaction flask is rinsed with EtOAc (2 x 10 mL). The solution is concentrated using a rotary evaporator (22 °C, 46 mmHg). The mixture is then transferred to a 500-mL separatory funnel with EtOAc (50 mL), and the aqueous phase is separated and re-extracted with EtOAc (50 mL). The combined organic phase is washed with water (100 mL) and brine (50 mL), dried over Na2SO4 (20 g), filtered through a 150-mL medium porosity sintered glass funnel and concentrated using a rotary evaporator (45 °C, 25 mmHg) to furnish α-formyl ester 1 as a yellow liquid (16.39 g), which is used for the next step without any purification (Notes 13 and 14).

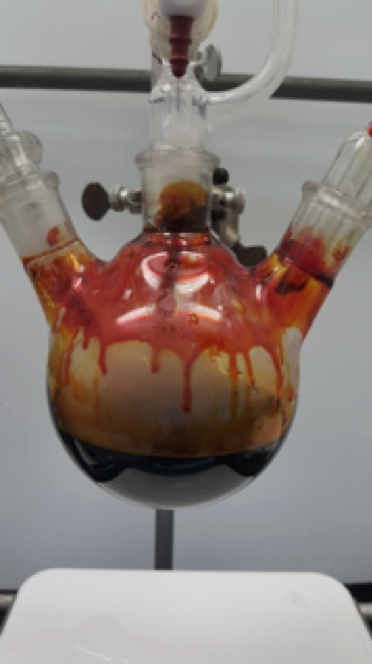

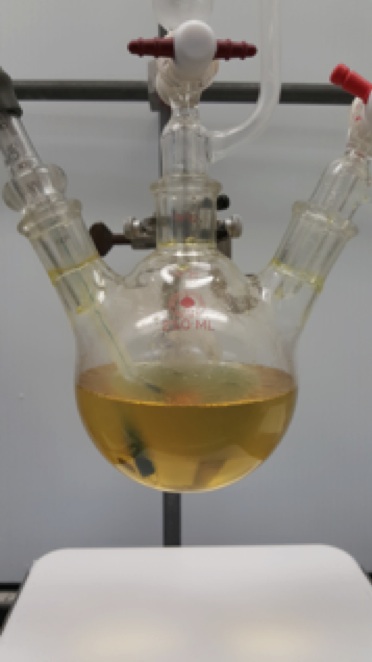

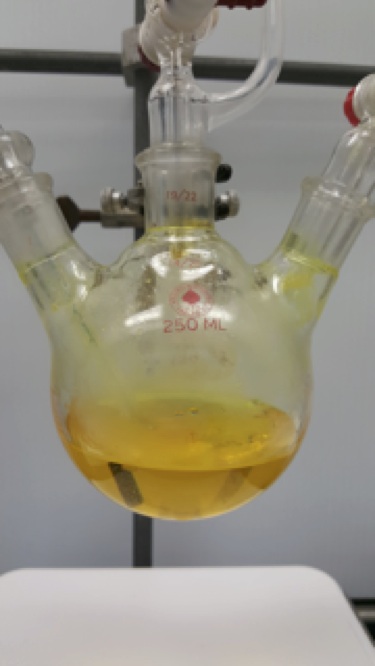

Figure 2. Color Transitions Observed in Step A
after TiCl4 addition
after Et3N addition
after quench with H2O
B. Methyl 1-formylcyclopropanecarboxylate [2] (Note 15) . An oven-dried 250-mL, three-necked (24/40), round-bottomed flask equipped with a Teflon-coated magnetic stirring bar (egg-shaped, 26 mm length x 13 mm diameter), an internal thermometer, a glass stopper (central neck), and a Dryrite drying tube (Note 16) (Figure 3) is charged with crude α-formyl ester 1 (16.39 g) in AcOEt (100 mL). The light orange solution is stirred and immersed in an ice bath, cooling the internal temperature to 0 °C, and then potassium carbonate (K2CO3) (13.9 g, 100 mmol, 1 equiv) (Note 17) is added portionwise (split into five equal parts) over 10 min after temporarily removing the glass stopper (Note 18). Immediately after the addition is complete, triethylamine (1.4 mL, 1.00 g, 10.0 mmol, 0.1 equiv) is added in one portion.

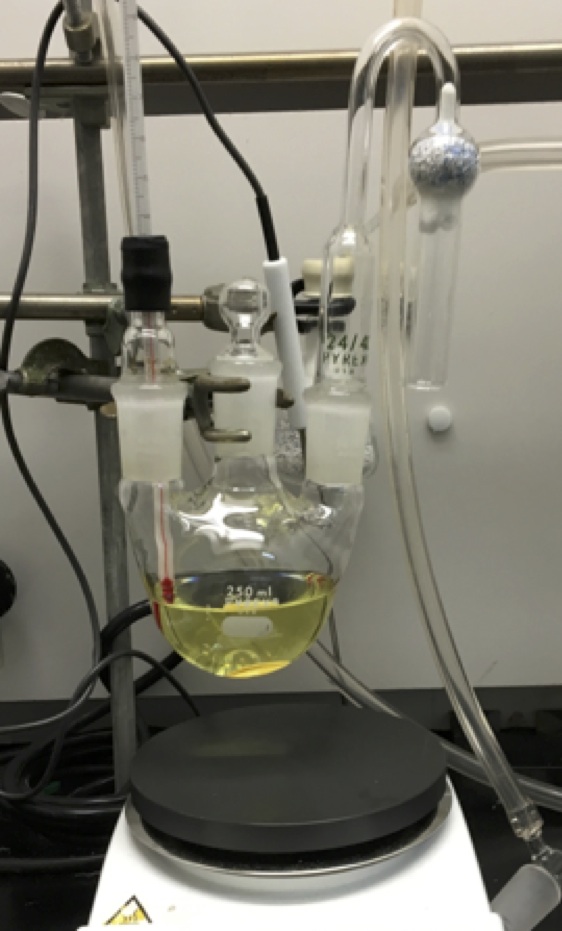

Figure 3. Reaction Set-up for Step B
After stirring (600 rpm) the suspension at 0 °C for 1 h, the reaction is quenched with water (100 mL) and transferred to a 500-mL separatory funnel. The initial reaction flask is rinsed with EtOAc (2 x 5 mL) and H2O (2 x 5 mL), which are added to the separatory funnel. The organic phase is separated and the aqueous phase is re-extracted with EtOAc (20 mL). The combined organic phase is washed with water (20 mL) and brine (20 mL), dried over Na2SO4 (20 g), filtered through a 150-mL medium porosity sintered glass funnel, then concentrated under reduced pressure using a rotary evaporator (45 °C, 25 mmHg) to furnish an amber-colored liquid. The obtained crude product (ca. 12 g) is moved into a 25-mL round-bottomed flask with a Teflon-coated magnetic stir bar (Note 19) (Figure 4). Distillation while immersed in a temperature-controlled oil bath under reduced pressure (84-86 °C, 19-25 mmHg) provides the desired product 2 (8.68 g, 69% overall yield) as a colorless liquid (Notes 20, 21, and 22).

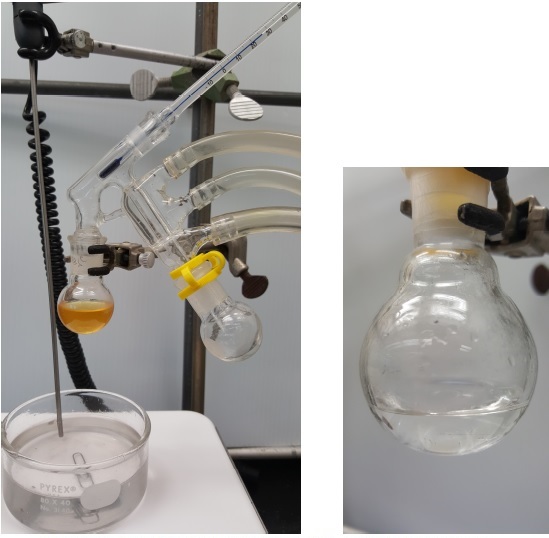

Figure 4. Distillation Set-up and Pure Final Product
2. Notes
1. The methyl 4-chlorobutanoate, methyl formate, and dichloromethane must be added by temporary removal of one of the addition funnels followed by purging of the system with nitrogen.
2. The checkers used methyl 4-chlorobutyrate (98+%) from Acros Organics. The submitters used methyl 4-chlorobutanoate (GC purity >98%) purchased from Tokyo Chemical Industry Co., Ltd. and used as received.
3. The checkers used methyl formate (97%, pure) from Acros Organics. The submitters used methyl formate (HCO2Me) (GC purity >95%) purchased from Tokyo Chemical Industry Co., Ltd. and used as received.
4. The checkers used non-stabilized dichloromethane (20-L drum, ACS Reagent) from J. T. Baker, which was then passed through two packed columns of neutral alumina in a solvent purification system manufactured by SG Water U.S.A., LLC. The submitters used dichloromethane (CH2Cl2) (purity 99.5%) was purchased from Wako Pure Chemical Industries, Ltd. and used as received without any purification.
5. The submitters studied the use of CH2Cl2 and toluene as reaction solvents and noted the reaction to be homogeneous with the former, whereas the use toluene results in formation of yellow precipitate and a viscous reaction mixture. The checkers employed only CH2Cl2.
6. The checkers used titanium (IV) chloride (sure-sealed 200 g bottle, ReagentPlus, 99.9% trace metal basis) obtained from Sigma-Aldrich. The submitters used titanium tetrachloride (TiCl4) (99.0%, 500 g bottle) purchased from Wako Pure Chemical Industries, Ltd. and used as received.
7. The checkers charged the 60 mL addition funnel with TiCl4 (from a sure-sealed bottle) using a syringe. The submitters report delivering the TiCl4 using a 10 mL pipet, wherein the operation should be rapidly and carefully conducted to take care of white smoke evolution.
8. The submitters note this step to be slightly exothermic when using addition rates of 24 mL of TiCl4 over 5-10 min. However, the checkers observed a steady temperature at 5-10 °C when adding 24 mL TiCl4 dropwise over 20 min. A feature not noted by the submitters is the formation of yellow crystals around the tip of the addition funnel. These crystals tend to fall off with time and slowly dissolve in the dichloromethane.
9. The checkers purchased triethylamine (≥99.5%) from Sigma-Aldrich and distilled it from CaH2 immediately prior to use. The submitters used triethylamine (Et3N) (purity 99%) purchased from Wako Pure Chemical Industries, Ltd. and used it as received.
10. The submitters note the reaction to be considerably exothermic. The checkers found that by adding the Et3N dropwise over 30 min (approx. 1-1.2 mL per minute) it was possible to maintain an internal temperature at 10 °C or lower without affecting the formation of the expected dark orange reaction mixture.
11. The checkers note that the reaction progress can be monitored by 1H NMR.
12. The submitters caution that this quench is exothermic. The checkers found that adding the water dropwise over 10 min was sufficient to maintain an internal temperature at 10 °C or lower, while the submitters' addition over 5 min was sufficient to maintain temperatures below 20 °C.
13. The checkers performed two half-scale and two full-scale reaction. The crude yields were 97% (7.94 g), 99% (8.14 g), 98% (16.13 g), and 99% (16.39 g) respectively. Analysis of the crude reaction mixture by 1H NMR pdf and 13C NMR pdf revealed that the mixture consists of three tautomers 1a, (Z)-1b, (E)-1b and a very small amount of by-product tentatively assigned as (E)-1x, in an approximate ratio of 36:44:16:4.
14. Although not necessary for step B the submitters and checkers established in parallel studies that this reaction mixture could be purified via flash chromatography through SiO2. In the checker's hands 5 g of the crude product was purified using 25 g of silica (Silicycle Silica, Flash P60, 40-63 μm, 230-400 mesh) loaded into a 30 mm diameter column. The column was slurry packed, the sample loaded with hexane and then eluted with a gradient of EtOAc/hexanes (5% increasing by approximately 2% every 10-12 fractions). Fractions were collected (6.7 mL) at a flow rate of 0.8 mL/sec. Overall, 72 fractions were collected and product was observed at fractions 10-32. These fractions were concentrated in vacuo to furnish 2.51 g of a colorless oil, which was determined by 1H NMR to be (Z)-1b and trace 1a. The submitters note the composition of the chromatographed material (5 g) to be a mixture of 1 (4.45 g, 85%) with cyclopropane 2 (ca. 6% based on 1H NMR). The checkers did not observe cyclopropane 2 at this stage. Compound 1 has been found to slightly decompose on silica and distillation results in decomposition. Compound 1 gradually solidified at ambient temperature, and over a week undergoes slow tautomerization to enols (Z)-1b and (E)-1b. The checkers note the purified sample of (Z)-1b was observed to undergo slow crystallization, which upon collection and trituration (hexanes) of the resulting white solid revealed them to be (E)-1b by 1H NMR.
Physical and spectroscopic properties of (Z)-1b: colorless oil; 1H NMR pdf(400 MHz, CDCl3) δ: 2.52 (td, J = 7.0, 0.7 Hz, 2H), 3.55 (t, J = 6.9 Hz, 2H), 3.80 (s, 3H), 7.11 (d, J = 12.8 Hz, 1H), 11.49 (d, J = 12.7 Hz, 1H); 13C NMR pdf(101 MHz, CDCl3) δ: 31.2, 44.05, 51.8, 101.1, 163.3, 172.1; IR (neat) 2957, 1721, 1672, 1612, 1446, 1397, 1350, 1328, 1281, 1222, 1189, 1166, 1124, 989, 956, 811, 740, 653, 574, 452 cm-1; HRMS (+ESI) m/z [M + H]+ calcd for C6H9ClO3 165.0313, found 165.0313; Anal. Calcd for C6H9ClO3: C, 43.79; H, 5.51; Cl, 21.54. Found; C, 43.56; H, 5.48; Cl, 21.28.

Those of (E)-1b: colorless crystals; mp 72-80 °C; 1H NMR pdf(400 MHz, CDCl3) δ: 2.77 (t, J = 7.0 Hz, 2H), 3.63 (t, J = 6.9 Hz, 2H), 3.73 (s, 3H), 6.17 (br s, 1H), 7.77 (d, J = 9.0 Hz, 1H); 13C NMR pdf(101 MHz, CDCl3) δ: 27.4, 43.6, 51.7, 107.3, 155.3, 168.8; IR (neat) 3208, 1667, 1634, 1444, 1397, 1331, 1308, 1283, 1203, 1169, 1105, 746, 731 cm-1.

15. Step B should be carried out within a week due to the sensitivity of the starting material.
16. The half-scale reaction utilized an oven-dried 100-mL, three-necked, round-bottomed flask equipped with a Teflon-coated magnetic stirring bar (egg-shaped, 20 mm length x 10 mm diameter), an internal thermometer, a glass stopper (central neck) and a CaCl2 drying tube.
17. The checkers used potassium carbonate (anhydrous, 99%) from Alfa Aesar.
18. The submitters note this to be a slightly exothermic reaction. The checkers did not observe a rise in temperature when adding the potassium carbonate in five equal portions over 10 min. However, the quench with water after reaction completion is observed to be exothermic, but the temperature can be maintained at 5-10 °C if the water is added over 5 min. Reaction progress monitoring in step B is possible by TLC using KMnO4 staining [10% AcOEt in hexanes; Rf = 0.23 (1) and 0.33 (2)] or by 1H NMR comparison of aliquots.
19. Full-scale utilized a 25-mL round-bottomed flask equipped with a magnetic stirring bar (egg-shaped, 18 mm length x 10 mm diameter) with a short path distillation apparatus (110 mm height x 110 mm width). Half scale employed a 10-mL round-bottomed flask and a magnetic stirring bar (rod shaped, 10 mm length x 3 mm diameter). The receiving flask is cooled to 0 °C by immersion in an ice-water bath.
20. The submitters note: 1st fraction: 42-62 °C / 20 mmHg (bath temp. 82-87 °C), 0.24 g. 2nd fraction: 62-64 °C / 17 mmHg (bath temp. 87-111 °C), 8.82 g (overall yield, 69% in 2 steps). 3rd fraction: 64-52 (fade out) °C / 17 mmHg (bath temp. 111-123 °C), 0.17 g. The submitters also noted the bp to be 59-63 °C / 16 mmHg and the purity based on quantitative 1H NMR analysis was 97-99%. The checkers performed a fractional distillation collecting distillate boiling at 84-86 °C / 25 mmHg (bath temp. 104-124 °C). The checkers note: 1st fraction (135 mg, boiling temp. 84-86 °C / 25 mmHg, bath temp. 100-104 °C). 2nd fraction (8.68 g, boiling temp. 84-86 °C / 25 mmHg, bath temp. 104-124 °C). The collection of the 2nd fraction was not stopped until the internal temperature dropped.
21. The checkers performed two half-scale and two full-scale reactions. The yields after distillation were 73% (4.70 g), 68% (4.33 g), 77% (9.82 g), and 69% (8.68 g) respectively.
22. Physical and spectroscopic properties of 2: colorless liquid; 1H NMR pdf(400 MHz, CDCl3) δ: 1.58-1.62 (m, 2H), 1.64-1.68 (m, 2H), 3.80 (s, 3H), 10.37 (s, 1H); 13C NMR pdf(101 MHz, CDCl3) δ: 22.5, 33.4, 52.3, 171.4, 198.6; IR (neat) 2958, 2868, 1700, 1440, 1319, 1285, 1196, 1147, 1085, 1047, 1002, 959, 888, 810, 781, 742, 698, 474 cm-1; HRMS (+ESI) m/z [M + H]+ calcd for C6H9O3 129.0546, found 129.0543; quantitative 1H NMR analysis was performed with ethylene carbonate (purchased from TCI, purity >99.0%) as the internal standard and obtained in 97.6% purity.
Working with Hazardous Chemicals
The procedures in Organic Syntheses are intended for use only by persons with proper training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011; the full text can be accessed free of charge at http://www.nap.edu/catalog.php?record_id=12654). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
In some articles in Organic Syntheses, chemical-specific hazards are highlighted in red "Caution Notes" within a procedure. It is important to recognize that the absence of a caution note does not imply that no significant hazards are associated with the chemicals involved in that procedure. Prior to performing a reaction, a thorough risk assessment should be carried out that includes a review of the potential hazards associated with each chemical and experimental operation on the scale that is planned for the procedure. Guidelines for carrying out a risk assessment and for analyzing the hazards associated with chemicals can be found in Chapter 4 of Prudent Practices.
The procedures described in Organic Syntheses are provided as published and are conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
Methyl or ethyl 1-formylcyclopropanecarboxylate (2) or (2') is a unique bifunctional compound with both aldehyde and ester functionalities at the same C-1 position in a simple cyclopropane molecule. Cyclopropane 2 or 2', therefore, serves as a useful synthetic building block, especially for medicinal and process chemistry, and natural product synthesis. As illustrated in Figure 5, characteristic cyclopropane segments are installed in various pharmaceuticals utilizing 2 or 2'. The key feature is the chemoselective condensation of the aldehyde group in preference to the ester group.
(i) A traditional barbituric acid analog I containing a 5-spirocyclopropane moiety for a dihydroorotate dehydrogenase inhibitor,2 (ii) arylpyrazole compound II containing cyclopropanecarboxamide for a parasiticidal agent,3 (iii) arylsulfonylpiperazine III containingcyclopropanecarboxamide for a 11β-hydroxysteroid dehydrogenase inhibitor,4 (iv) 5,7,8,9-tetrahydropyrimido[4,5-b][1,4]diazepin-6-ones compound IV containing 3-spirocyclopropane moiety for a protein kinase inhibitor,5 (v) oxo-substituted aza-heterocylic compound V containing cyclopropane-carboxylic acid for the treatment and/or prevention of cardiovascular conditions,6 (vi) oxazolo[5,4-b]pyridine-5-yl compound VI containing cyclopropanecarboxylate for the treatment of cancer,7 (vii) 2,6-disubstituted benzobisoxazole compound VII containing cyclopropanecarboxylic acid for lysophosphatidic acid receptor antagonists,8 (viii) [1,2,4]triazolopyridine compound VIII containing cyclopropanecarboxylate for phosphodiestererase inhibitors,9 and (ix) 3-pyridyl-substituted benzamide compound IX containing 1-(difluoromethyl)cyclopropane for purinergic 2X7 (P2X7) receptor inhibitors.10

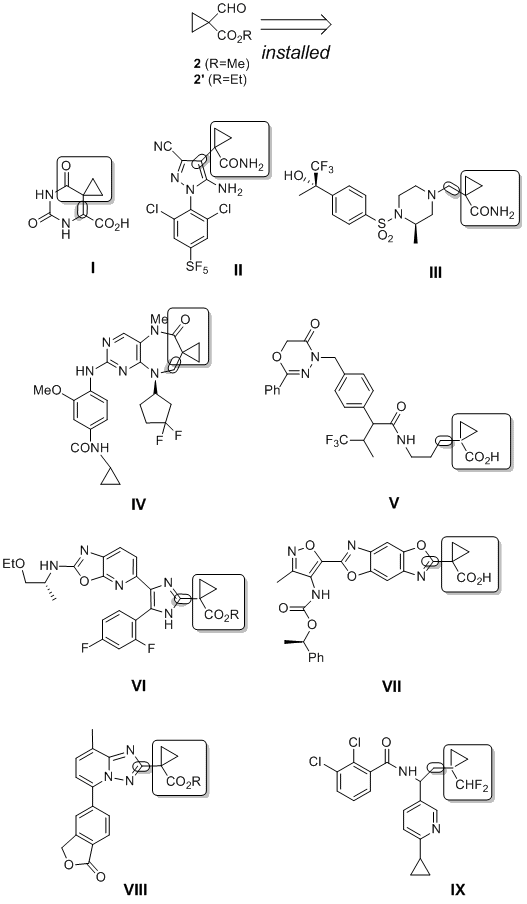

Figure 5. Pharmaceuticals incorporating cyclopropanecarboxylic acid or ester segments utilizing methyl or ethyl 1-formylcyclopropanecarboxylate (2) or (2')
As described above, 2 or 2' has a significant role in the structural scaffolds of a variety of pharmaceuticals possessing cyclopropanecarboxylic acid derivatives. Noteworthy is that application of this manipulation has increased as a screening technique to discover new pharmaceuticals, likely because cyclopropanes are requisite isosteres for the corresponding dimethyl compounds.
On the other hand, cyclopropane 2 contributed as the starting compound to a formal synthesis of aspidospermine, a distinctive aspidosperma alkaloid,11,12 in that a notable acid-catalyzed thermal rearrangement of cyclopropyl imine intermediate to 2-pyrroline is the key starting step (Scheme 1).13
Scheme 1. Formal synthesis of aspidospermine alkaloid starting from ethyl 1-formylcyclopropanecarboxylate (2')
On the whole, the reported synthetic methods for 2 or 2' are categorized into four approaches.
(i) As illustrated in Scheme 2, Ayers' half reduction protocol of methyl and ethyl cyclopropanedicarboxylates (3 and 3') is the most representative.14 Commercially available 3 and 3' (ca. twice as expensive as methyl 4-chlorobutanoate) were converted by the treatment with more than 2.0 equiv of Li(tBuO)3AlH, not to the desired aldehyde 2 and 2' directly, but to alcohols 4 and 4' in 88% and 79% yield, respectively.4,6,9 Dess-Martin (DM) oxidation of 4 or 4' using ca. 2 equiv of DM periodinane successfully afforded 2 (24%) or 2' (76%). The DIBAL reduction method with 3 was also applied, but required harsh conditions such as -78 °C and 7 h.5
Although this approach is likely the most accessible, Li(tBuO)3AlH is quite expensive (ca. $ 150 / 100 mL, 1.0 M) among commercially available hydride reagents and is not hydride atom-economical.
(ii) As an alternative method to (i),7 3 was converted by a half-hydrolysis reaction to monocarboxylic acid 5, which was transformed to 2 through mixed anhydride formation and successive NaBH4 reduction to give common intermediate 4. TEMPO oxidation of 4 with trichloroisocyanuric acid afforded the desired product 2, although an accurate yield was not described. This approach, however, is not straightforward and requires tedious procedures.

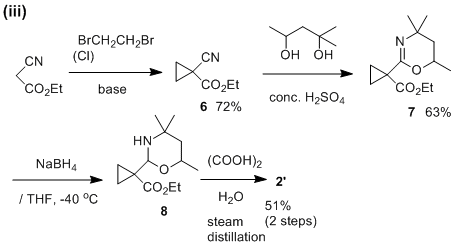

(iii) As depicted in Scheme 3, this approach utilizes the notable protocol of A. I. Meyer's group.15,16 Ethyl cyanoacetate was converted to ethyl 1-cyanocyclopropanecarboxylate 6 (commercially available in 5-g scale, but extremely expensive), which is transformed to masked aldehyde 8 through 1,3-dioxadine formation and successive NaBH4 reduction. Finally, acid hydrolysis of 8 gave the desired compound 2'. This method also requires four steps with high (80 °C) and low (‒40 °C) temperature reactions, the use of large amounts of conc. H2SO4, and steam distillation purification.
(iv) Scheme 4 depicts a method starting from γ-butyrolactone developed by Kuraray's group,17 which is the most relevant for our strategy. γ-Butyrolactone was α-formylated using HCO2Me/NaH and protected with an ethoxycarbonyl group to give 9. Conventional ring opening with chlorination using SOCl2 and ZnCl2 in EtOH gave precursor 10. Finally, cyclopropanation concomitant with deprotection was performed to afford 2'. This approach required a protective and deprotective sequence and afforded a moderate total yield (26%).
Due to the utility of 2 or 2', 5-100 g scale production methods have been disclosed in recent medicinal chemistry patents. The reported synthetic methods for 2 or 2', however, require column chromatographic purification despite the high volatility, or crude product is used in the next condensation step without purification. Our concise and straightforward method involves purification by simple distillation (the boiling point was documented for the first time) without the use of column chromatography, and is performed within short reaction and purification periods.
Scheme 2. Half-reduction method of cyclopropane precursor 3 or 3' derived from dimethyl malonate
Scheme 3. A. I. Meyers' transformation method starting from ethyl cyanoacetate

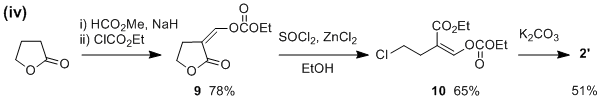

Scheme 4. Kuraray group's method starting from γ-butyrolactone
Among the various carbon homologation methods, α-formylation of simple esters with HCO2Me is a well-recognized useful reaction. A literature survey (SciFinder®) revealed reports of ca. 100 examples utilizing base reagent (e.g. NaOR, NaH, LDA, and LiHMDS)-mediated methods and 5 examples using TiCl4/amine-mediated methods. In general, a major conventional reaction using bases (e.g. NaOR, NaH) requires long reaction periods and results in moderate yield in almost all cases. LDA- and LiHMDS-promoted methods are superb with regard to yield but require rigorous procedures (reaction time schedule and accurate reagent equivalents) and low temperature (-78 °C).
α-Formylation of simple esters utilizing TiCl4/amine-mediated (Ti-Claisen) condensation18,19 for the synthesis of α-formylated esters 11 is depicted in Table 1 (13 examples). Titanium (Ti) (or Zr)-self-Claisen condensations between two of the same esters,20,21,22 Ti-crossed-Claisen condensations between esters or acids with acid chlorides,23,24 and Ti-Dieckmann (intramolecular Claisen) condensations25,26,27 have several advantages, including: (i) powerful C-C bond forming reactivity; (ii) highly available reagents with robust reactions; (iii) accessible temperature (0 °C to ambient); (iv) compatibility with base-labile functional groups such as γ-halogeno, γ-ketone carbonyl, etc., despite the high reactivity. On the other hand, a mild variant Ti-Claisen condensation method using ketene silyl acetals with acid chlorides also satisfies the four listed features [(i)-(iv)].28
The present α-formylation reaction of methyl 4-chlorobutanoate (1) is a distinctive example of the compatibility with a base-sensitive γ-chloro group. Synthesis of 2 is not possible using the base-mediated α-formylation method due to undesirable and predominant cyclopropane formation leading to methyl cyclopropanecarboxylate.
In conclusion, the present straightforward and robust synthetic strategy for the unique, but useful, building block 2 utilizing Ti-Claisen condensation provides a new promising avenue, especially for pharmaceutical syntheses.

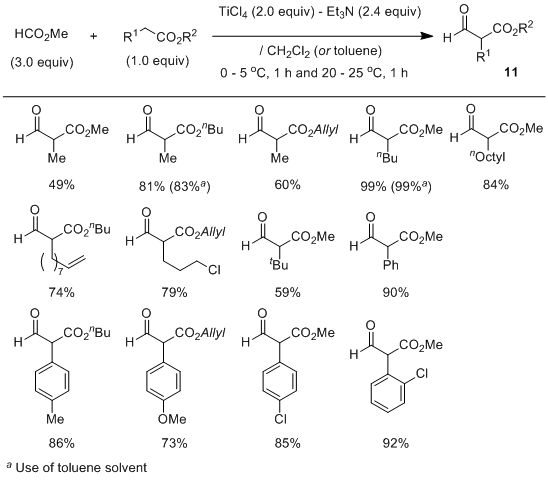

Table 1. α-Formylation of esters utilizing Ti-Claisen condensation

References and Notes
  1. Department of Chemistry, School of Science and Technology, Kwansei Gakuin University, 2-1 Gakuen, Sanda, Hyogo, 669-1337, Japan. Email: tanabe@kwansei.ac.jp. This research was partially supported by Grant-in-Aids for Scientific Research on Basic Areas (B) "18350056", Priority Areas (A) "17035087" and "18037068", and Exploratory Research "17655045" from the Ministry of Education, Department of Chemistry, School of Science and Technology, Kwansei Gakuin University, 2-1 Gakuen, Sanda, Hyogo, 669-1337, Japan
  2. Husbands, S.; Fraser, W.; Suckling, C. J.; Wood, H. C. S. Tetrahedron 1995, 51, 865-870.
  3. Billen, D.; Boyle, J.; Critcher, D. J.; Gethin, D. M.; Hall, K. T.; Kyne, G. M. WO 2006/134468 A1, p. 54.
  4. Sun, D.; Wang, Z.; Cardozo, M.; Choi, R.; DeGraffenreid, M.; Di, Y.; He, X.; Jaen, J. C.; Labelle, M.; Liu, J.; Ma, J.; Miao, S.; Sudom, A.; Tang, L.; Tu, H.; Ursu, S.; Walker, N.; Yan, X.; Ye, Q.; Powers, J. P. Bioorg. Med. Chem. Lett. 2009, 19, 1522-1527.
  5. Pierard, F.; Charrier, J-D. WO 2009/023269.
  6. Lampe, T.; Hahn, M.; Stasch, J-P.; Schlemmer, K-H.; Wunder, F.; Heitmeier, S.; Griebenow, N.; el Sheikh, S.; Li, V. M-J.; Becker, E-M.; Stoll, F.; Knorr, A. WO 2010/102717 A1, p. 111.
  7. Coates, D. A.; Gilmour, R.; Martin, J. A.; Martin de la Nava, E. M. WO 2012/074761 A1, p. 25.
  8. Buckman, B.; Nicholas, J. B.; Emayan, K.; Seiwert, S. D. WO 2013/025733 A1, p. 413.
  9. Nielsen, S. F.; Larsen, J. C. H. WO 2013/092739 A1, p. 24.
  10. Kilburn, J. P.; Rasmussen, L. K.; Jessing, M.; Eldemenky, E. M.; Chen, B.; Jiang, Y.; Hopper, A. T. WO 2014/057078 A1, p. 93.
  11. Stork, G.; Dolfini, J. E. J. Am. Chem. Soc. 1963, 85, 2872-2873.
  12. Ban, Y.; Sato, Y.; Inoue, I.; Nagai, M.; Oishi, T.; Terashima, M.; Yonemitsu, O.; Kanaoka, Y. Tetrahedron, Lett. 1965, 2261-2268.
  13. (a) Stevens, R. V.; Fitzpatrick, J. M.; Kaplan, M.; Zimmerman, R. L. J. Chem. Soc. D, 1971, 857-858. (b) Stevens, R. V.; DuPree, L. E. J. Chem. Soc. D, 1970, 1585-1586.
  14. Ayers, T. A. Tetrahedron Lett. 1999, 40, 5467-5470.
  15. (a) Meyers, A. I.; Nabeya, A.; Adickes, H. W.; Politzer, I. R.; Malone, G. R.; Kovelesky, A. C.; Nolen, R. L.; Portnoy, R. C. J. Org. Chem. 1973, 38, 36-56. An additional relevant route can include selective reduction of the analogous nitrile carboxylic acid: (b) Singh, R. K.; Danishefsky, S. J. Org. Chem. 1975, 40, 2969-2970. (c) Nicolaou, K. C.; Petasis, N. A.; Li, W. S.; Ladduwahetty, T.; Randall, J. L.; Webber, S. E.; Hernandez, P. E. J. Org. Chem. 1983, 48, 5400-5403.
  16. Fry, J. L.; Ott, R. A. J. Org. Chem. 1981, 46, 602-607.
  17. Ujita, K.; Kanehira, K. JP 2002/105029.
  18. Nakatsuji, H.; Nishikado, H.; Ueno, K.; Tanabe, Y. Org. Lett. 2009, 11, 4258-4261.
  19. Tanabe, Y. Bull. Chem. Soc. Jpn. 1989, 62, 1917-1924.
  20. Yoshida, Y.; Hayashi, R.; Sumihara, H.; Tanabe, Y. Tetrahedron Lett. 1997, 38, 8727-8730.
  21. Tanabe, Y.; Hamasaki, R.; Funakoshi, S. Chem. Commun. 2001, 1674-1675.
  22. Nakatsuji, H.; Ashida, Y.; Hori, H.; Sato, Y.; Honda, A.; Taira, M.; Tanabe, Y. Org. Biomol. Chem. 2015, 13, 8205-8210; See its references 10 and 17.
  23. Misaki, T.; Nagase, R.; Matsumoto, K.; Tanabe, Y. J. Am. Chem. Soc. 2005, 127, 2854-2855.
  24. Nagase, R.; Oguni, Y.; Ureshino, S.; Mura, H.; Misaki, T.; Tanabe, Y. Chem. Commun. 2013, 49, 7001-7003.
  25. Crane, S. N.; Corey, E. J. Org. Lett. 2001, 3, 1395-1397.
  26. Tanabe, Y.; Makita, A.; Funakoshi, S.; Hamasaki, R.; Kawakusu, T. Adv. Synth. Catal. 2002, 344, 507-510.
  27. Tanabe, Y.; Manta, N.; Nagase, R.; Misaki, T.; Nishii, Y.; Sunagawa, M.; Sasaki, A. Adv. Synth. Catal. 2003, 345, 967-970.
  28. Iida, A.; Nakazawa, S.; Okabayashi, T.; Horii, A.; Misaki, T.; Tanabe, Y. Org. Lett. 2006, 8, 5215-5218.

Appendix
Chemical Abstracts Nomenclature (Registry Number)

Methyl 4-chlorobutanoate (3153-37-5)

Methyl formate (HCO2Me) (107-31-3)

Titanium tetrachloride (TiCl4) (7550-45-0)

Triethylamine (Et3N) (121-44-8)

Potassium carbonate (K2CO3) (584-08-7)
