Org. Synth. 2019, 96, 474-493
DOI: 10.15227/orgsyn.096.0474
Discussion Addendum for: Fluorobis(phenylsulfonyl)methane (FBSM)
Xanath Ispizua-Rodriguez, Vinayak Krishnamurti,Mathew Coe, and G. K. Surya Prakash*
Original Article: Org. Synth. 2013, 90, 130
Discussion
Monofluoromethylation is an important transformation that has been employed as a strategy to introduce fluoroalkyl functionalities into molecules.2 Among the known reactions, nucleophilic monofluoromethylation stands out as an important approach in which a fluoroalkyl anion is generated and reacted with a suitable electrophile. Fluorobis(phenylsulfonyl)methane (FBSM) has been widely employed as a pronucleophile given that the electron-withdrawing nature of the phenylsulfonyl groups increases the acidity of the proton in the adjacent carbon atom, making its deprotonation facile and giving rise to a resonance-stabilized fluoromethide species3 that can react with several electrophiles. This compound was first synthesized by Shibata et al., through the electrophilic fluorination of bis(phenylsulfonyl)methane4 and was later used as a nucleophilic monofluoromethylating reagent. Prakash and coworkers envisioned a large-scale procedure to synthesize FBSM in reagent quantities (Figure 1).5

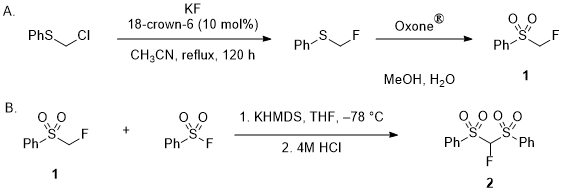

Figure 1. Prakash's large-scale synthesis of FBSM
The present addendum discloses the transformations available employing FBSM as a monofluoromethylation reagent (Scheme 1).
Scheme 1. FBSM as a masked nucleophile

Michael Reactions with FBSM

Michael reactions are one of the most important synthetic avenues to impart structural complexity to organic molecules. The acidity of FBSM enables its facile deprotonation even when using mild bases, with the resultant anion being a good nucleophile which has been reacted with a variety of Michael acceptors, furnishing C-protected monofluoromethyl compounds. One of the earliest of such transformations was performed by Prakash and coworkers in 2008 (Scheme 2).6 The authors prepared and screened a variety of fluoro(phenylsulfonyl)methanes, with the third substituent being a phenylsulfonyl, nitro, cyano, ester or ketone group. In reactions with α,β-unsaturated compounds, trimethylphosphine was found to be the most efficient catalyst, furnishing the desired products in moderate to excellent yields (Scheme 2a). The reaction is proposed to proceed via initial addition of the electron-rich phosphine to the electrophilic carbon of the Michael acceptor, producing the active base: a β-phosphonio enolate. Note that analogous intermediates are well documented in the Morita-Baylis-Hillman reaction. Deprotonation of FBSM by the formed base, followed by subsequent attack of the newly-formed nucleophile at the C-P+ carbon results in the formation of the desired products, along with the regeneration of the phosphine catalyst (Scheme 2b).

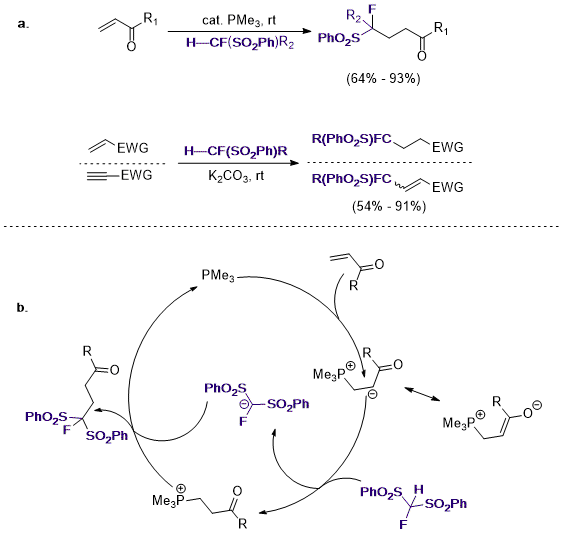

Scheme 2. Phosphine-catalyzed FBSM addition to α,β-unsaturated compounds
Shortly after this seminal work, Hu and coworkers investigated FBSM-type molecules as pronucleophiles in the fluoromethylation of α,β-unsaturated ketones, arynes, and alkynes.7 Each transformation provided a mixture of products, with the ratio of formed species dependent on the hardness/softness of the nucleophile (Scheme 3).

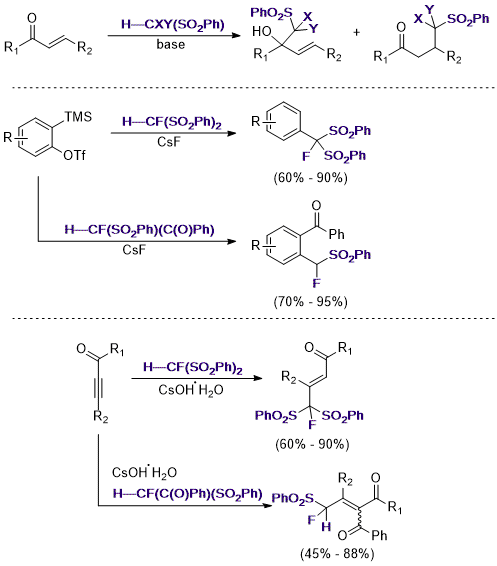

Scheme 3. Addition of FBSM to arynes, alkynes and α,β-unsaturated ketones
A reaction system for the long-elusive chiral monofluoromethylation came from the 2008 work by Shibata and coworkers, wherein FBSM was used as a pronucleophile in an asymmetric 1,4-addition to α,β-unsaturated ketones, with the stereochemistry set by a Cinchona alkaloid-derived ammonium salt.8 Generally high (ee: 84% - 98%) enantiomeric excesses were observed along with good yields. Further functionalization at the carbonyl group was demonstrated via a NaBH4-mediated reduction, keeping the phenylsulfonyl groups intact. Following this, oxidation to restore the carbonyl group results in simultaneous desulfurization, forming a monofluoromethyl group. Alternatively, a Mg0-mediated reduction of the alcohol results in desulfurization to yield the monofluoromethyl derivative (Scheme 4).
Scheme 4. Chiral monofluoromethylation of α,β-unsaturated ketones with FBSM
Chiral enamine catalysis has been extensively employed in the asymmetric functionalization of aldehydes and ketones (Scheme 5). In 2009, the Wang group documented an asymmetric conjugate addition of FBSM to enals, catalyzed by a chiral proline derivative.9 The active electrophile; the in-situ formed α,β-unsaturated iminium ion; is trapped by FBSM to form a β- substituted enamine. Subsequent hydrolysis of the enamine (loss of the proline derivative) affords the desired products in moderate to good yields and in excellent enantiomeric excess. Adding to the slew of enantioselective fluoromethylations of Michael acceptors, Córdova and coworkers added FBSM to 1,2-enals using chiral proline-type catalysts,10 similar to the work of Wang and coworkers.9 The authors used an -OTMS-containing catalyst in place of an -OTBS-containing one, generating the desired monofluoromethyl compounds in good yields. At the same time, Rios and coworkers also published a near-identical synthesis of β-monofluoromethyl aldehydes.11
Scheme 5. Asymmetric monofluoromethylation of α,β-unsaturated aldehydes and ketones
Another method for the enantioselective conjugate addition of FBSM to α,β-unsaturated ketones comes in the form of the 2009 paper by Kim and coworkers, wherein chiral primary amine catalysts were used to steer the stereochemical outcome of the reaction towards one enantiomer (Scheme 6).12 The thus formed products were obtained in moderate stereoselectivity and good to excellent yields. Noteworthy is the work of Hu and coworkers on the reversibility of 1,2-additions of FBSM across α,β-unsaturated carbonyl compounds, wherein the formation of 1,4-adducts was observed following the disappearance of the 1,2-adducts.13

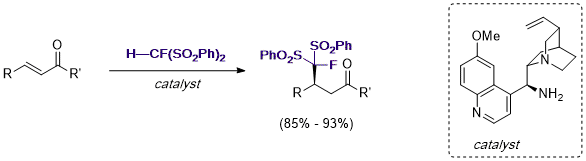

Scheme 6. β-Monofluoromethyl ketones via chiral primary amine catalysis
Despite iminium catalysis being widespread in organic chemistry, the converse process had not been studied (the conversion of an enamine to an iminium ion). That is, until the 2011 paper by Zhang et al., wherein in situ generated enamines were oxidized by a hypervalent iodine compound (IBX) (Scheme 7). The thus formed iminium ions were then reacted with FBSM, generating β-fluoromethyl compounds, which were then reduced to the corresponding alcohols using NaBH4.14

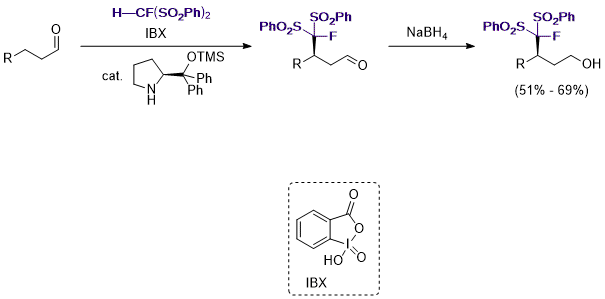

Scheme 7. IV-mediated oxidative monofluoromethylation
An in situ generated iminium ion, stemming from the desulfurization of an indole derivative, has been used as an electrophile in reactions with FBSM. In this work by Shibata and coworkers, the monofluoromethyl indole derivatives were prepared in excellent yields and generally displayed high enantiomeric excess (Scheme 8).15 As in previous work, radical desulfurization proceeds with retention of stereochemistry.

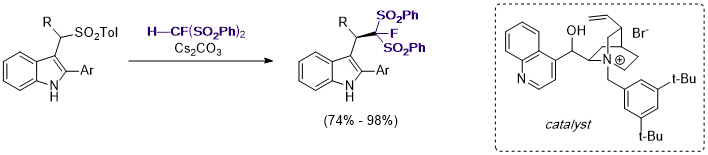

Scheme 8. Enantioselective monofluoromethylation of indole derivatives
Finally, in a collaborative effort, the labs of Yang and Rios jointly developed a cascade reaction for the synthesis of fluoroindane and fluorochromanol derivatives.16 The cascade begins with a conjugate addition of FBSM to the iminium ion born as a consequence of condensation between the aldehyde and the chiral amine. Upon the occurrence of a second Michael reaction, the fluoroindane is formed. Using (2-hydroxy)cinnamic acids results in the formation of fluorochromanols (Scheme 9).

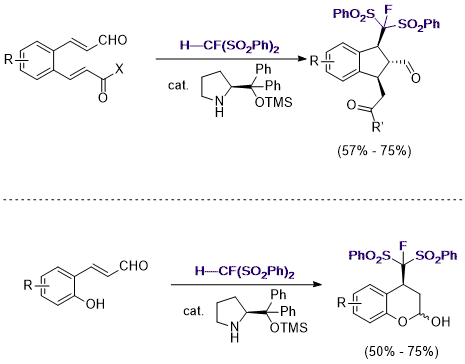

Scheme 9. Preparation of fluoroindanes and fluorochromanols

Substitution Reactions with FBSM

SN2': SN2' chemistry offers a viable route to obtain functionalized allylic compounds. The application of this concept to FBSM pronucleophile has facilitated the synthesis of various β,γ-unsaturated-α-fluoromethyl compounds. The first transformation of this type was disclosed collaboratively by Shibata and Toru in 2006 (Scheme 10).4 The authors performed an enantioselective allylic monofluoromethylation of allyl acetates using FBSM in combination with a palladium catalyst and chiral ligand, producing the desired allyl monofluoromethanes in moderate to good yields with high enantioselectivities.
Scheme 10. Enantioselective Pd-catalyzed allylic monofluoromethylation
An analogous reaction catalyzed by iridium in place of palladium was devised by Liu et al., wherein FBSM-containing terminal alkenes were prepared in excellent yields with good enantioselectivity (Scheme 11).17 The authors then proceeded to apply their methodology to the synthesis of monofluoromethyl ibuprofen, which was found to have enhanced analgesic properties.18

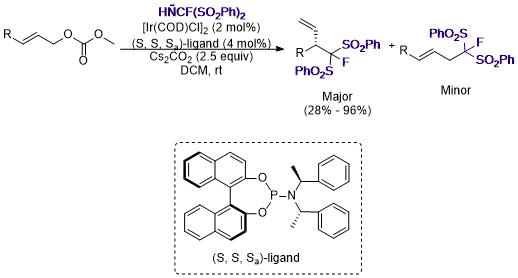

Scheme 11. Enantioselective Ir-catalyzed monofluoromethylation of allylic carbonates
As part of an investigation into the potency of phosphine-imidazoline ligands when applied to allylic substitution reactions, FBSM was reacted with an allylic acetate to generate the allyl-monofluoromethyl compound in good yield with excellent ee.19 Mei et al. discovered that the optimal catalyst for this system was η3-allyl palladium(II)chloride dimer, and a series of axially-chiral BINAP-type ligands were found suitable for the transformation (Scheme 12).

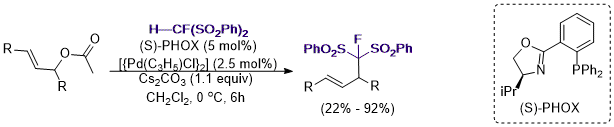

Scheme 12. Chiral ligand-assisted Pd-catalyzed α-fluoromethylation
Finally, Hartwig and coworkers developed a method for the production of tertiary allylic fluorides from tri-substituted alkene derivatives (Scheme 13).20 Catalyzed by an iridium species, the reaction system provided the desired products in moderate to excellent yields.
Scheme 13. Ir-catalyzed synthesis of allylic fluorides
SN2: Perhaps one of the most studied reactions, SN2 chemistry has become standard textbook science: the reaction of a nucleophile with a primary or secondary carbon with a good leaving group proceeding with inversion of stereochemistry. In 2009, Prakash and coworkers developed a base-mediated monofluoromethylation of primary alkyl halides using FBSM as the pronucleophile.21 The results of this chemistry are substrate-dependent: aliphatic alkyl halides produced the expected SN2 product, and benzyl halides afforded monofluoroolefins instead, facilitating the synthesis of β-fluorostyrenes (Scheme 14).
Scheme 14. Nucleophilic monofluoromethylation of primary alkyl halides
Mitsunobu-type: Mitsunobu chemistry has been used extensively in the deoxygenative functionalization of primary and secondary alcohols. In 2007, Prakash and coworkers delineated a DIAD/PPh3-mediated deoxygenation-monofluoromethylation of secondary alcohols, producing monofluoromethyl compounds in good to excellent yields (Scheme 15).22 In the case of enantiopure alcohols, the transformation proceeds with inversion of stereochemistry at the chiral alcohol carbon.

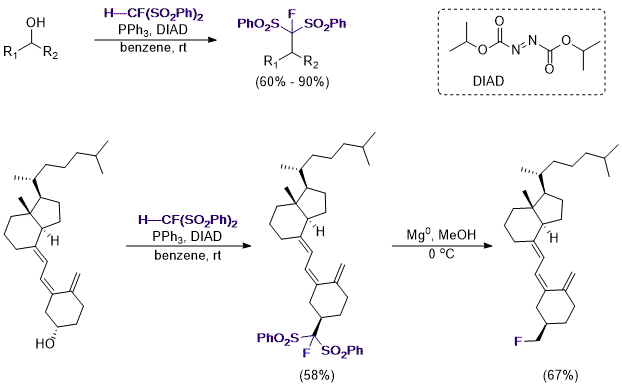

Scheme 15. Stereospecific deoxymonofluoromethylation of secondary alcohols

Epoxide Ring-opening

Epoxide ring-opening reactions have seen use primarily in the synthesis of β-substituted alcohols. One approach to β-monofluoromethyl alcohols was disclosed by Hu and coworkers in 2006.23 On deprotonation with n-BuLi, FBSM was reacted with various epoxides, of which the corresponding monofluoromethane derivatives were obtained in good to excellent yields (Scheme 16).

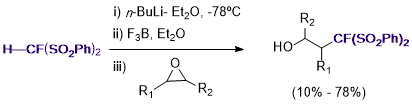

Scheme 16. Epoxide ring-opening with FBSM
Multicomponent Reactions with FBSM
The propensity of FBSM to behave as a pronucleophile has encouraged its implementation in multicomponent reactions. The first such system was developed by Shibata and coworkers in 2007, which allowed for the synthesis of β-monofluoromethyl amines starting from β-sulfonyl amines and using a chiral phase-transfer catalyst (Scheme 17). The products were furnished in good to excellent yields.
Scheme 17. Monofluoromethylation of amines by phase-transfer catalysis
In 2013, Prakash and coworkers presented a Mannich-type reaction between an aldehyde, a secondary amine, and FBSM, producing a variety of monofluoromethyl amines in moderate to good yields.24 The addition of NaH as a base was required for challenging substrates (Scheme 18).
Scheme 18. Synthesis of β-monofluoromethyl amines through Mannich-type intermediate
Additions to Alkenes and Alkynes
Fluoroiodobis(phenylsulfonyl)methane (FBSM-I) has been prepared by a deprotonation-iodination sequence developed by Prakash and coworkers (Scheme 19),25 and this methodology was later used by Shibata and coworkers in developing novel halogen-bonding catalysts.26 In Prakash's work, the iodomethane derivative was demonstrated to be a viable radical monofluoromethylation reagent, affording the desired monofluoromethyl products in good to excellent yields.

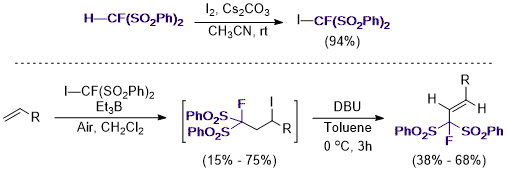

Scheme 19. Radical monofluoromethylation of olefins using FBSM-I
A palladium-catalyzed allylation of FBSM was later developed by Hu and coworkers.27 Mediated by HOAc, this method furnished the linear products in high yields and excellent regioselectivity (Scheme 20).
Scheme 20. Allylic monofluoromethylation of alkynes
In 2009, Shibata and coworkers devised a synthesis of monofluoromethyl allenes from 2-halo-1,3-dienes and FBSM, catalyzed by a palladium species.28 The desired allenes were synthesized in excellent yields (Scheme 21).
Scheme 21. Monofluoromethylation of conjugated dienes

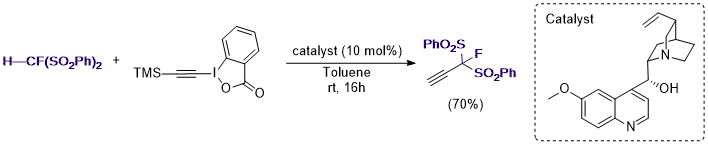

A transition metal-free, chiral ammonium salt catalyzed, electrophilic alkynylation method was developed by Kamlar et al, yielding alkynyl monofluoromethanes in high yields (Scheme 22).29
Scheme 22. Electrophilic alkynylation of FBSM
Addition to Morita-Baylis-Hillman Products

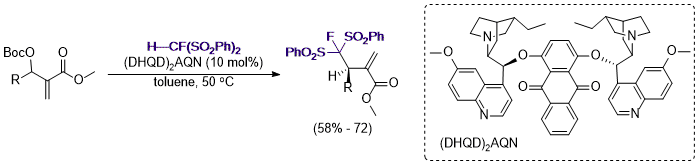

Morita-Baylis-Hillman (MBH) products have been extensively used as versatile synthons for the introduction of molecular complexity in substrates of interest. The first fluoromethylation of an MBH-carbonate was reported by Shibata and coworkers in 2011, wherein FBSM was used as a nucleophilic monofluoromethyl source (Scheme 23).30 The use of an axially chiral anthraquinone allowed the authors to obtain allyl-fluoromethyl compounds in moderate to good yields, with high enantioselectivity. Similar work is reported by Yang et al.31
Scheme 23. Enantioselective monofluoromethylation of MBH-carbonates
Later, Shibata conducted a similar transformation, wherein the base used to deprotonate FBSM was trifluoromethide generated in-situ from (trifluoromethyl)trimethylsilane (TMSCF3) (Scheme 24).32

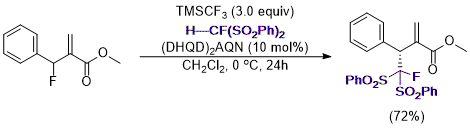

Scheme 24. Trifluoromethide-promoted monofluoromethylation
Additional Reactions of FBSM
FBSM has been added to C(sp2) electrophiles. In 2011, Hu and coworkers disclosed an addition of FBSM to aldehydes, mediated by Li+ coordination (Scheme 25).33 The nature of the cation was found essential in facilitating the addition, as Na+ and K+ bases did not produce favorable results. The desired monofluoromethyl carbinols were obtained in excellent yields.

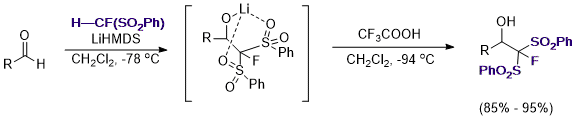

Scheme 25. Li+-promoted FBSM addition to aldehydes
Further elaboration on this type of chemistry was presented by the same group, two years later. Synthesized by the above method,33 monofluoromethyl carbinols were transformed into monofluoroolefins through step-wise treatment with benzyl chloride and then LiHMDS. The olefins were predominantly obtained in the Z configuration, and in good yields (Scheme 26).34
Scheme 26. Monofluoroolefination using FBSM
A DIAD-mediated α-fluoromethylation of tertiary amines is reported by Hu and coworkers, via a dehydrogenative coupling of the amines with FBSM (Scheme 27).35 The reaction is postulated to involve an iminium ion intermediate, which acts as the electrophile to react with FBSM nucleophile. The monofluoromethyl products were obtained in moderate to excellent yields.
Scheme 27. Dehydrogenative monofluoromethylation of amines
Perfluoroalkylsilanes have been extensively used as sources of nucleophilic fluoroalkyl species. The deprotonation-silylation of FBSM, as conducted by Prakash et al., provides access to a reagent requiring mild activation for nucleophilic monofluoromethylation of carbonyl compounds (Scheme 28).36
Scheme 28. Silylation of FBSM

References and Notes
  1. Loker Hydrocarbon Research Institute and Department of Chemistry, University of Southern California, Los Angeles, CA-90089-1661 (USA). *Corresponding author: gprakash@usc.edu. ORCID G. K. Surya Prakash: 0000-0002-6350-8325. The work is supported by the Loker Hydrocarbon Research Institute.These authors contributed equally to the work.Undergraduate research participant.
  2. (a) Liang, T.; Neumann, C. N.; Ritter, T. Angew. Chem. Int. Ed. 2013, 52 (32), 8214-8264. (b) Stereoselective Synthesis 3: Stereoselective Pericyclic Reactions, Cross Coupling, and C-H and C-X Activation, 1st ed.; Evans, Ed.; Georg Thieme Verlag: Stuttgart, 2011.
  3. Prakash, G. K. S.; Wang, F.; Shao, N.; Mathew, T.; Rasul, G.; Haiges, R.; Stewart, T.; Olah, G. A. Angew. Chem. Int. Ed. 2009 , 48 (29), 5358-5362.
  4. Fukuzumi, T.; Shibata, N.; Sugiura, M.; Yasui, H.; Nakamura, S.; Toru, T. Angew. Chem. Int. Ed. 2006, 45 (30), 4973-4977.
  5. Prakash, G. K. S.; Shao, N.; Wang, F.; Ni, C. Org. Synth. 2014, 90, 130.
  6. Prakash, G. K. S.; Zhao, X.; Chacko, S.; Wang, F.; Vaghoo, H.; Olah, G. A. Beilstein J. Org. Chem. 2008, 4.
  7. Ni, C.; Zhang, L.; Hu, J. J. Org. Chem. 2008, 73 (15), 5699-5713.
  8. Furukawa, T.; Shibata, N.; Mizuta, S.; Nakamura, S.; Toru, T.; Shiro, M. Angew. Chem. Int. Ed. 2008, 47 (42), 8051-8054.
  9. Zhang, S.; Zhang, Y.; Ji, Y.; Li, H.; Wang, W. Chem. Commun. 2009, No. 32, 4886-4888.
  10. Ullah, F.; Zhao, G.-L.; Deiana, L.; Zhu, M.; Dziedzic, P.; Ibrahem, I.; Hammar, P.; Sun, J.; Córdova, A. Chem. - Eur. J. 2009, 15 (39), 10013-10017.
  11. Alba, A.-N.; Companyó, X.; Moyano, A.; Rios, R. Chem. - Eur. J.2009, 15 (29), 7035-7038.
  12. Moon, H. W.; Cho, M. J.; Kim, D. Y. Tetrahedron Lett. 2009 , 50 (34), 4896-4898.
  13. Shen, X.; Ni, C.; Hu, J. Helv. Chim. Acta 2012, 95 (10), 2043-2051.
  14. Zhang, S.-L.; Xie, H.-X.; Zhu, J.; Li, H.; Zhang, X.-S.; Li, J.; Wang, W. Nat. Commun. 2011, 2, 211.
  15. Matsuzaki, K.; Furukawa, T.; Tokunaga, E.; Matsumoto, T.; Shiro, M.; Shibata, N. Org. Lett.2013, 15 (13), 3282-3285.
  16. Kim, Y. S.; Kim, S. M.; Wang, B.; Companyó, X.; Li, J.; Moyano, A.; Im, S.; Tošner, Z.; Yang, J. W.; Rios, R. Adv. Synth. Catal. 2014, 356 (2-3), 437-446.
  17. Liu, W.-B.; Zheng, S.-C.; He, H.; Zhao, X.-M.; Dai, L.-X.; You, S.-L. Chem. Commun. 2009, No. 43, 6604-6606.
  18. Su, H.; Xie, Y.; Liu, W.-B.; You, S.-L. Bioorg. Med. Chem. Lett. 2011, 21 (12), 3578-3582.
  19. Mei, L.; Yuan, Z.; Shi, M. Organometallics 2011, 30 (23), 6466-6475.
  20. Butcher, T. W.; Hartwig, J. F. Angew. Chem. Int. Ed. 2018, 57 (40), 13125-13129.
  21. Prakash, G. K. S.; Chacko, S.; Vaghoo, H.; Shao, N.; Gurung, L.; Mathew, T.; Olah, G. A. Org. Lett. 2009, 11 (5), 1127-1130.
  22. Prakash, G. K. S.; Chacko, S.; Alconcel, S.; Stewart, T.; Mathew, T.; Olah, G. A. Angew. Chem. Int. Ed.2007, 46 (26), 4933-4936.
  23. Ni, C.; Li, Y.; Hu, J. J. Org. Chem. 2006, 71 (18), 6829-6833.
  24. Prakash, G. K. S.; Gurung, L.; Jog, P. V.; Tanaka, S.; Thomas, T. E.; Ganesh, N.; Haiges, R.; Mathew, T.; Olah, G. A. Chem. - Eur. J. 2013, 19 (11), 3579-3583.
  25. Prakash, G. K. S.; Ledneczki, I.; Chacko, S.; Ravi, S.; Olah, G. A. J. Fluor. Chem. 2008, 129 (10), 1036-1040.
  26. Matsuzaki, K.; Uno, H.; Tokunaga, E.; Shibata, N. ACS Catal. 2018, 8 (7), 6601-6605.
  27. Ni, C.; Hu, J. Tetrahedron Lett.2009, 50 (52), 7252-7255.
  28. Ogasawara, M.; Murakami, H.; Furukawa, T.; Takahashi, T.; Shibata, N. Chem. Commun. 2009, 0 (47), 7366-7368.
  29. Kamlar, M.; Putaj, P.; Veselý, J. Tetrahedron Lett. 2013, 54 (16), 2097-2100.
  30. Furukawa, T.; Kawazoe, J.; Zhang, W.; Nishimine, T.; Tokunaga, E.; Matsumoto, T.; Shiro, M.; Shibata, N. Angew. Chem. Int. Ed. 2011, 50 (41), 9684-9688.
  31. Yang, W.; Wei, X.; Pan, Y.; Lee, R.; Zhu, B.; Liu, H.; Yan, L.; Huang, K.-W.; Jiang, Z.; Tan, C.-H. Chem. - Eur. J. 2011, 17 (29), 8066-8070.
  32. Nishimine, T.; Taira, H.; Tokunaga, E.; Shiro, M.; Shibata, N. Angew. Chem. Int. Ed. 2016, 55 (1), 359-363.
  33. Shen, X.; Zhang, L.; Zhao, Y.; Zhu, L.; Li, G.; Hu, J. Angew. Chem. Int. Ed. 2011, 50 (11), 2588-2592.
  34. Shen, X.; Ni, C.; Hu, J. Chin. J. Chem. 2013, 31 (7), 878-884.
  35. Huang, W.; Ni, C.; Zhao, Y.; Hu, J. New J. Chem. 2013, 37 (6), 1684-1687.
  36. Prakash, G. K. S.; Shao, N.; Zhang, Z.; Ni, C.; Wang, F.; Haiges, R.; Olah, G. A. J. Fluor. Chem. 2012, 133, 27-32.

Xanath Ispizua studied Pharmaceutical and Biological Chemistry at Universidad La Salle in Mexico City where she received her B.S. (Honors) in 2017. In fall 2018 she joined the University of Southern California where she is currently working towards her Ph.D. in Organic Chemistry under the tutelage of Prof. G.K. Surya Prakash. Her research is focused in transition-metal catalyzed fluorination and perfluoroalkylation of biologically relevant substrates.
Vinayak Krishnamurti received his B.Sc. in 2015 in Chemistry, Math and Physics at St. Joseph's College of Arts and Sciences in Bangalore, India. He is currently pursuing his Ph.D. under the supervision of Prof. G.K. Surya Prakash at the Loker Hydrocarbon Research Institute of the University of Southern California. His research is mainly focused in synthetic methods development in organofluorine chemistry.
G. K. Surya Prakash received his B.Sc. (Honors) in 1972 from Bangalore University, his M.Sc. in 1974 from IIT Madras, and his Ph.D. in 1978 under the tutelage of Prof. George Olah at USC. He joined the USC faculty in 1981 and is currently a Professor and Director of the Loker Hydrocarbon Research Institute, holding the Olah Nobel Laureate Chair in Hydrocarbon Chemistry. He is also the chair of the USC Chemistry Department. His research interests include fluorination and synthetic methods, mechanistic studies, superacid chemistry, electrochemistry, and the methanol economy. He is a very prolific author and has received several ACS national awards.
Matthew Coe is an undergraduate student researcher through the NSF-Funded REU program.
