Org. Synth. 2020, 97, 207-216

DOI: 10.15227/orgsyn.097.0207

Preparation of O-Pivaloyl hydroxylamine triflic acid

Submitted by Szabolcs Makai, Eric Falk, and Bill Morandi*¹

Checked by Zhaobin Han and Kuiling Ding

1. Procedure (Note 1)

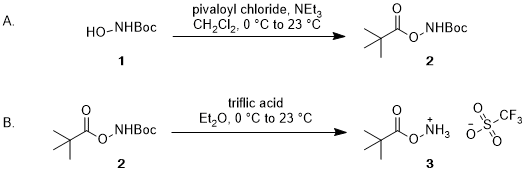

A. tert-Butyl pivaloyloxy carbamate (2). In air, a 1-L round-bottomed flask (29/32) equipped with a Teflon-coated egg-shaped magnetic stirbar (40 x 20 mm) is consecutively charged with N-Boc hydroxylamine (30.0 g, 0.225 mol) (Note 2), dichloromethane (CH₂Cl₂, 0.4 L, 0.6 M) (Note 2) and triethylamine (31.3 mL, 22.8 g, 0.225 mol, 1.0 equiv) (Note 2). The reaction vessel is then placed in an ice/water bath and stirred until all solids have dissolved (Note 3). The round-bottomed flask is equipped with a 50-mL dropping funnel (14/23, Teflon stopcock, pressure compensation) (Note 4) which is filled with pivaloyl chloride (PivCl, 28.0 mL, 27.5 g, 0.228 mol, 1.0 equiv) (Note 2). The dropping funnel is sealed with a rubber septum attached to a balloon (Note 5). PivCl is added dropwise to the stirring solution over 30 min (Note 6) and left for a further 30 min before the ice/water bath is removed. After an additional 2 hours of stirring at room temperature (Note 7), the resulting suspension is vacuum-filtered (Notes 8 and 9) and the filter cake is washed with CH₂Cl₂ (2 x 20 mL). The colorless filtrate is transferred to a 1-L separatory funnel (NS 29, Teflon stopcock) and washed subsequently with distilled water (0.20 L), a saturated aqueous solution of NaHCO₃ (0.20 L) and a saturated aqueous solution of NaCl (0.10 L). The final organic layer is dried by stirring over anhydrous Na₂SO₄ (15 g) for 15 min in a 1-L beaker and subsequent vacuum filtration. The filter residue is washed with CH₂Cl₂ (2 x 10 mL). Final removal of the solvent on a rotary evaporator (Note 10) affords 46.8 g (96%) of tert-butyl pivaloyloxy carbamate 2 as a colorless solid (Notes 11 and 12).

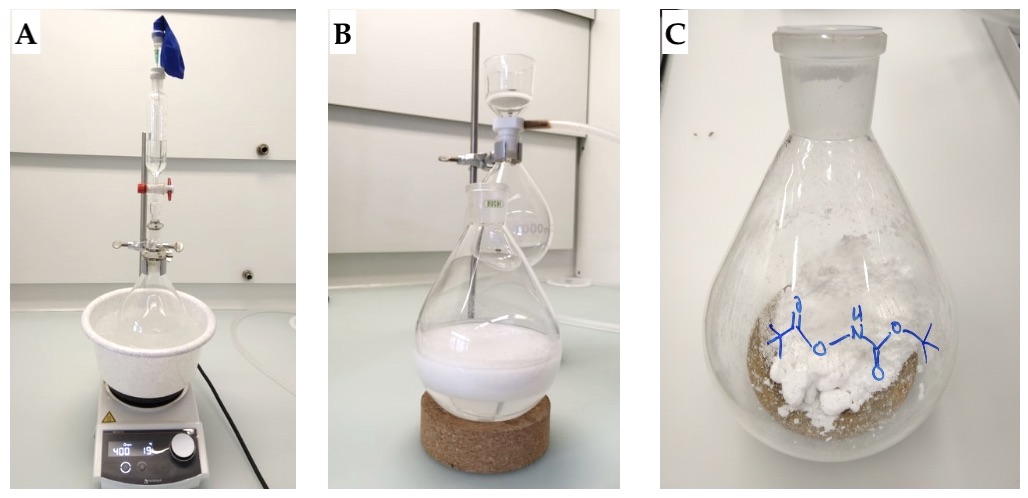

Figure 1. A) Reaction set-up, B) Filtration of the reaction mixture, and C) Product of pivaloylation step

B. O-Pivaloyl hydroxylamine triflic acid (3). In air, a 1-L two-necked, round-bottomed flask (29/32 in central position, 14/23 in side position) equipped with a Teflon-coated egg-shaped magnetic stirbar (40 x 20 mm) is charged with 45 g tert-butyl pivaloyloxy carbamate (2) (0.21 mmol, 1.0 equiv) followed by 0.4 L of Et₂O (0.6 M) (Note 2). The reaction vessel is placed in an ice/water bath and stirred until all solids have dissolved (Note 3). Then, the two-necked, round-bottomed flask is equipped with a 50-mL dropping funnel (14/23, Teflon stopcock, pressure compensation) (Note 4) which is filled with triflic acid (18 mL, 31 g, 0.20 mmol, 1.0 equiv) (Note 2). The acid is added over 30 min (Note 13) and left for further 30 min before the ice/water bath is removed. During additional 3 hours of stirring at room temperature (Note 7), a white precipitate is formed. Additional colorless precipitate crashes out upon addition of n-pentane (0.15 L) (Note 2). Subsequently, the suspension is vacuum filtered (Note 9), the reaction vessel rinsed with n-pentane (3 x 50 mL) and the filter cake carefully washed with ice-cold CH₂Cl₂ (3 x 50 mL) (Note 14). Upon drying under high vacuum for 16 h (Note 15), 45.6 g of O-pivaloyl hydroxylamine triflic acid 3 is obtained as a colorless, crystalline, free flowing solid in 83% yield (Notes 16 and 17).

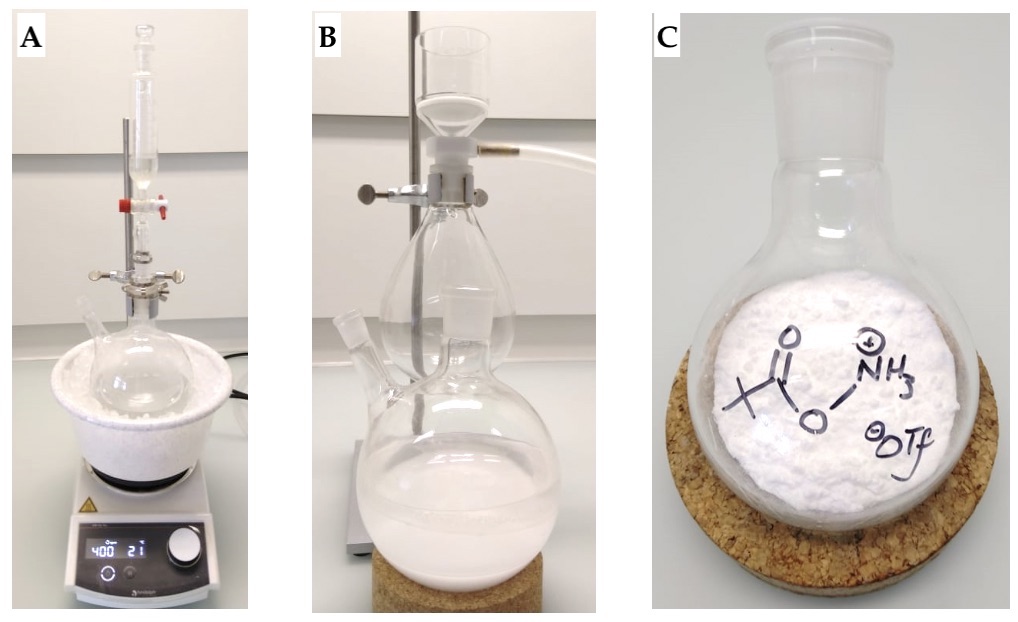

Figure 2. A) Reaction set-up, B) Filtration of the reaction mixture, and C) Product of deprotection step

2. Notes

1. Prior to performing each reaction, a thorough hazard analysis and risk assessment should be carried out with regard to each chemical substance and experimental operation on the scale planned and in the context of the laboratory where the procedures will be carried out. Guidelines for carrying out risk assessments and for analyzing the hazards associated with chemicals can be found in references such as Chapter 4 of "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011; the full text can be accessed free of charge at https://www.nap.edu/catalog/12654/prudent-practices-in-the-laboratory-handling-and-management-of-chemical. See also "Identifying and Evaluating Hazards in Research Laboratories" (American Chemical Society, 2015) which is available via the associated website "Hazard Assessment in Research Laboratories" at https://www.acs.org/content/acs/en/about/governance/committees/chemicalsafety/hazard-assessment.html. In the case of this procedure, the risk assessment should include (but not necessarily be limited to) an evaluation of the potential hazards associated with N-Boc-hydroxylamine, dichloromethane, triethylamine, pivaloyl chloride, sodium hydrogen carbonate, diethyl ether, triflic acid, n-pentane as well as the proper procedures for setting up experimental operations. Provide additional caution with regard to highly corrosive triflic acid, the use of diethyl ether which is prone to form peroxides and gaseous by-products generated upon N-Boc-deprotection.

2. N-Boc hydroxylamine (99%) was obtained from Fluorochem Ltd (The checkers purchased N-Boc hydroxylamine (>98%) from Tokyo Chemical Industry Co., Ltd.). Dichloromethane (HPLC grade, unstabilized) was obtained from VWR International GmbH (The checkers purchased dichloromethane (99.8%) from Acros Organics^TM). Triethylamine (99%) was obtained from Acros Organics^TM(The checkers purchased triethylamine (99%) from Alfa Aesar). Pivaloyl chloride (99%) was obtained from Sigma Aldrich (The checkers purchased pivaloyl chloride (99%) from Acros Organics^TM). Diethyl ether (≥ 99.7%) was obtained from VWR International GmbH (The checkers purchased diethyl ether (≥ 99.5%) from Tansoole). Triflic acid (97%) was obtained from Fluorochem Ltd (The checkers purchased triflic acid (98%) from Alfa Aesar). n-Pentane (≥ 99.0%) was obtained from VWR International GmbH (The checkers purchased n-Pentane (≥ 99%) from Tansoole). All chemicals were used as received.

3. A MR Hei-Tec stirring plate obtained from Heidolph Instruments GmbH & Co. KG was used throughout this manuscript. Unless reported otherwise, a stir rate of 400 rpm was used.

4. The graduated dropping funnel was connected to the wide neck via a glass adapter (29/32 male to 14/23 female).

5. The rubber septum was attached to a balloon via a needle adapter to prevent over-pressure. The reaction was carried out under air. Reactions performed under nitrogen gave a comparable result.

6. Even before complete addition of PivCl, the stirred reaction mixture became cloudy.

7. The room temperature throughout this manuscript refers to temperature between 20 and 25 °C.

8. The reaction can be monitored by TLC (SiO₂, CH₂Cl₂/Et₂O 15/1, starting material 1: R_f0.24, product 2: R_f 0.87; KMnO₄) to observe complete consumption of starting material (S refers to starting material 1. M refers to reaction mixture. P refers to product 2.).

Scheme 3. TLC monitoring of Step A

9. Glass fritted funnels obtained from ROBU-GLAS ® with porosity Por.4, 60 mm diameter and 125 mL capacity were used. For the filtration a vacuum pump supplied by Vacuubrand GmbH & Co. KG was used to establish reduced pressure. To wash the filter cake effectively, vacuum was turned off between separate washing cycles, washing solvent was added and the resulted mixture was stirred thoroughly with a stainless steel spatula before the washing solvent was removed by vacuum suction.

10. Rotary evaporator R-300 purchased from BÜCHI Labortechnik AG was used and rotation rate was 200 rpm, the temperature of the water bath was set to 40 °C. To remove the solvent, the following drying method was used: 30 min at 450 mmHg, 20 min at 300 mmHg, 10 min at 75 mmHg.

11. The white solid has the following characteristics, which matches those reported in the literature.²: mp 80-82 °C; ¹H NMR pdf (400 MHz, CDCl₃) δ: 1.30 (s, 9H), 1.49 (s, 9H), 7.76 (s, 1H); ¹³C NMR pdf (101 MHz, CDCl₃) δ: 27.0, 28.1, 38.2, 83.1, 155.8, 177.8; HRMS (ESI) m/z calcd. for C₁₀H₁₉NO₄Na⁺[M+Na]⁺: 240.1206. Found: 240.1205; IR (film): 3270, 2981, 1777, 1720, 1473, 1395, 1369, 1280, 1255, 1164, 1101, 1075, 1022, 859, 772, 754, 601 cm^-1. Purity of the compound was checked by elemental analysis for which the product from the rotary evaporator was broken up with a spatula and dried under high vacuum over 16 h (see Note 15): Anal. Calc. for C₁₀H₁₉NO₄: C, 55.28; H, 8.81; N, 6.45. Found: C, 55.27; H, 8.92; N, 6.44. Drying the product under high vacuum is not necessary for the next step.

12. A second run on the same scale yielded 46.6 g (95%) of product with the same purity.

13. The addition of triflic acid should be done with great care and attention during execution. First, the deprotection reaction creates significant amounts of gaseous by-products. Second, due to its high density, a steady dropping rate is difficult to achieve and the dropping might cease. Et₂O was chosen as solvent due to the fact that product 3 crashes out of the solvent and readily forms a white precipitate. When compared to experiments using THF or CH₂Cl₂ as solvent, the use of Et₂O resulted in a simplified work-up. The reaction is determined to be finished when no further significant gas evolution is observed. Further, TLC analysis as described in Note 8 can be used to monitor complete consumption of starting material 1.

14. The wash step with CH₂Cl₂ is necessary to remove an impurity from the reaction mixture with following spectroscopic characteristics: ¹H NMR (400 MHz, CD₃CN) δ: 1.44 (s, nH), 1.32 (s, nH).

15. High vacuum was established with a vacuum oil pump provided by Vacuubrand GmbH & Co. KG. For drying, a pressure lower than 0.08 mmHg was maintained.

16. The white, free flowing solid has the following characteristics: mp 139-141 °C; ¹H NMR pdf (400 MHz, CD₃CN) δ: 1.29 (s, 9H), 9.94 (br s, 3H); ¹³C NMR pdf (101 MHz, CD₃CN) δ: 26.8, 39.1, 121.4 (q, J = 317 Hz), 175.2; ¹⁹F NMR pdf (376 MHz, CD₃CN) δ: -79.36 (referenced against C₆F₆.³) IR (film): 2982, 2728, 1786, 1540, 1482, 1222, 1180, 1081, 1022, 856, 796, 756, 634, 585, 516, 490 cm^-1.Purity of the dried compound was checked by elemental analysis: Anal. Calc. for C₆H₁₂NO₅SF₃: C, 26.97; H, 4.53; N, 5.24. Found: C, 26.91; H, 4.64; N, 5.38.

17. A second run on the same scale yielded 46.1 g (84%) of product with the same purity.

18. Further recrystallization from nBuOAc (1 mL solvent / g solid) at 90 °C can be performed, but does not enhance the purity of the product. DSC data reported by Legnani et al. shows that the first exothermic event with compound 3 occurs at 164.5 °C (ΔH = 20.86 J/g), before the compound decomposes at 191.9 °C (ΔH = 296.97 J/g).⁴ The compound is stable at room temperature and can be stored under air for several weeks.

Working with Hazardous Chemicals

The procedures in Organic Syntheses are intended for use only by persons with proper training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011; the full text can be accessed free of charge at http://www.nap.edu/catalog.php?record_id=12654). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.

In some articles in Organic Syntheses, chemical-specific hazards are highlighted in red "Caution Notes" within a procedure. It is important to recognize that the absence of a caution note does not imply that no significant hazards are associated with the chemicals involved in that procedure. Prior to performing a reaction, a thorough risk assessment should be carried out that includes a review of the potential hazards associated with each chemical and experimental operation on the scale that is planned for the procedure. Guidelines for carrying out a risk assessment and for analyzing the hazards associated with chemicals can be found in Chapter 4 of Prudent Practices.

The procedures described in Organic Syntheses are provided as published and are conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.

3. Discussion

O-Pivaloyl hydroxylamine triflic acid 3 was first reported by the Fagnou group⁵ and used to install an O-pivaloyl hydroxylamine motif by reaction with benzoyl chlorides. Equipped this way, these molecules could undergo a rhodium-catalyzed annulation reaction without the use of an external oxidant. Subsequently, other groups have demonstrated the use of this moiety as an internal oxidant for the synthesis of various N-heterocycles.⁶

The facile synthesis and stability of O-pivaloyl hydroxylamine triflic acid (3) has also driven the use of this reagent in intermolecular amination reactions. The first use of 3 as direct aminating reagent was reported by Glorius and co-workers in a directed amination of arenes.² Its reactivity with alkenes in iron-catalyzed reactions was demonstrated by the Morandi group to obtain primary, unprotected aminoalcohols⁷ and aminochlorinated⁴ compounds.

Earlier protocols to synthesize triflate salt 3 all started from N-Boc-protected hydroxylamine and used pivalic anhydride for the pivaloylation step.^5,6e However, it turned out that the removal of unreacted anhydride (boiling point 193 °C) is cumbersome on larger scale. Replacing it with pivaloyl chloride, as described in this manuscript, delivers a cleaner product without the need for further purification. Milder reaction conditions can also be applied using this new protocol.

The subsequent N-Boc deprotection reaction with the highly reactive triflic acid forms the corresponding ammonium salt. Performing the reaction on a larger scale results in the formation of a by-product, which can be removed by an additional washing step.

In conclusion, a two-step procedure for the multi-decagram synthesis of O-pivaloyl hydroxylamine triflic acid (3) is disclosed herein. The new procedure should find broad application in synthesis due to its low cost (≈ 1 US$/g), simplicity of execution, and utility in subsequent amination reactions.
