Org. Synth. 2020, 97, 262-273

DOI: 10.15227/orgsyn.097.0262

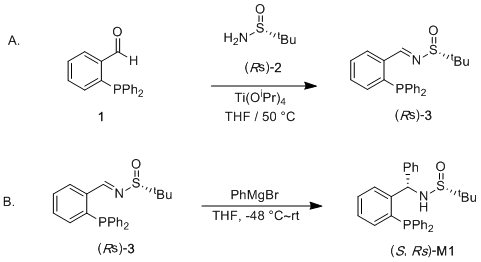

Stereoselective Synthesis of Chiral Sulfinamide Monophosphine Ligands (Ming-Phos)(S, Rs)-M

Anjing Hu, Zhan-Ming Zhang, Yuanjing Xiao,*¹ and Junliang Zhang*¹^,²

Checked by Anji Chen, Gopal Sirasani, Joseph Armstrong, and Chris Senanayake

1. Procedure (Note 1)

A. (R,E)-N-(2-(Diphenylphosphanyl)benzylidene)-2-methylpropane-2-sulfin-amide(Rs)-3. A 500-mL oven-dried, three-necked round-bottomed flask equipped with a teflon-coated magnetic stir bar (3.5 x 1.0 cm) is charged with 2-diphenylphosphinobenzaldehyde 1 (52.5 mmol, 15.24 g, 1 equiv) (Note 2), (R)-(+)-2-methylpropane-2-sulfinamide (Rs)-2 (57.8 mmol, 7.0 g, 1.1 equiv) (Note 3). The middle neck of the flask is equipped with a reflux condenser, which is connected to a gas outlet/inlet. One of the side-necks of the flask is closed with a rubber septum and the other side-neck is equipped with an internal temperature probe. The flask is evacuated and flushed three times with nitrogen before anhydrous THF (250 mL) (Note 4) is transferred into the flask via a plastic syringe through the rubber septum. The stirred mixture is heated to 50 °C in an oil bath, then titanium(IV) iso-propoxide (157.7 mmol, 46.6 mL, 3.0 equiv) (Note 5) is added and the resulting pale yellow mixture is stirred for 20 h at 50 °C under nitrogen atmosphere. Analysis by TLC indicates complete consumption of the aldehyde (Note 6). The yellow reaction mixture is diluted with EtOAc (100 mL) (Note 7), and vigorous stirring is continued for 0.5 h at 50 °C. The reaction mixture is then allowed to cool to room temperature (25 °C) and the reaction mixture is slowly added over a period of 5 min in three portions to a 2-L beaker that contains brine (200 mL) (Note 8) while stirring with a magnetic stir bar. In addition, the mixture is stirred using a glass rod for 5 min and the reaction mixture is filtered through a sintered funnel with Celite (Note 9) and washed with EtOAc (2 x 150 mL) to remove insoluble materials. The filtrate is transferred to a 3 L separatory funnel and water (200 mL) is added. The phases are separated, and the aqueous phase is extracted with EtOAc (3 x 50 mL). The combined organic layers are dried over anhydrous sodium sulfate (ca. 60 g) (Note 10), filtered through a filter paper into a 1.0 L round-bottomed flask and concentrated under reduced pressure (40 mmHg, 40 °C). The crude product is purified by flash column chromatography (Note 11) to afford 16.09 g (78%) as light-yellow gum (Notes 12, 13, and 14).

B. (S,Rs)-M1. A dried 250 mL three-necked, round-bottomed flask, equipped with a Teflon-coated magnetic stir bar (3.5 x 1.0 cm), is charged with (Rs)-3 (20 mmol, 7.87 g, 1 equiv). The middle neck of the flask is equipped with a pressure-equalizing addition funnel (125 mL) with a rubber septum, one side-neck of the flask is connected to a Schlenk line via a gas outlet/inlet, and the other side-neck is equipped with a thermocouple (Figure 1A). The flask is evacuated and flushed with nitrogen three times before anhydrous THF (125 mL) is transferred via plastic syringe into the addition funnel through the rubber septum, and the THF is then added to the round-bottomed flask. The flask is placed in a dry ice-acetonitrile bath in order to cool the reaction mixture to -48 °C. Phenylmagnesium bromide (40.0 mmol, 1.0 M in THF, 40.0 mL, 2.0 equiv) (Note 15) is transferred into constant pressure drop funnel via plastic syringe and then added dropwise over 30 minutes to the -48 °C solution (Figure 1B). Upon completion of the addition, the solution is stirred for 2 h (Figure 2). The cooling bath is removed, and the pale-yellow reaction mixture is allowed to warm to 25°C and stirred for additional 12 h. The reaction mixture is quenched by slow addition of saturated NH₄Cl (50 mL) and stirred for 0.5 h. The solution that contains the crude product is transferred to a 500 mL separatory funnel and water (100 mL) is added. The reaction mixture is extracted with EtOAc (3 x 50 mL), and the combined organic layers are dried over anhydrous Na₂SO₄ (ca. 20 g), filtered through filter paper into a 0.5 L round-bottomed flask, and concentrated under reduced pressure (40 mmHg, 40 °C) to give the crude product as brown oil. The crude product is placed under high vacuum (18 mmHg) for 10 min to remove the residual EtOAc.

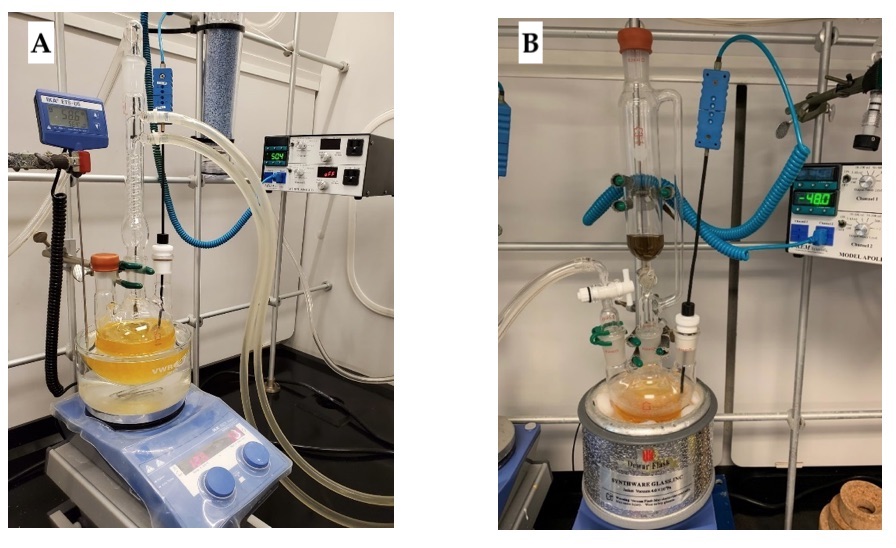

Figure 1. A) Reaction set-up; B) Grignard addition

To a -10 °C solution of the crude product in acetone (28 mL) (Note 16) is added water (20 mL) via an addition funnel and the solution stirred (150 rpm) for 3 h, resulting in the formation of a white precipitate (Note 17). The precipitate is filtered and washed with fresh cold (-10 °C) aqueous solution of acetone (H₂O/acetone = 5/7) (7.5 mL x 3). The white powder is collected and dried in vacuo to give 6.51 g of white product (S,Rs)-M1 (Figure 2). The filtrate is concentrated and extracted with EtOAc (3 x 15 mL), the combined organic layers are dried over anhydrous Na₂SO₄ (ca. 10 g), filtered and concentrated under reduced pressure (40 mmHg, 40 °C). The residue is purified by flash column chromatography (Note 18) on silica gel to afford 1.07 g of (S,Rs)-M1. The two portions of (S,Rs)-M1 are combined (7.58 g, 16.1 mmol, 80% yield) (Notes 19, 20, and 21).

Figure 2. White solid produced in Step B

(photo provided by the submitters)

2. Notes

1. Prior to performing each reaction, a thorough hazard analysis and risk assessment should be carried out with regard to each chemical substance and experimental operation on the scale planned and in the context of the laboratory where the procedures will be carried out. Guidelines for carrying out risk assessments and for analyzing the hazards associated with chemicals can be found in references such as Chapter 4 of "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011; the full text can be accessed free of charge at https://www.nap.edu/catalog/12654/prudent-practices-in-the-laboratory-handling-and-management-of-chemical. See also "Identifying and Evaluating Hazards in Research Laboratories" (American Chemical Society, 2015) which is available via the associated website "Hazard Assessment in Research Laboratories" at https://www.acs.org/content/acs/en/about/governance/committees/chemicalsafety/hazard-assessment.html. In the case of this procedure, the risk assessment should include (but not necessarily be limited to) an evaluation of the potential hazards associated with 2-diphenylphosphinobenzaldehyde , (R)-(+)-2-methylpropane-2-sulfin-amide, tetrahydrofuran, titanium(IV) isopropoxide, ethyl acetate, brine, Celite, sodium sulfate, hexanes, phenylmagnesium bromide, ammonium chloride, acetone, petroleum ether, dichloromethane, silica gel, and 1,3,5-trimethylbenzene.

2. 2-(Diphenylphosphino)benzaldehyde (97 %) was purchased from Combi-Blocks.

3. (R)-(+)-2-methylpropane-2-sulfinamide (97 %, 99 % ee) was obtained from Combi-Blocks and used as received.

4. Tetrahydrofuran (anhydrous, >99.9%, inhibitor-free) was purchased from Sigma Aldrich.

5. Titanium(IV) isopropoxide (98+%) was purchased from Acros Organic and used as received.

6. Reaction progress was monitored by TLC analysis, using petroleum ethe/ethyl acetate (5/1) as eluent. Visualization is accomplished with 254 nm UV light. TLC analysis showed the formation of sulfinamide 3 has R_f= 0.5 (Figure 3).

Figure 3. TLC analysis of the reaction mixture

7. Ethyl acetate (EtOAc) (ACS grade, 99.5%) was purchased from Oakwood Chemical.

8. Brine was prepared from sodium chloride, which was purchased from Oakwood Chemical.

9. Celite 545 was purchased from Acros Organics and used as received. The filtration is carried out through a sintered funnel (diameter: 10 cm), which is mounted on the top of a 2 L one-necked, round-bottomed flask and charged with 40 g celite. The funnel is connected to a vacuum source (40 mmHg).

10. Sodium sulfate (Na₂SO₄) (anhydrous, 99.5%) was purchased from Oakwood Chemical.

11. Silica gel (230-400 mesh, purchased from SiliCycle) (270 g) is loaded in a column by wet packing with hexanes. The crude oil (27.0 g) is dissolved in dichloromethane (20 mL) with the help of sonication and then loaded onto the column. The column is eluted with a mixture of hexanes and ethyl acetate as eluent, beginning with a 10/1 ratio, and then moving to a 5/1 ratio. The desired product (TLC analysis provides R_f = 0.7 in petroleum ether/EtOAc=5/1) appears on the column as a yellow band, which can be easily observed in order to determine when the material has fully eluted.

12. A second run on the same scale provided 15.89 g (77%) of the product.

13. Spectroscopic properties of product (Rs)-3 are as follows: ¹H NMR pdf(600 MHz, CDCl₃) δ: 1.08 (s, 9H), 6.95-6.99 (m, 1H), 7.21-7.27 (m, 4H), 7.28-7.38 (m, 7H), 7.44 (t, J = 7.4 Hz, 1H), 7.95-8.01 (m, 1H), 9.13 (d, J = 4.8 Hz, 1H);¹³C NMR pdf(150 MHz, CDCl₃) δ: 22.2, 57.3, 128.5 (Jc.p = 7.2 Hz), 128.6 (Jc.p = 7.0 Hz), 128.8 (Jc.p = 4.5 Hz), 130.2 (Jc.p = 4.0 Hz), 131.5, 134.0 (Jc.p = 12.0 Hz), 134.1 (Jc.p = 12.1 Hz), 136.3 (Jc.p = 11.0 Hz), 136.4 (Jc,p = 9.9 Hz), 137.2 (Jc.p = 17.4 Hz), 139.8 (Jc.p = 23.7 Hz), 161.8 (Jc.p = 18.3 Hz); ³¹P NMR pdf(243 MHz, CDCl₃) δ: -12.30. LC-MS [M + H]⁺ 394.1 calcd, 394.1 found.

14. The purity was determined to be >97% wt. by quantitative ¹H NMR pdf spectroscopy in 1.0 mL of CDCl₃ using 39.4 mg of the compound and 12 mg of 1,3,5-trimethylbenzene (98%, purchased from Sigma Aldrich and used as received) as an internal standard.

15. Phenylmagnesium bromide (1.0 M in THF) was purchased from Sigma Aldrich and used as received.

16. Acetone (99.5%) was purchased from Oakwood Chemical.

17. A sample (100 mg) of the prepared pure product was used as the seed crystal, which contributed to the formation of the white precipitate.

18. Silica gel (230-400 mesh, purchased from SiliCycle) (35 g) is loaded in a column by wet packing with hexanes. Residue (1.45 g) is dissolved in dichloromethane (5 mL) with the help of sonication and then loaded onto the column. The column is eluted with a mixture of hexanes and ethyl acetate as eluent, beginning with a 10/1 ratio, and then moving to a 4/1 ratio to obtain the desired product (TLC analysis provides R_f = 0.25 in hexanes/EtOAc=4/1).

19. A second run on the same scale provided 7.46 g (79%) of the product.

20. Spectroscopic properties of product(S,Rs)-M1 are as follows: ¹H NMR pdf(600 MHz, CDCl₃) δ: 1.20 (s, 9H), 3.87 (br s, 1H), 6.64 (dd, J = 3.5, 8.4 Hz, 1H), 7.01-7.12 (m, 6H), 7.14-7.27 (m, 8H), 7.28-7.33 (m, 3H), 7.40 (t, J = 7.5 Hz, 1H), 7.65 (dd, J = 4.2, 7.3 Hz, 1H);¹³C NMR pdf(150 MHz, CDCl₃) δ: 22.6, 55.9, 60.0 (Jc,p = 27.6 Hz), 127.3, 127.6, 127.9, 128.2, 128.3, 128.3 (Jc,p = 1.8 Hz), 128.4 (Jc, p = 8.6 Hz), 128.5 (Jc,p = 6.9 Hz), 129.3, 133.7 (Jc,p = 16.9 Hz), 133.9 (Jc,p = 17.3 Hz), 134.9, 135.8, 135.9, 136.0, 137.0 (Jc,p = 10.7 Hz), 142.0, 146.7 (Jc,p = 24.0 Hz). ³¹P NMR pdf(243 MHz, CDCl₃) δ: -18.26. LC-MS [M + H]⁺ 472.2 calcd, 472.1 found.

21. The purity was determined to be >97% wt. by quantitative ¹H NMR spectroscopy pdf in 1.0 ml of CDCl₃ using 47.2 mg of the compound and 12 mg of 1,3,5-Trimethylbenzene (98%, purchased from Sigma Aldrich and used as received) as an internal standard.

Working with Hazardous Chemicals

The procedures in Organic Syntheses are intended for use only by persons with proper training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011; the full text can be accessed free of charge at http://www.nap.edu/catalog.php?record_id=12654). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.

In some articles in Organic Syntheses, chemical-specific hazards are highlighted in red "Caution Notes" within a procedure. It is important to recognize that the absence of a caution note does not imply that no significant hazards are associated with the chemicals involved in that procedure. Prior to performing a reaction, a thorough risk assessment should be carried out that includes a review of the potential hazards associated with each chemical and experimental operation on the scale that is planned for the procedure. Guidelines for carrying out a risk assessment and for analyzing the hazards associated with chemicals can be found in Chapter 4 of Prudent Practices.

The procedures described in Organic Syntheses are provided as published and are conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.

3. Discussion

During the course of our study on enantioselective gold catalysis,³ we found that monocationic [LAu₂ClX] species (L = bisphosphine, X = weak counteranion), which were generated in situ from a 1:1 mixture of [LAu₂Cl₂] and a AgX activator, can give better enantioselectivity than those bicationic [LAu₂X₂] species, indicating that the second gold site might either just exert a steric influence or be involved in a second interaction with the substrate. Inspired by this interesting finding, we thus designed a new type of chiral ligand, namely Ming-Phos, which performed well in asymmetric metal catalysis.⁴

Two sets of diastereomeric (R, Rs)- and (S, Rs)-configured Ming-Phos ligands could be obtained in good yields with high diastereoselectivity from commercially available, inexpensive starting materials through a two-step procedure. The condensation reaction of 2-(diphenylphosphino) benzaldehyde 1 with (Rs)-tert-butanesulfinamide 2 in the presence of Ti(OPrⁱ)₄ efficiently delivered Chiral sulfinyl imine (Rs)-3 by recrystallization (15.8 g, 76 % yield as an average of two runs) according to a modified literature procedure.⁵ The stereoselective addition of PhMgBr to (Rs)-3 (checked above) afforded a set of Ming-Phos derivatives (S,Rs)-M1 with excellent diastereoselectivity (d.r.>15:1) (15 g, 79% yield as an average of two runs).^5b Accordingly, the other set of Ming-Phos ligands, namely (R,Rs)-M1, could also be obtained from the stereoselective addition of PhLi to (Rs)-3, which will be reported in due course.

Wide structural diversity can be achieved by changing the organometallic reagents. Some representative cases from the scope study are shown in Table 1 (yields were given as an average of two runs). Compared with elaborate chiral biaryl bisphosphine ligands, such as chiral atropisomeric biaryl phosphines, spirocyclic bisphosphines, phosphoramidites and helically chiral trivalent phosphines, The salient features of these new chiral ligands, including their simple structure, air stability, the practical preparation from readily available starting materials, easy modification, and good results in enantioselective transformations, render these ligands very attractive.

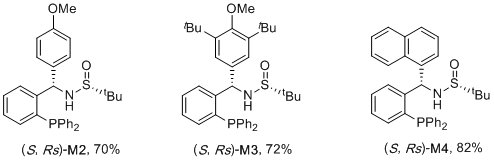

Table 1. Representative Chiral Sulfinamide Monophosphine Ligands (Ming-Phos) synthesized in the reported scope study
