Org. Synth. 2011, 88, 296-308

DOI: 10.15227/orgsyn.088.0296

AN ECONOMICAL SYNTHESIS OF 4-TRIMETHYLSILYL-2-BUTYN-1-OL

Submitted by Alexander N. Wein, Rongbiao Tong, and Frank E. McDonald.¹.

Checked by Florian Bächle and Andreas Pfaltz.².

1. Procedure

Caution! tert-Butylithium is extremely pyrophoric and must not be allowed to come into contact with the atmosphere. This reagent should only be handled by individuals trained in its proper and safe use. It is recommended that transfers be carried out by using a 20-mL or smaller glass syringe filled to no more than 2/3 capacity, or by cannula. For a discussion of procedures for handling air-sensitive reagents, see Aldrich Technical Bulletin AL-134. [Note added August 2009]

4-Trimethylsilyl-2-butyn-1-ol (2). A 500-mL three-necked, round-bottomed flask equipped with a two-tap Schlenk adapter connected to a bubbler and an argon/vacuum manifold (Note 1) in the left neck, a scaled 50-mL dropping funnel closed with a rubber septum on top in the middle neck, a rubber septum on the right neck and a magnetic stir bar (3 cm) is flame-dried, vented with argon and then allowed to cool to room temperature under argon atmosphere (Note 2). The rubber septum on the right is replaced by a low temperature thermometer. The flask is charged with anhydrous THF (150 mL) (Note 3), and 2-butyn-1-ol (1, 5.38 mL, 5.00 g, 69.9 mmol) (Note 4) is added. This solution is cooled to -70 °C (internal temperature) with a dry ice-acetone bath. Once cooled, n-butyllithium (2.5 M in hexanes, 28.0 mL, 69.9 mmol, 1.0 equiv) (Note 5) is added dropwise over the course of 80 min (Note 6), and afterwards the solution is stirred for an additional 10 min. Next, tert-butyllithium (1.7 M in pentane, 45.2 mL, 76.9 mmol, 1.1 equiv) (Note 7) is added dropwise over the course of 60 min (Note 8). The solution develops a yellow color during the addition of the alkyllithium reagents. After the addition of tert-butyllithium is completed, the reaction mixture is slowly warmed to 0 °C during two hours by keeping the flask directly over the dry ice-acetone bath. Formation of a precipitate is first observed between -45 °C and -30 °C and the mixture becomes cloudier as the temperature warms towards 0 °C. After two hours, the reaction vessel is maintained at 0 °C for 20 min with an ice-water bath.

The dropping funnel is replaced by a rubber septum, and the reaction vessel is recooled to -70 °C with a dry ice-acetone bath. Trimethylsilyl chloride (17.7 mL, 15.2 g, 140 mmol, 2.0 equiv, Note 9) is added via syringe pump at 45 mL / h to the suspension of the dianionic intermediate. During this addition the color changes from dark yellow to light brown and the precipitate dissolves again (Note 10). The reaction mixture is allowed to warm to room temperature and stirred overnight (16-17 h). The solution becomes orange, and a cream colored precipitate is formed during this period.

The reaction is then quenched by adding saturated aqueous ammonium chloride (100 mL) to the reaction mixture at room temperature, and the biphasic mixture is stirred vigorously for 5 min. Water (100 mL) is added to dissolve the precipitated salts, and the mixture is stirred for additional 25 min. Diethyl ether (100 mL) is added to dilute the organic layer, and the layers are separated in a 1-L separatory funnel. The aqueous layer is extracted with diethyl ether (2 x 25 mL), and the combined organic layers are transferred to a round-bottomed flask and concentrated to ~75 mL by rotary evaporation (35 °C, 210 mmHg) (Note 11). To this solution, a magnetic stir bar (3 cm) is added and 8.73 M acetic acid (15 mL, 130 mmol) (Note 12) is added to cleave the trimethylsilyl ether. The reaction mixture is stirred for one hour until full conversion is achieved according to TLC analysis (Note 13). The reaction mixture is then neutralized by portionwise addition of saturated aqueous sodium bicarbonate until the aqueous layer is slightly basic to pH paper (Note 14). The biphasic solution is transferred to a 1-L separatory funnel and the organic layer is collected. The aqueous layer is extracted with diethyl ether (2 x 50 mL), the combined organic layers are washed with brine (1 x 100 mL) and then dried over magnesium sulfate. After vacuum filtration through a medium porosity fritted funnel packed with Celite and washing with diethyl ether (2 x 25 mL), the crude mixture is concentrated under reduced pressure by rotary evaporation (35° C, 150 mmHg) to give a yellow oil (Note 15).

This crude product is purified by vacuum distillation over the course of five to six hours at 75 mmHg. A vacuum distillation setup consisting of a oil bath, a flask charged with compound, a 40 cm silvered and vacuum-jacketed Vigreux column, a distillation head with condenser and an udder connected to four 25-mL round-bottomed flasks immersed in a ice-water bath is used (Note 16). At 45 °C and 75 mmHg the first fraction is collected, which consists of trimethylsilanol. Subsequently the oil bath temperature is slowly increased to 140 °C, and the distillate obtained during this period is combined with the first fraction. The boiling point reaches 115 °C before it then drops. Then the oil bath temperature is increased to 145 °C. At this temperature a mixture of side product and desired product with a boiling point of 121 °C is collected in the second fraction (~ 2 g). After 1.5 hours the oil bath temperature is increased to 150 °C. The desired product is collected in fraction three with a boiling point of 124 °C. A slow increase of the oil bath temperature to 165 °C, followed by a slow decrease of the pressure to 23 mmHg provides additional product in high purity, which is collected in fraction four (Note 17). The combined fractions three and four give the product, 4-trimethylsilyl-2-butyn-1-ol (2) in 35-37% yield (3.5-3.7 g) as colorless oil that is stored in the freezer at -20 °C (Notes 18 and 19). The identity of the product is confirmed by ¹H NMR, ¹³C NMR, IR and elemental analysis (Note 20).

2. Notes

1. A two-tap Schlenk adapter connected to a bubbler and an argon/vacuum manifold is illustrated in Yu, J.; Truc, V.; Riebel, P.; Hierl, E.; Mudryk, B. Org. Synth. 2008, 85, 64-71.

2. All steps prior to the aqueous ammonium chloride quench were conducted with careful exclusion of air and moisture, using argon as an inert atmosphere.

3. Anhydrous tetrahydrofuran was purchased from Sigma-Aldrich and was stored over oven-dried 3Å molecular sieves under argon. Before each reaction, the water content of the THF was determined with a Denver Instruments Model 275KF Colorimetric Karl-Fischer Titrator to ensure less than 10 ppm water.

4. 2-Butyn-1-ol (1) was purchased from Sigma-Aldrich (98%) and used without further purification.

5. n-Butyllithium (2.5 M in hexanes) was purchased from Sigma-Aldrich and used as received.

6. n-Butyllithium was added discontinuously in order to keep the internal temperature between -70 °C and -65 °C. Slow addition was necessary since the reaction is highly exothermic. The submitters used a syringe pump with a flow rate of 60 mL / h for the addition of n-butyllithium.

7. tert-Butyllithium (1.7 M in pentane) was purchased from Sigma-Aldrich and used as received. tert-Butyllithium is highly pyrophoric, and extra care should be taken in handling. tert-Butyllithum was transferred via cannula transfer to the dropping funnel under argon pressure using a stainless steel cannula.

8. The internal temperature was kept between -70 °C and -65 °C during addition of tert-butyllithium. The submitters used a syringe pump with a flow rate of 60 mL / h for the addition of tert-butyllithium. However, Organic Syntheses recommends that addition of tert-butyllithium by syringe pump be avoided.

9. Trimethylsilyl chloride was purchased from Sigma-Aldrich (=98%) and used without further purification. This reagent is corrosive and evolves hydrochloric acid gas in the presence of moisture.

10. The submitters observed a colorless solution after addition of the first equivalent of trimethylsilyl chloride. After addition of the second equivalent the submitters observed a light green solution.

11. Pressure was set at 450 mmHg. When most of the diethyl ether was evaporated the pressure was reduced to 210 mmHg. The checkers observed formation of a light grey precipitate during evaporation of the solvent which dissolved again upon addition of aqueous acetic acid.

12. This corresponds to a 50% aqueous solution of acetic acid. This reagent is corrosive.

13. Thin layer chromatographic analysis was conducted with silica gel-coated polyester sheets (Macherey-Nagel), using cyclohexane : ethyl acetate (4 : 1) as eluent, and were developed with p-anisaldehyde / aqueous sulfuric acid. Under these conditions, the intermediate trimethylsilyl ether exhibited an R_f of 0.9 (and stained red) and the product alcohol (2) exhibited an R_f of 0.4 (and stained red). The submitters used hexanes : ethyl acetate (4 : 1) as eluent and observed the same R_f values.

14. A volume of 150-160 mL of saturated aqueous sodium bicarbonate was added.

15. The diethyl ether was removed at 450 mmHg. Afterwards the pressure was stepwise reduced to 150 mmHg.

16. The submitters used a 20 cm vacuum-jacketed Vigreux column and a pressure of 150 mmHg for the distillation. However in the checkers' hand a complete separation of the major side product and the product was not possible with this procedure. The removed side product was always obtained as a mixed fraction with the product. Due to the high temperatures during the six-hour distillation, formation of a decomposition product was observed which was difficult to separate. The checkers identified the major side product by ¹H NMR, ¹³C NMR and IR being most likely the isomerized allene (2-(trimethylsilyl)buta-2,3-dien-1-ol).

17. The submitters described an impurity at 119 °C (150 mmHg), followed by the product at 123 °C (150 mmHg).

18. The submitters described the product as a stable, pale yellow oil. However the checkers observed the development of a yellow color and new peaks in ¹H NMR upon storage of the product at room temperature.

19. The checkers could isolate another 0.8-1.1 g of product by subjecting the mixed fraction two to flash column chromatography. Flash column chromatography was performed using a 5.5 cm wide and 22 cm high column packed with Fluka silica gel 60 (powder, 0.040-0.063 mm, 250 g) and 20 mL fractions. The eluent used was cyclohexane : ethyl acetate (6 : 1), with KMnO₄ as TLC stain (R_f allene = 0.24, R_f product = 0.18, R_f impurity = 0.13). After a 250 mL forerun and five mixed fractions with the allene, pure product appeared in fractions 29-50.

20. For (2): ¹H NMR pdf(400 MHz, CDCl₃) δ: 0.08 (s, 9 H), 1.47 (t, J = 2.6 Hz, 2 H), 1.93 (br s, 1 H), 4.21 (td, J = 2.6 Hz, 0.5 Hz, 2 H); ¹³C NMR pdf(101 MHz, CDCl₃) δ: 2.0, 7.2, 51.6, 77.3, 84.4; IR (neat film, NaCl): 3548, 3110, 2848, 2216, 1249, 1011, 851 cm^-1; Anal. calcd. for C₇H₁₄OSi: C: 59.09, H: 9.92; found: C: 58.84, H: 9.88. Safety and Waste Disposal Information All hazardous materials should be handled and disposed of in accordance with "Prudent Practices in the Laboratory"; National Academy Press: Washington, DC, 1995. Specifically, aqueous and organic phase wastes (residual solvents) were separated before disposal, and solid wastes (MgSO₄, Celite) were also separated before disposal. As standard operating procedure, personnel should wear safety glasses, a laboratory jacket, and latex gloves for each step.

3. Discussion

The title compound, 4-trimethylsilyl-2-butyn-1-ol (2), was originally prepared by formylation of the metal acetylide arising from 3-trimethylsilyl-1-propyne (3, Figure 1).³

Figure 1. Original synthesis of 4-trimethylsilyl-2-butyn-1-ol (2)

In our hands, we have found that yields are variable in the original procedure, as the formaldehyde (generated by heating paraformaldehyde) condenses and repolymerizes upon addition to the cold (-78 ^oC) alkynyllithium solution, thus blocking the inlet. Furthermore, 3-trimethylsilyl-1-propyne (3) is relatively expensive. The alternative preparation described here begins with commercially available 2-butyn-1-ol (1), beginning with sequential O- and C-deprotonation followed by double silylation of (5), and concluding with chemoselective hydrolysis of the silyl ether (6, Figure 2).⁴

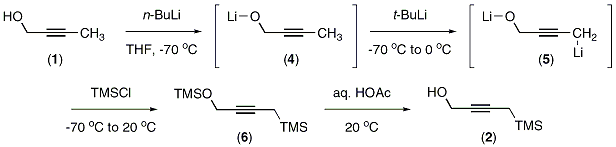

Figure 2. This synthesis of 4-trimethylsilyl-2-butyn-1-ol (2), depicting key intermediates

The alcohol of the title compound (2) can be converted into several other functional groups, such as the aldehyde (7, Figure 3),^3b as well as conversion into electrophilic derivatives for formation of carbon-carbon,⁴^,⁵^,⁶ carbon-nitrogen,⁷ carbon-oxygen,⁸ and carbon-tin bonds.⁹ The internal

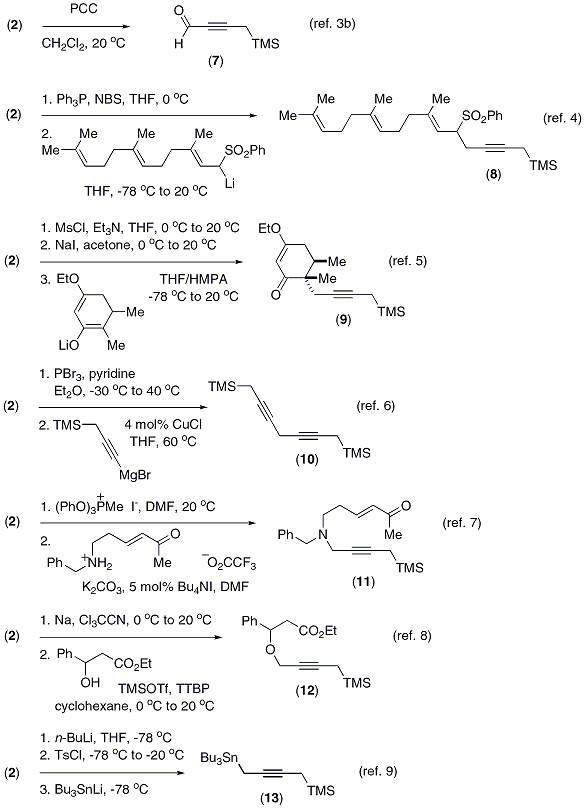

Figure 3. Functionalization of the alcohol of (2)

alkyne can also be converted into the trans- or cis-alkenes (14, 15, Figure 4), as functionalized allylic silane reagents.^3c^,¹⁰ Lewis acid-promoted protonation of (2) affords 2,3-butadien-1-ol (16).¹¹ The hydroxyl group directs hydrostannylation to the proximal carbon of the alkyne, to afford the Z-vinylstannane (17) under kinetic conditions.¹² The propargylic silane serves as a nucleophile upon Lewis acid-promoted reactions with aldehydes to provide functionalized allenes (18), (20), and (21, Figure 5).^3a^,⁸^,¹³ The corresponding transformations with acetals and N-acylaminals have also been reported.¹⁴ ¹⁵

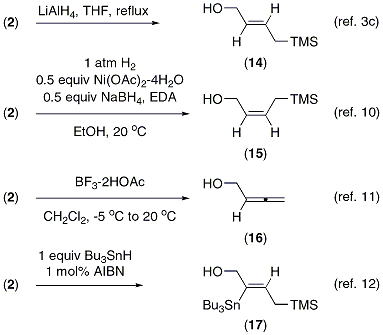

Figure 4. Functionalization of the alkyne of (2)

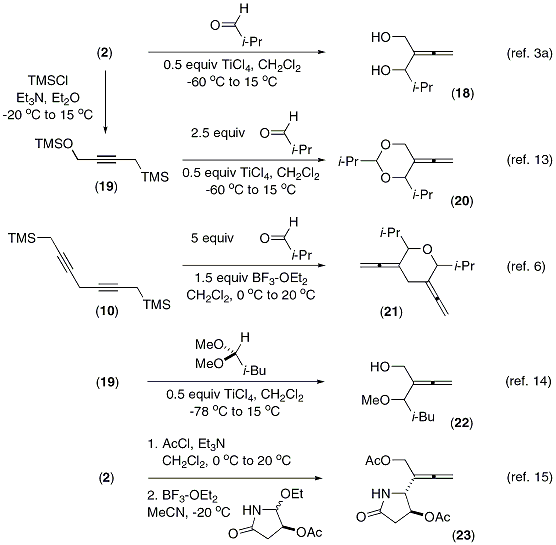

Figure 5. Intermolecular additions of propargylic silanes arising from (2)

Several Brønsted acid-promoted intramolecular cyclizations have also been accomplished with propargylic silanes arising from (2), tethered to aldehydes (24) or N-acylaminals (26), forming the corresponding cyclic structures bearing exocyclic allenes (25, 27, Figure 6).⁸^,¹⁶ Moreover, Lewis acid-promoted cyclizations have also been reported in conjugate additions with (11) as well as polyepoxide-alkene cyclizations from (29), to provide the corresponding exocyclic allenes (28, 30).⁴^,⁷

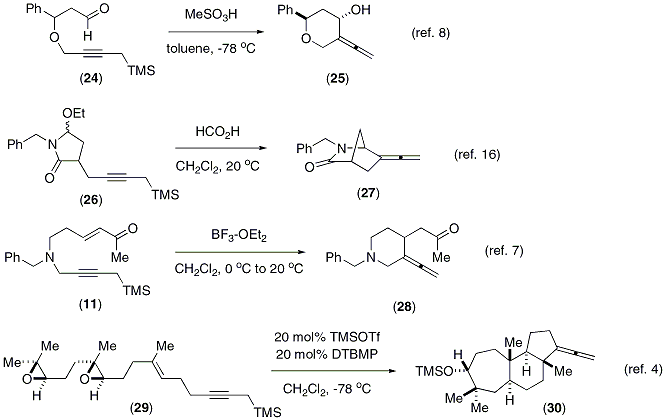

Figure 6. Intramolecular cyclizations of propargylic silanes arising from (2)

References and Notes

Department of Chemistry, Emory University, Atlanta, Georgia 30322 USA Financial support was provided by the National Science Foundation (CHE-0516793).
Department of Chemistry, University of Basel, St. Johanns-Ring 19, CH-4056 Basel.
(a) Pornet, J.; Randrianoelina, B.; Miginiac, L. Tetrahedron Lett. 1984, 25, 651-654. (b) Angoh, A. G.; Clive, D. J. L. J. Chem. Soc., Chem. Commun. 1984, 534-536. (c) Mastalerz, H. J. Org. Chem. 1984, 49, 4092-4094.
Tong, R.; Valentine, J. C.; McDonald, F. E.; Cao, R.; Fang, X.; Hardcastle, K. I. J. Am. Chem. Soc. 2007, 129, 1050-1051.
Majetich, G.; Lowery, D.; Khetani, V.; Song, J. S.; Hull, K.; Ringold, C. J. Org. Chem. 1991, 56, 3988-4001.
Aubert, P.; Pornet, J. J. Organomet. Chem. 1997, 538, 211-221.
Solé, D.; García-Rubio, S.; Bosch, J.; Bonjoch, J. Heterocycles 1996, 43, 2415-2424.
Jervis, P. J.; Kariuki, B. M.; Cox, L. R. Org. Lett. 2006, 8, 4649-4652.
Yu, C.-M.; Yoon, S.-K.; Lee, S.-J.; Lee, J.-Y.; Kim, S. S. Chem. Commun. 1998, 2749-2750.
Harmata, H.; Ying, W.; Barnes, C. L. Tetrahedron Lett. 2009, 50, 2326-2328.
Pornet, J.; Damour, D.; Miginiac, L. J. Organomet. Chem. 1987, 319, 333-343.
(a) Nativi, C.; Taddei, M. J. Org. Chem. 1988, 53, 820-826. (b) Nativi, C.; Taddei, M.; Mann, A. Tetrahedron 1989, 45, 1131-1144.
Pornet, J.; Damour, D.; Randrianoelina, B.; Miginiac, L. Tetrahedron 1986, 42, 2501-2510.
Pornet, J.; Miginiac, L.; Jaworski, K.; Randrianoelina, B. Organometallics 1985, 4, 333-338.
Breman, A. C.; Dijkink, J.; van Maarseveen, J. H.; Kinderman, S. S.; Hiemstra, H. J. Org. Chem. 2009, 74, 6327-6330.
(a) Klaver, W. J.; Hiemstra, H.; Speckamp, W. N. Tetrahedron 1988, 44, 6729-6738. (b) Klaver, W. J.; Moolenaar, M. J.; Hiemstra, H.; Speckamp, W. N. Tetrahedron 1988, 44, 3805-3818.
