Org. Synth. 2012, 89, 471-479
DOI: 10.15227/orgsyn.089.0471
Reductive Radical Decarboxylation of Aliphatic Carboxylic Acids
Submitted by Eun Jung Ko
1, Craig M. Williams
1, G. Paul Savage
2, and John Tsanaktsidis
2
.
Checked by Samantha R.
Levine, Aaron Bedermann, and John L.
Wood.
1. Procedure
An oven-dried (Note 1) 500-mL four-necked, round-bottomed flask (Note 2) is equipped with a 3-cm Teflon-coated oval stir bar, a 125-mL pressure-equalizing addition funnel sealed with a septum, a thermometer, a septum, and a reflux condenser fitted with a gas inlet adapter and connected to a dual manifold (Note 3).
The reaction vessel is charged with chloroform (120 mL) (Note 4), 1-hydroxypyridine-2(1H)-thione, sodium salt (5.90 g, 39.6 mmol, 1.2 equiv) (Note 5) and 4-N,N-dimethylaminopyridine (0.040 g, 0.33 mmol, 0.01 equiv) to give an off-white suspension.
The addition funnel is charged with palmitoyl chloride (10 mL, 9.06 g, 33.0 mmol, 1.0 equiv) followed by chloroform (60 mL), and the entire apparatus is blanketed with a slight positive pressure of nitrogen to maintain an inert atmosphere throughout the course of the reaction (Note 6).
The reaction vessel is heated to reflux over 25 min (silicon oil bath, external bath temperature 80 °C, internal temperature 57 °C) and the palmitoyl chloride solution is then added drop-wise over 85 min with concomitant irradiation from a tungsten lamp (120V, 150W) (Note 7).
The reaction mixture remains a suspension, which gradually turns yellow upon the addition of palmitoyl chloride.
Visible evolution of carbon dioxide is observed by 30 min.
After an additional 25 min of stirring an orange suspension is observed (Note 8).
Heating and irradiation is then discontinued and the resulting orange/brown suspension is allowed to cool to an internal temperature of 25 °C and transferred to a 500-mL separatory funnel containing 1M HCl (100 mL) and CH2Cl2 (100 mL).
The aqueous phase is separated and extracted with CH2Cl2 (3 × 50 mL).
The combined organic layers are washed with saturated NaCl solution (100 mL), dried over 5.9 g of MgSO4, filtered through a 350 mL medium porosity sintered glass funnel, and concentrated by rotary evaporation (bath temperature increased from 25 to 35 °C, 250 mmHg) and then at 3 mmHg to afford a yellow-brown oil.
The neat product is charged on a plug (6 × 10 cm) of 150 g of silica gel (Note 9) and eluted with 1 L of petroleum ether 35 - 60 °C directly into a 2-L round-bottomed flask (Note 10).
This solution is concentrated by rotary evaporation (bath temperature increased from 25 to 30 °C, pressure reduced from 400 to 250 mmHg) and then at 3 mmHg to afford 6.29 g (90%) (Note 11) of pentadecane
as a clear, colorless oil (Note 12).
2. Notes
1.
The submitters used an oven set to 180 °C, assembled the apparatus while still hot, and allowed it to cool to ambient temperature (23 °C) under vacuum (0.9 mmHg).
The checkers used an oven set to 180 °C, allowed the apparatus to cool to ambient temperature (20 °C) in a dessicator containing Drierite, assembled it, and evacuated and backfilled the system three times with nitrogen.
2.
The submitters used a 500-mL two-necked round-bottomed flask, the checkers chose to use a four-necked flask to facilitate TLC and internal reaction temperature monitoring.
3.
Depiction of the experimental set-up, including the position of the light source, is illustrated in
Figure 1.
4.
The submitters obtained 4-
N,
N-dimethylaminopyridine (99%) and
palmitoyl chloride (98%) from Sigma-Aldrich, Inc.
which were used as received.
Chloroform (99.8%) was purchased from ChemSupply Co., Inc.
and distilled from P
2O
5 prior to use.
The checkers obtained 4-
N,
N-dimethylaminopyridine (99%) from Acros Organics and
palmitoyl chloride (98%) from MP Biomedicals, LLC., both of which were used as received.
Chloroform (99.8%) was purchased from Mallinckrodt Chemicals, Inc., and was washed with water, dried over K
2CO
3, and distilled from Na
2SO
4 prior to use.
5.
The submitters purchased 1-hydroxypyridine-2(1
H)-thione, sodium salt as a 40 % solution in water from Merck.
The water was removed under reduced pressure (40 °C, 20 mmHg) and the resulting yellow solid was recrystallized from ethanol to give a white powder.
The checkers purchased 1-hydroxypyridine-2(1
H)-thione, sodium salt as a 40 % solution in water from Alfa Aesar.
The water was removed under reduced pressure (30 °C, 3 mmHg) and the resulting yellow solid was dissolved in ethanol and triturated with hexanes to give an off-white powder.

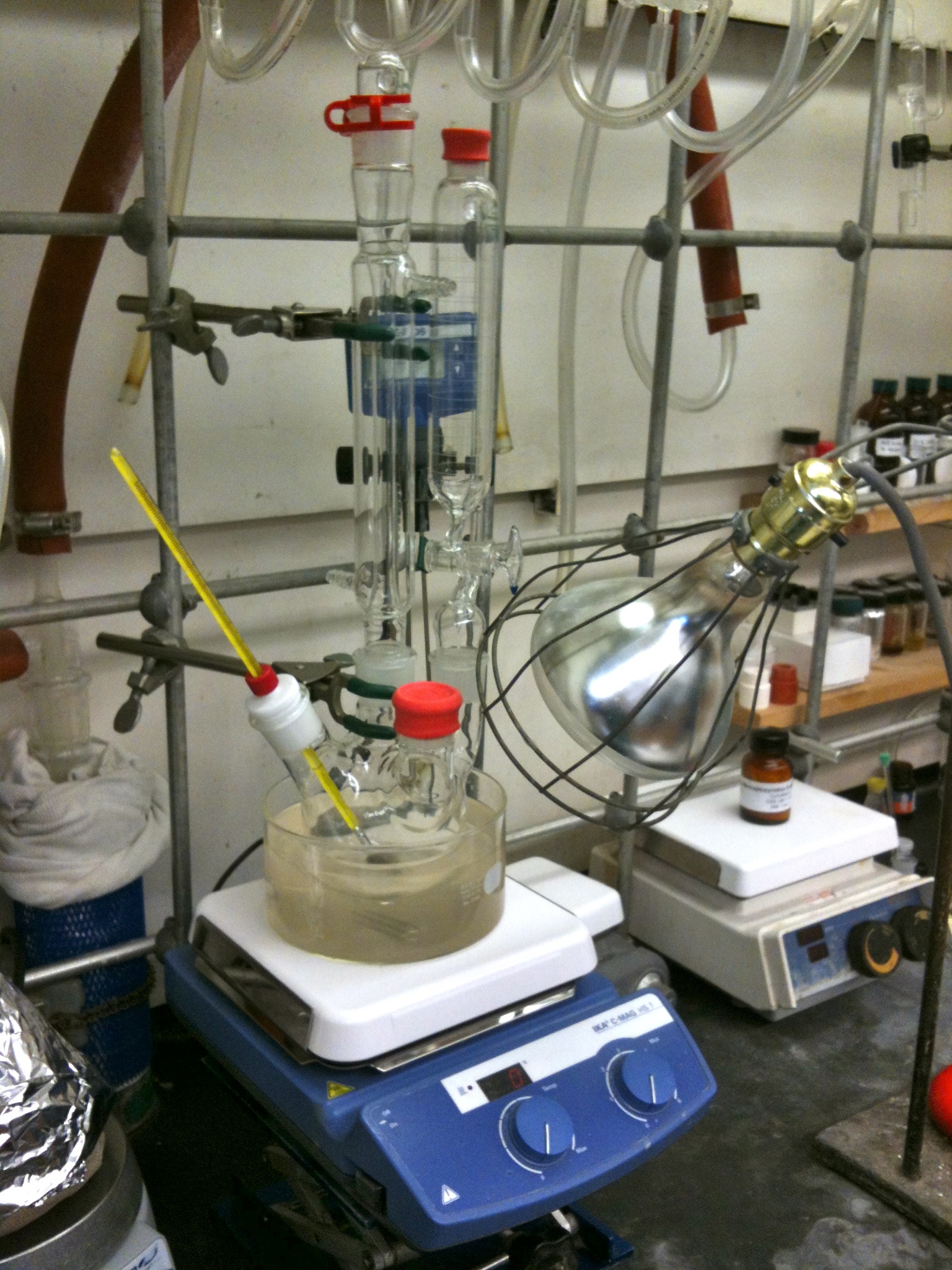

Figure 1. Experimental set-up used in the reaction
6.
The submitters used argon to maintain an inert atmosphere.
7.
The submitters performed the addition over 40 min (1.5 mL/min) with concomitant irradiation from a tungsten lamp (240V, 500W).
The reaction mixture turned bright yellow upon addition of the palmitoyl chloride, with the color fading as the evolution of carbon dioxide was observed.
After 1 h the bright yellow coloration faded to an orange/brown color.
8.
The progress of the reaction was monitored by TLC analysis on silica gel with 15% EtOAc-hexanes as the eluent and visualization with
p-anisaldehyde.
The acid chloride starting material has R
f = 0.53 (white), the alkane product is not observable by TLC.
9.
The submitters obtained silica gel (particle size 0.040 - 0.063 mm) 230-400 ASTM mesh from Advanced Molecular Technologies.
The checkers obtained silica gel (particle size 0.04 - 0.063 mm) 230-400 mesh from Silicycle.
10.
The submitters diluted the brown residue with CH
2Cl
2 (10 mL), which was charged on plug (9 cm ø) of 250 g of silica gel, eluting with petroleum ether 40 - 60 °C (1500 mL) which was obtained from Merck and purified by distillation prior to use.
After removal of the solvent by rotary evaporation (40 °C, 300 mmHg) a yellow oil was obtained.
This oil was further purified by bulb-to-bulb distillation using a Büchi Glass Oven B-580 Kugelrohr at 93 °C (0.9 mmHg) whose receiving bulb was cooled with dry ice to yield 5.7 g (81%) of pentadecane as a colorless oil.
11.
When the reaction was carried out on a 27.9 mmol scale the checkers obtained a yield of 83%.
12.
The product exhibits the following properties: ν
max/cm
−1 (neat) 2956, 2923, 2853;
1H NMR
pdf(400 MHz, CDCl
3) δ
H 1.26 (26H, br s), 0.88 (6H, t,
J = 6.8 Hz);
13C NMR
pdf(100 MHz, CDCl
3) d
C 32.1, 29.9, 29.8, 29.5, 22.9, 14.3;
m/z GC/MS 212; Anal.
calcd.
for C
15H
32: C, 84.82; H, 15.18; found: C, 84.70; H, 14.91.
Handling and Disposal of Hazardous Chemicals
The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
The Barton decarboxylation is a radical reaction in which a carboxylic acid is first converted to a thiohydroxamate ester, which upon heating (optionally in the presence of a radical initiator or light) undergoes homolytic cleavage, followed by loss of carbon dioxide (Scheme 1).
The resulting aliphatic radicals can then be trapped by a variety of reagents leading to new functionality.
Using this reaction it is possible to remove the carboxylic acid group from aliphatic carboxylic acids and replace it with other functional groups.
3Scheme 1. Barton radical decarboxylation reaction.
The intermediate thiohydroxamate ester can be obtained by reacting an acid chloride and the sodium salt of 1-hydroxypyridine-2(1
H)-thione (5) as in this report, or directly from the carboxylic acid using
N,N'-dicyclohexylcarbodiimide (DCC) and similar coupling methods.
4 We found that the acid chloride method was generally more reliable.
The acid chlorides can be prepared by the action of oxalyl chloride or thionyl chloride on the carboxylic acid.
5Reductive decarboxylation (
Scheme 1, × = H) is an important subset of the Barton procedure, which ultimately results in replacing the carboxylic acid function with a hydrogen atom.
6 Under this protocol, reductive decarboxylation is accomplished by mild photochemical decomposition of the corresponding thiohydroxamate ester, in the presence of a suitable hydrogen donor (H-donor), originally tributyltin hydride or tert-butylthiol.
We recently discovered that it is more convenient, safer, and less expensive to use chloroform as both solvent and H-donor in these reactions.
7 Aromatic carboxylic acids do not undergo this reaction.
The procedure described herein is applicable to aliphatic carboxylic acids with the best results generally from primary and secondary acids (
Table 1).
The reductive decarboxylation product of especially hindered tertiary carboxylic acids using this method may sometimes be contaminated with the corresponding alkyl chloride, which arises by competing chlorine atom transfer from chloroform.
In these cases, the addition of a stronger H-donor, such as tert-butyl thiol, is recommended.

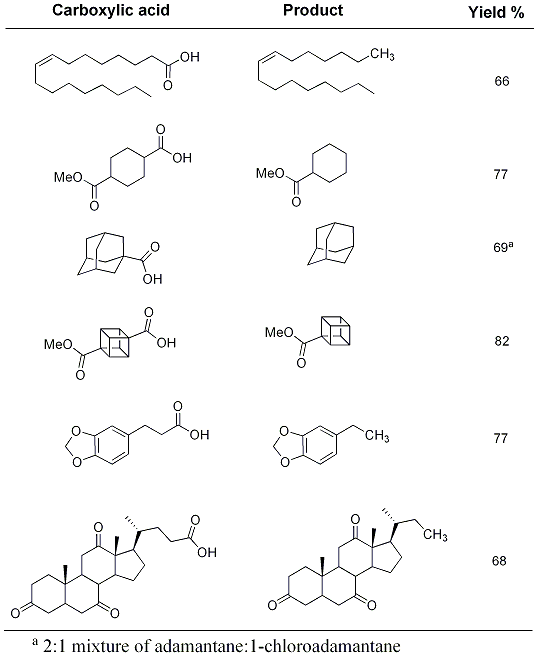

Table 1. Examples of Barton reductive decarboxylations
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
1-Hydroxypyridine-2(1H)-thione, sodium salt: 2(1H)-Pyridinethione, 1-hydroxy-, sodium salt; (3811-73-2)
4-N,N-Dimethylaminopyridine: 4-Pyridinamine, N,N-dimethyl-; (1122-58-3)
Palmitoyl chloride: Hexadecanoyl chloride
; (112-67-4)
 |
